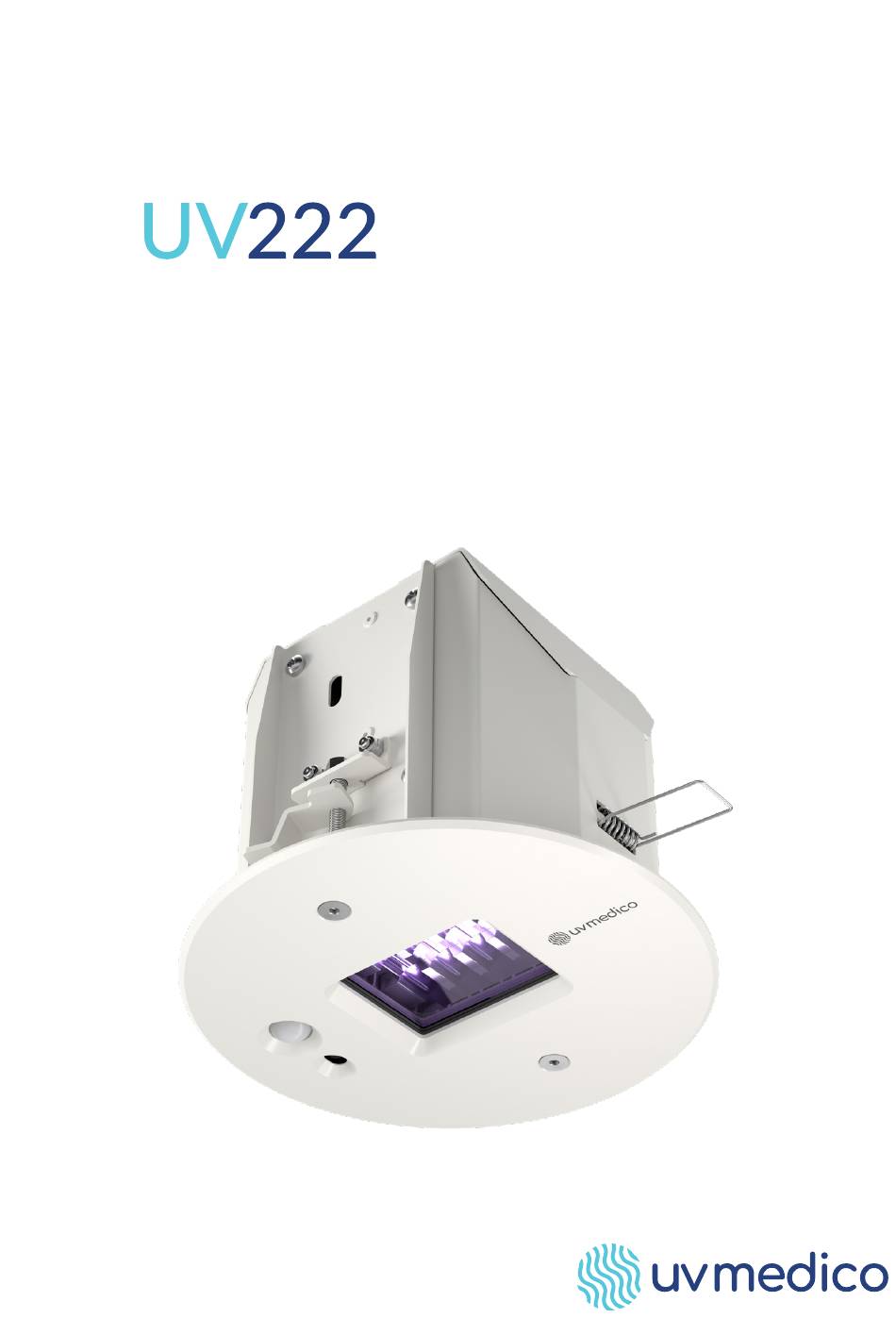

  • Page 1 Downlight (Filtered Far UV-C) Technical & Installation Manual...
  • Page 2 CAUTION UV LIGHT THE PRODUCT AS DESCRIBED HEREIN CONTAINS COMPONENTS THAT EMIT FILTERED FAR UV LIGHT. DO NOT USE THE PRODUCT BEFORE CAREFULLY READING THIS MANUAL. ALWAYS KEEP THIS MANUAL WITH THE PRODUCT AND CONSULT IT REGULARLY. ATTENTION CAUTION Lumière UV émise UV Light emitted par cet appareil.

  • Page 3: Table Of Contents

    For information about specific adjustments, maintenance or repair jobs which are not dealt with in this manual, please contact your Product supplier or UV Medico A/S. If you suspect that the Product is damaged or detect a potential or actual danger when using the Product, immediately discontinue use of the Product and contact your supplier of the Product.

  • Page 4: Basic Safety Instructions

    1.1. BASIC SAFETY INSTRUCTIONS To minimise the risk of injury, the following basic safety precautions should be observed with each use of the Product: Do not remove the sticker on the front of the unit until the Product is commissioned by a qualified installer.

  • Page 5: Disclaimers

    Product or personal injury caused by non-observance by the user of the safety instruc- tions in the Manual or the applicable laws. As such UV Medico A/S shall among others not be liable for any damage or injury if the Product is used contrary to or for purposes other than its intended use, is installed, used, maintained or repaired negligently or contrary to the instructions mentioned in the Manual or on the Product;...

  • Page 6: Modification

    It is strictly forbidden to override these safety devices or to use the Product if the safety features are not fully present or disfunction. The safety features should be regularly checked for their proper functioning, and if required, be immediately repaired or replaced. The pictograms, warnings and instructions attached to the Product are part of its safety features.

  • Page 7: Construction

    CONSTRUCTION 3 mm Ø 178 mm [0.1 [7.0 Ø 150 mm [5.9 9 mm 220 mm [8.7 [0.4 141 mm 99 mm [5.5 [3.9 141 mm [5.5...

  • Page 8: Installation Of The Product

    INSTALLATION OF THE PRODUCT Perform the following steps for the installation of the Product. Outside every room where Far UV-C light is used, there must be information signs in clear line of sight. Installation must be done according to the local regulations by a qualified installer. 6.1.

  • Page 9: Product Installation

    3 mm Ø 178 mm [0.1 [7.0 6.3. Product installation Ø 150 mm [5.9 The unit must be inserted on a suspended ceiling or similar surface that can fit the unit and support its weight, preferably near electrical wires with grounding. The diametre of the opening should be between 150 and 155 mm.

  • Page 10: Understanding The Unit's Operation

    22,0 mJ/cm² for an 8 h day, 40 h work week exposure to UV radiation at 222 nm. (UV Medico A/S expects positive changes into the ACGIH that will result in a higher expo- sure than allowed at this moment. If this changes, UV Medico A/S will update the software of the unit to align with the new threshold of exposure).
  • Page 11 If the Product was already installed, you can read out the setting of the unit by press- ing “Get” all settings will be shown in the application. Check if the firmware version is the latest. If not, click on “Update FW”.
  • Page 12 Select the correct version and click on “Open” to upload it. Then confirm by clicking “Yes.” When finished installing, the firmware should be up to date. UV222 Technical & Installation Manual...
  • Page 13 Set the correct hour by pressing “Set Time and Zone”. The date and hour are now the same as your computer. Define the timing of the use (duty cycle) of the room where the Product is installed: “On time”: Time from which the room will be occupied by people. “Off time”: Time from which the room will not be occupied.
  • Page 14 Add the pre and post cleaning cycle, if desired. The unit will then light up before and after the duty cycle. Change the intensity of the LED signal to the desired output. Select mode. • Normal: The Product will follow the settings as provided. •...
  • Page 15 Add 3 distances: a. “Distance to eye height”: Closest distance of the unit to the eye of a human (even with people walking around). b. “Safety distance”: Closest distance people are allowed to get to the lamp before it turns itself off. The unit will turn itself back on after 10 sec. when/if the safety distance is regained.
  • Page 16 10) Save setup into template by pressing “Save Setup”. Name the template. This can be recalled whenever you have similar settings. 11) Press “Set” to upload the settings into the Product. Once this information is saved and programmed into the unit, it is ready to test/start up. UV222 Technical &...
  • Page 17 If the information programmed into the Product when installed is different than the use/occupancy of the room, UV Medico A/S cannot be held liable for any injuries or misuse of these units. If the room changes of use, occupancy or any change that has an influence on the risks of...
  • Page 18 11) Testing the Product. Right click on the photo of the Far UV-C unit and a pop up of the test mode will show Here you can quickly light up the Product and test the signal LED. , it will turn on the Product with no safety. This When you activate the 222 LightSource is only to test the source, (the box “Enable“...

  • Page 19: Understanding The Function Of The Signal Led

    6.6. Understanding the function of the signal LED MEANING No light No power. Red continuous Error: no feedback from the Product light source. Cyan continuous Pre disinfection / after disinfection light source on. Magenta continuous Light source is on. Blue continuous In-cycle UV off.

  • Page 20: Product Failure

    White flash Power cycle the unit. Does not hold settings Replace battery. If the failure is unsolved or recurring, please return the unit to an official UV Medico dealer/ REPAIRS). service centre for repair or replacement (see point CLEANING AND MAINTENANCE Clean the external surfaces with a soft cloth and non-aggressive cleaning agents only.

  • Page 21: Light Source Replacement

    2-year warranty is given from invoice date regardless on the hours the unit is used. UV222™ and its logo are registered trademarks of UV Medico A/S. All rights reserved. No part of this manual may be copied or published by means of printing, photocopying, microfilm or otherwise without the prior written consent of the manufacturer.

  • Page 22: Notes

    NOTES: UV222 Technical & Installation Manual...
  • Page 24 UV Medico A/S Søren Frichs Vej 40E 8230 Åbyhøj Denmark +45 20 90 71 30 info@uvmedico.com www.uvmedico.com...
