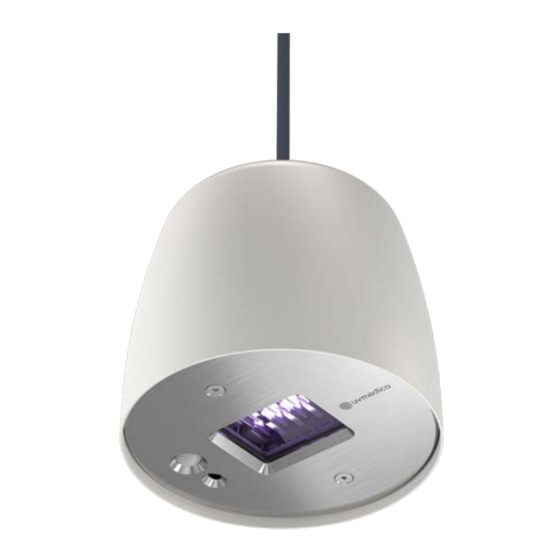

UV MEDICO UV222 Pendant Technical And Installation Manual
Filtered far uv-c
Hide thumbs
Also See for UV222 Pendant:
- Installation manual (24 pages) ,
- Technical and installation manual (24 pages) ,
- Technical manual (13 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for UV MEDICO UV222 Pendant
Summary of Contents for UV MEDICO UV222 Pendant

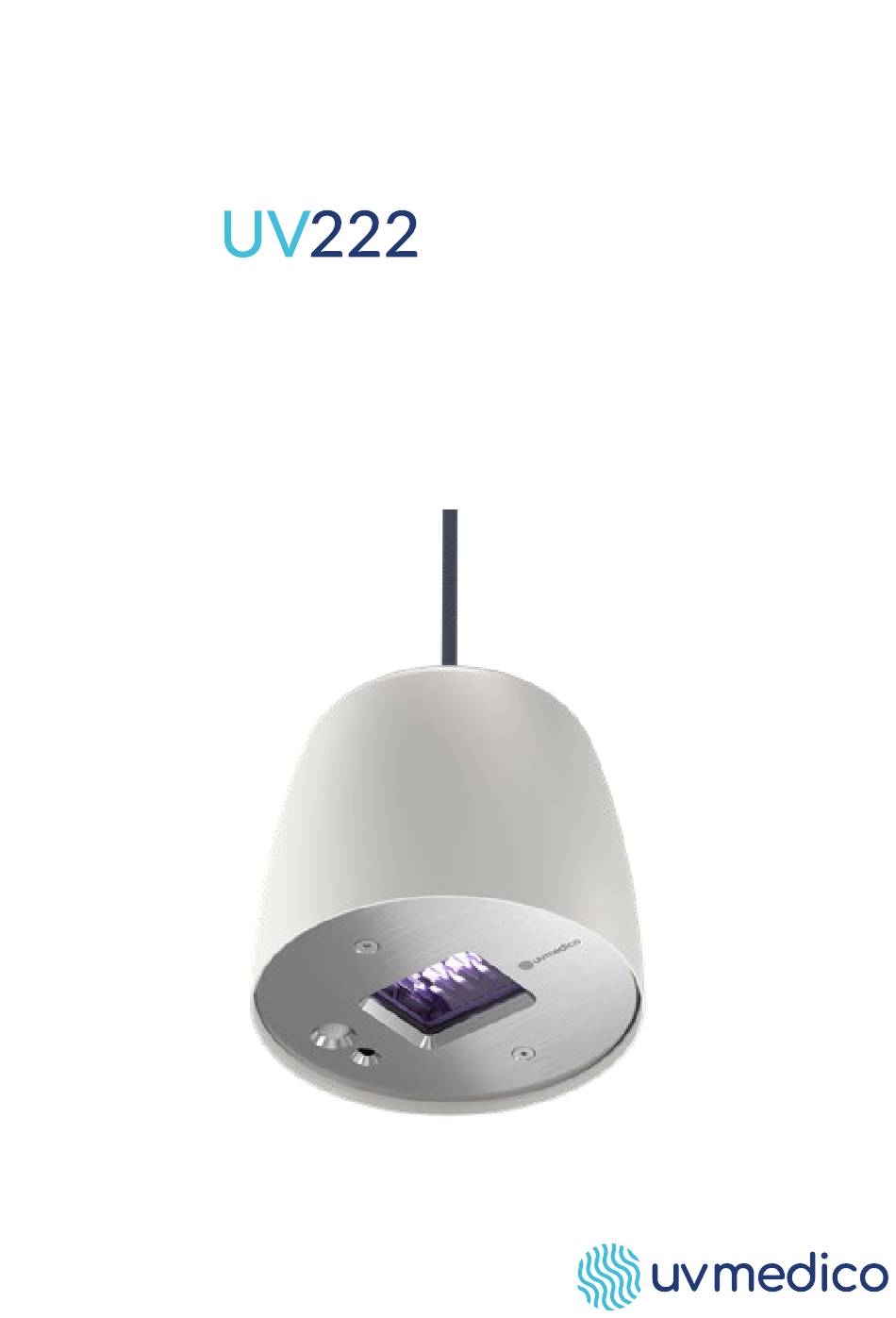

- Page 1 Pendant (Filtered Far UV-C) Technical & Installation Manual...
- Page 2 ALWAYS KEEP THIS MANUAL WITH THE PRODUCT AND CONSULT IT REGULARLY. ATTENTION CAUTION Lumière UV émise UV Light emitted par cet appareil. from this device. Évitez de regarder Avoid looking directly directement la at the light. lampe en cours d’utilisation. IEC/TR 62471-2:2009 UV222 Pendant Technical & Installation Manual...
-
Page 3: Table Of Contents
For information about specific adjustments, maintenance or repair jobs which are not dealt with in this manual, please contact your Product supplier or UV Medico A/S. If you suspect that the Product is damaged or detect a potential or actual danger when using the Product, immediately discontinue use of the Product and contact your supplier of the Product. -
Page 4: Basic Safety Instructions
Do not use the unit for purposes other than disinfection. The unit is designed for disinfection. Using it for any other purpose may result in unexpect- ed accidents. Avoid looking directly at the light. UV222 Pendant Technical & Installation Manual... -
Page 5: Disclaimers
Product or personal injury caused by non-observance by the user of the safety instruc- tions in the Manual or the applicable laws. As such UV Medico A/S shall among others not be liable for any damage or injury if the Product is used contrary to or for purposes other than its intended use, is installed, used, maintained or repaired negligently or contrary to the instructions mentioned in the Manual or on the Product;... -
Page 6: Modification
Ø 178 mm x 129 mm (Ø 7 in x 5 in) Power lead 3 x 0.75 mm² (18AWG) Operating temperature 0 to +50°C (32° to 122° F) Ambient humidity 5-90% RH Non condensing UV222 Pendant Technical & Installation Manual... -
Page 7: Construction
CONSTRUCTION Ø 182 mm [7.2 172 mm [6.8 160 mm [6.3... -
Page 8: Installation Of The Product
CAUTION: Do not touch the glass of the lamp without gloves. Doing so may result in damage to the lamp. Oil from fingerprints will permanently etch the glass of the lamp and weaken the structure. UV222 Pendant Technical & Installation Manual... -
Page 9: Product Installation
22,0 mJ/cm² for an 8 h day, 40 h work week exposure to UV radiation at 222 nm. (UV Medico A/S expects positive changes into the ACGIH that will result in a higher expo- sure than allowed at this moment. If this changes, UV Medico A/S will update the software of the unit to align with the new threshold of exposure). - Page 10 USB cable. Connect your computer to the unit and it will show up automatically on the application. When the app is launched, following steps needs to be taken: UV222 Pendant Technical & Installation Manual...
- Page 11 If the Product was already installed, you can read out the setting of the unit by press- ing “Get” all settings will be shown in the application. Check if the firmware version is the latest. If not, click on “Update FW”.
- Page 12 Select the correct version and click on “Open” to upload it. Then confirm by clicking “Yes.” When finished installing, the firmware should be up to date. UV222 Pendant Technical & Installation Manual...
- Page 13 Set the correct hour by pressing “Set Time and Zone”. The date and hour are now the same as your computer. Define the timing of the use (duty cycle) of the room where the Product is installed: • “On time”: Time from which the room will be occupied by people. •...
- Page 14 The “Pir active time” option allows to set how many minutes the cycle will run after movement is detected. • “Always on, only ‘Safety off distance’ is enabled”: The Product will only turn off when an object gets closer than the selected safety off distance. UV222 Pendant Technical & Installation Manual...
- Page 15 Add 3 distances: a. “Distance to eye height”: Closest distance of the unit to the eye of a human (even with people walking around). b. “Safety distance”: Closest distance people are allowed to get to the lamp before it turns itself off. The unit will turn itself back on after 10 sec. when/if the safety distance is regained.
- Page 16 Name the template. This can be recalled whenever you have similar settings. 11) Press “Set” to upload the settings into the Product. Once this information is saved and programmed into the unit, it is ready to test/start up. UV222 Pendant Technical & Installation Manual...
- Page 17 If the information programmed into the Product when installed is different than the use/ occupancy of the room, UV Medico A/S cannot be held liable for any injuries or misuse of these units. If the room changes of use, occupancy or any change that has an influence on the risks of...
- Page 18 • “Normal Mode”: Work as the Product is programmed. • “LED Off”: Turns the LED off. • “LED RGBW Off”: LED test cycle. When you untick the “Enable” box it goes back to normal configuration/use. UV222 Pendant Technical & Installation Manual...
-
Page 19: Understanding The Function Of The Signal Led
6.6. Understanding the function of the signal LED MEANING No light No power. Red continuous Error: no feedback from the Product light source. Cyan continuous Pre disinfection / after disinfection light source on. Magenta continuous Light source is on. Blue continuous In-cycle UV off. -
Page 20: Product Failure
White flash Power cycle the unit. Does not hold settings Replace battery. If the failure is unsolved or recurring, please return the unit to an official UV Medico dealer/ REPAIRS). service centre for repair or replacement (see point CLEANING AND MAINTENANCE Clean the external surfaces with a soft cloth and non-aggressive cleaning agents only. -
Page 21: Light Source Replacement
2-year warranty is given from invoice date regardless on the hours the unit is used. UV222™ and its logo are registered trademarks of UV Medico A/S. All rights reserved. No part of this manual may be copied or published by means of printing, photocopying, microfilm or otherwise without the prior written consent of the manufacturer. -
Page 22: Notes
NOTES: UV222 Pendant Technical & Installation Manual... - Page 24 UV Medico A/S Søren Frichs Vej 40E 8230 Åbyhøj Denmark +45 20 90 71 30 info@uvmedico.com www.uvmedico.com...
