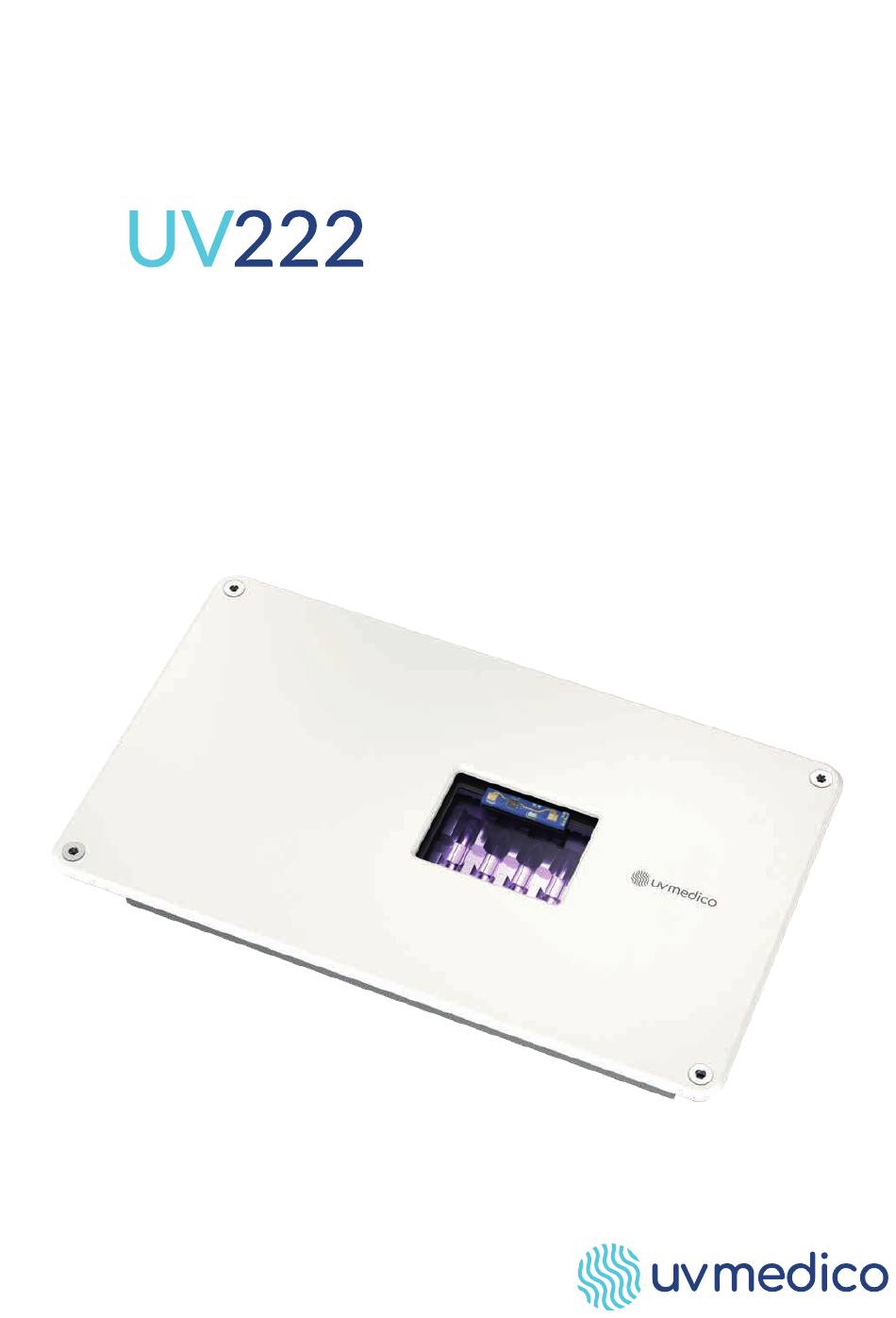

- Page 1 Ambulance (Filtered Far-UVC) Technical & Installation Manual...
-
Page 2: Table Of Contents
For information about specific adjustments, maintenance or repair jobs which are not dealt d’utilisation. with in this manual, please contact your Product supplier or UV Medico A/S. IEC/TR 62471-2:2009 If you suspect that the Product is damaged or detect a potential or actual danger when using the Product, immediately discontinue use of the Product and contact your supplier of the Product. -
Page 3: Basic Safety Instructions
Product or personal injury caused by non-observance by the user of the safety instruc- 1.1. BASIC SAFETY INSTRUCTIONS tions in the Manual or the applicable laws. As such UV Medico A/S shall among others not be liable for any damage or injury if the Product is used contrary to or for purposes other... -
Page 4: Modifications
273 x 160 x 48 mm (10.75 x 6.30 x 1.89 in) [2.00 in] Power lead (PVC) 3 x 0.75 mm² (18 AWG) Operating temperature 0 to +50°C (32° to 122° F) Ambient humidity 5–90% RH Non condensing UV222 Ambulance Technical & Installation Manual... -
Page 5: Installation Of The Product
CAUTION: Do not touch the glass of the lamp without gloves. Doing so may result in damage to the lamp. Oil from fingerprints will permanently etch the glass of the lamp and weaken the structure. UV222 Ambulance Technical & Installation Manual... -
Page 6: Changing The Power Cable
22.0 mJ/cm² for an 8 h day, 40 h work week exposure to UV radiation at 222 nm. (UV Medico A/S expects positive changes into the ACGIH that will result in a higher expo- Standard wiring: Phase / Hot + sure than allowed at this moment. - Page 7 Check if firmware version is the latest. If not, press “Update FW” button. Set the correct hour by pressing “Set Time and Zone”. The date and hour are now the same as your computer. UV222 Ambulance Technical & Installation Manual...
- Page 8 Add the “Maximum Occupant Time”: how long the room is occupied during the duty cycle. Add the pre and post cleaning cycle, if desired. The unit will then light up before and after the duty cycle. UV222 Ambulance Technical & Installation Manual...
- Page 9 If the information programmed into the Product when installed is different than the use/ occupancy of the room, UV Medico A/S cannot be held liable for any injuries or misuse of these units. If there are changes in the use, occupancy or any other alterations that have an influence on the risks of exposure, the installer needs to be contacted so the Product is repro- grammed.
-
Page 10: Understanding The Function Of The Signal Led
The Product has an internal battery that can be replaced if broken or empty. Remove the backplate as explained on 6.4 Changing the power cable. You will see the battery (3V CR2032). Replace only with the same battery type to avoid damage. Battery 3V CR2032 UV222 Ambulance Technical & Installation Manual... -
Page 11: Product Failure
Replace battery. 2-year warranty is given from invoice date regardless on the hours the unit is used. If the failure is unsolved or recurring, please return the unit to an official UV Medico dealer/ REPAIRS). service center for repair or replacement (see point CLEANING AND MAINTENANCE Clean the external surfaces with a soft cloth and non-aggressive cleaning agents only. -
Page 12: Notes
NOTES: UV222 Ambulance Technical & Installation Manual... - Page 13 UV Medico A/S Søren Frichs Vej 50 8230 Åbyhøj Denmark +45 20 90 71 30 info@uvmedico.com www.uvmedico.com...
