UV MEDICO UV222 Industrial Technical And Installation Manual

Hide thumbs Also See for UV222 Industrial:
Table of Contents

Advertisement

Quick Links

Download this manual

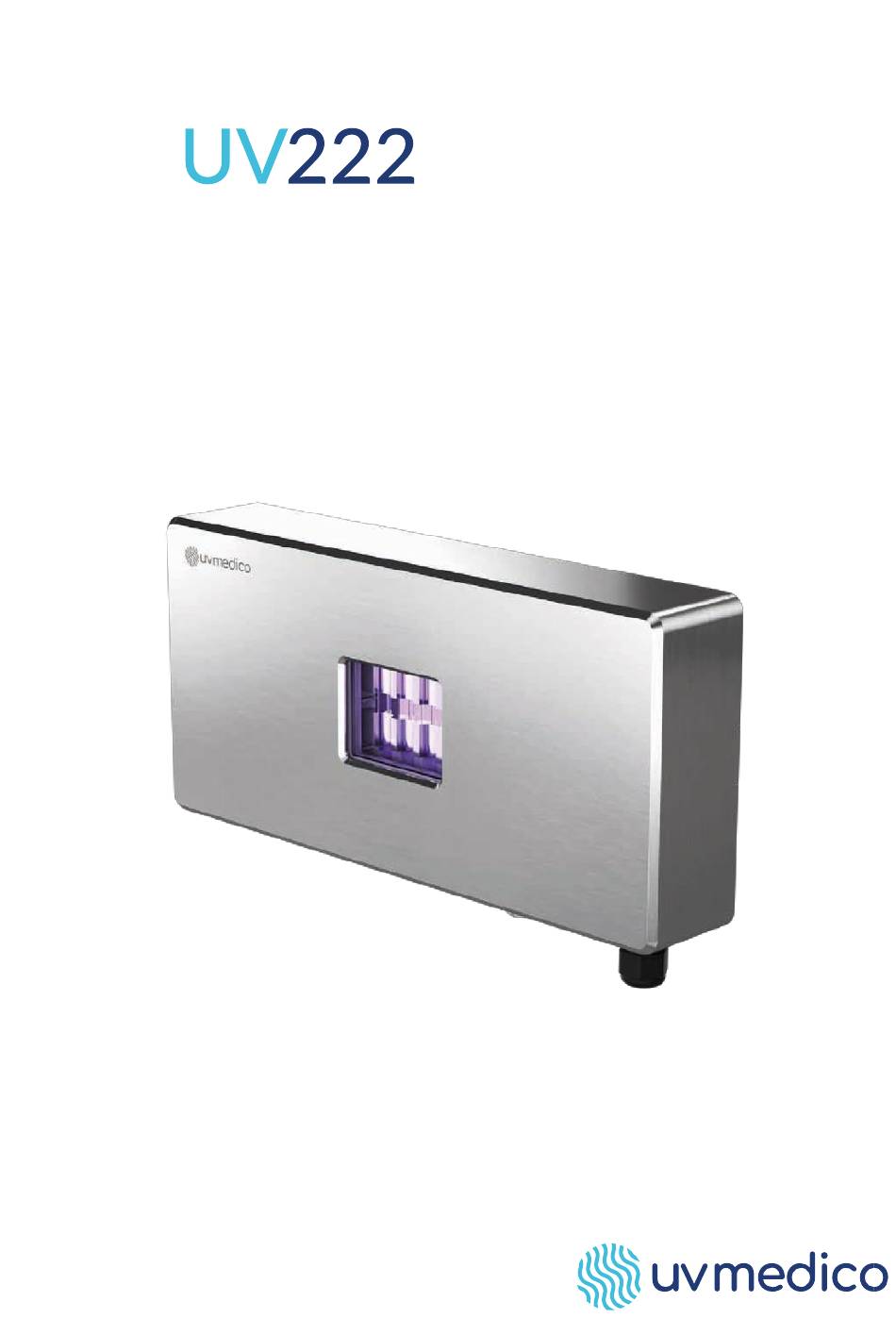

Industrial
(Filtered Far UV-C)
Technical & Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UV222 Industrial and is the answer not in the manual?

Questions and answers

Related Manuals for UV MEDICO UV222 Industrial

Summary of Contents for UV MEDICO UV222 Industrial

  • Page 1 Industrial (Filtered Far UV-C) Technical & Installation Manual...

  • Page 2: Table Of Contents

    For information about specific adjustments, maintenance or repair jobs which are not dealt with in this manual, please contact your Product supplier or UV Medico A/S. If you suspect that the Product is damaged or detect a potential or actual danger when using the Product, immediately discontinue use of the Product and contact your supplier of the Product.

  • Page 3: Disclaimers

    Avoid looking directly at the light. DISCLAIMERS UV Medico A/S with registered office at Søren Frichs Vej 50, 8230 Åbyhøj - Denmark, or any of its affiliates, does not accept any liability for material damage, including damage to the Product or personal injury caused by non-observance by the user of the safety instructions in 1.1.

  • Page 4: Modification

    300 x 168 x 113 mm (11.8 x 6.6 x 4.4 in) Power lead (rubber) 3 x 0.75 mm² / 10 m (18 AWG / 32.8 ft) Operating temperature -10° to +50° C (14° to 122° F) Ambient humidity 5-90% RH UV222 Industrial Technical & Installation Manual...

  • Page 5: General Characteristics And Technical Specifications

    GENERAL CHARACTERISTICS AND TECHNICAL SPECIFICATIONS UV222 Industrial has an IP66 rating, and is designed to emit Far UV-C radiation with a wavelength of 222 nm, in order to eliminate viruses, bacteria, fungi, and other pathogens, from air and surfaces. The unit is designed for 17,500+ hours of efficient operation. Products used longer than this, may no longer emit the required level of ultraviolet radiation to ensure the desired germicidal efficacy on harmful microorganisms.

  • Page 6: Change Of The Power Cable

    The maximum permissible UV-C exposure shall not exceed the ACGIH TLV and NIOSH REL of 22.0 mJ/cm² for an 8 h day, 40 h work week exposure to UV radiation at 222 nm. (UV Medico A/S Far UV-C lamps must be operated continuously from a separate, dedicated, 85-305 V 50/60Hz expects positive changes into the ACGIH that will result in a higher exposure than allowed at this power lead.

  • Page 7: Setting Up The Product

    Product before the beginning of this installation. 6.6. Setting up the Product The installer will need a Microsoft Windows computer with the UV Medico application installed. Contact your distributor to get access to the latest software and firmware for the Product.
  • Page 8 Add the “Maximum Occupant Time”: how long the room is occupied during the duty cycle. The date and hour are now the same as your computer. Define the timing of the use (duty cycle) of the room where the Product is installed: UV222 Industrial Technical & Installation Manual...
  • Page 9 • "Only on when movement”: The Product only will turn on when the radar detects movement. The “Pir active time” option allows to set how many minutes the cycle will run after movement is detected. UV222 Industrial Technical & Installation Manual...
  • Page 10 If the information programmed into the Product when installed is different than the use/occupancy of the room, UV Medico A/S cannot be held liable for any injuries or misuse of these units. If there are changes in the use, occupancy or any other altenrations that has an influence on the risks of exposure, the installer needs to be contacted so the Product is reprogrammed.

  • Page 11: Understanding The Function Of The Signal Led

    Pre disinfection / after disinfection per seen movement. Red-blue-green (loop) Recommended change of Far UV-C light source. If the LED is red, contact your local UV Medico distributor. 6.8. Replacements The Product has an internal battery that can be replaced if broken or empty.

  • Page 12: Product Failure

    White flash Power cycle the unit. Does not hold settings Replace battery. If the failure is unsolved or recurring, please return the unit to an official UV Medico dealer/ service centre for repair or replacement (see point REPAIRS).

  • Page 13: Cleaning And Maintenance

    Contact your supplier/installer for replacement. The unit has no user-serviceable parts. 10. REPAIRS If the Product is damaged, malfunctions, or for other specific inquiries, please contact your authorised UV Medico distributor. 11. RECYCLING & DISPOSAL Our products can be disassembled into separate materials of four recycling categories for minimal waste: metal, plastic, electronics, and light bulbs.
