UV MEDICO UV222 Technical And Installation Manual
Hide thumbs
Also See for UV222:
- Installation manual (24 pages) ,
- Technical and installation manual (24 pages) ,
- Technical manual (13 pages)
Related Manuals for UV MEDICO UV222
Summary of Contents for UV MEDICO UV222

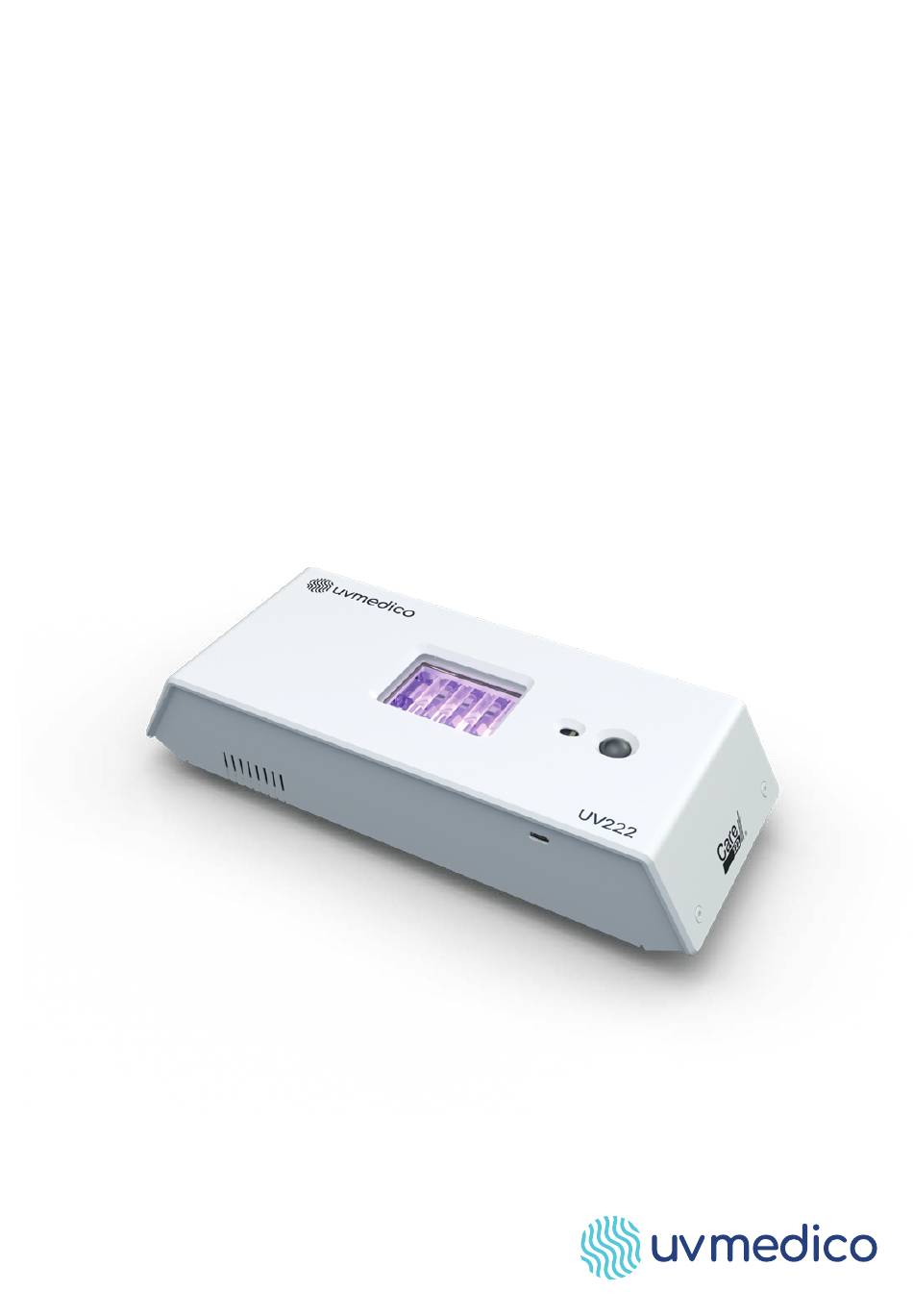

- Page 1 UV222 ™ (Filtered Far-UVC) Technical & Installation Manual (United States) EPA Establishment # 101477-DNK-1...
-
Page 2: Table Of Contents
For information about specific adjustments, maintenance or repair jobs which are not dealt d’utilisation. with in this manual, please contact your Product supplier or UV Medico A/S. IEC/TR 62471-2:2009 If you suspect that the Product is damaged or detect a potential or actual danger when using the Product, immediately discontinue use of the Product and contact your supplier of the Product. -
Page 3: Basic Safety Instructions
Product or personal injury caused by non-observance by the user of the safety instruc- 1.1. BASIC SAFETY INSTRUCTIONS tions in the Manual or the applicable laws. As such UV Medico A/S shall among others not be liable for any damage or injury if the Product is used contrary to or for purposes other... -
Page 4: Modification
303.45 x 120 x 75.25 (11.9 x 4.7 x 3.0 in) Power lead 3 x 0.75 mm² (18 AWG) Operating temperature 0 to +50°C (32° to 122° F) Ambient humidity 5-90% RH Non condensing UV222 Technical & Installation Manual EPA Establishment # 101477-DNK-1 EPA Establishment # 101477-DNK-1... -
Page 5: Installation Of The Product
CAUTION: Do not touch the glass of the lamp without gloves. Doing so may result in damage to the lamp. Oil from fingerprints will permanently etch the glass of the lamp and weaken the structure. UV222 Technical & Installation Manual EPA Establishment # 101477-DNK-1... -
Page 6: Changing The Power Cable
50/60Hz power source. of 22.0 mJ/cm² for an 8 h day, 40 h work week exposure to UV radiation at 222 nm. (UV Medico A/S expects positive changes into the ACGIH that will result in a higher expo- Standard wiring:... - Page 7 If the Product was already installed, you can read out the setting of the unit by press- ing “Get” all settings will be shown in the application. Check if the firmware version is the latest. If not, click on “Update FW”. UV222 Technical & Installation Manual EPA Establishment # 101477-DNK-1...
- Page 8 • “Always on, only ‘Safety off distance’ is enabled”: The Product will only turn off when something gets closer than the selected safety off distance. UV222 Technical & Installation Manual EPA Establishment # 101477-DNK-1 EPA Establishment # 101477-DNK-1...
- Page 9 All measurements are in centimeters. 11) Press “Set” to upload the settings into the Product. Once this information is saved and programmed into the unit, it is ready to test/start up. UV222 Technical & Installation Manual EPA Establishment # 101477-DNK-1...
- Page 10 If the information programmed into the Product when installed is different than the use/ occupancy of the room, UV Medico A/S cannot be held liable for any injuries or misuse of these units. If the room changes of use, occupancy or any change that has an influence on the risks of exposure, the installer needs to be contacted so the Product is reprogrammed.
-
Page 11: Understanding The Function Of The Signal Led
Does not hold settings Replace battery. Flashing red Object too close. If the failure is unsolved or recurring, please return the unit to an official UV Medico dealer/ Flashing magenta Pre cleaning/after cleaning per seen movement. REPAIRS). service center for repair or replacement (see point Red-blue-green (loop) Recommended change of Far-UVC light source. -
Page 12: Light Source Replacement
2-year warranty is given from invoice date regardless on the hours the unit is used. UV222™ and its logo are registered trademarks of UV Medico A/S. All rights reserved. No part of this manual may be copied or published by means of printing, photocopying, microfilm or otherwise without the prior written consent of the manufacturer. -
Page 13: Epa Establishment # 101477-Dnk-1
UV Medico A/S Søren Frichs Vej 50 8230 Åbyhøj Denmark +45 20 90 71 30 info@uvmedico.com www.uvmedico.com EPA Establishment # 101477-DNK-1...
