ipf electronic PRQ80376 Manual

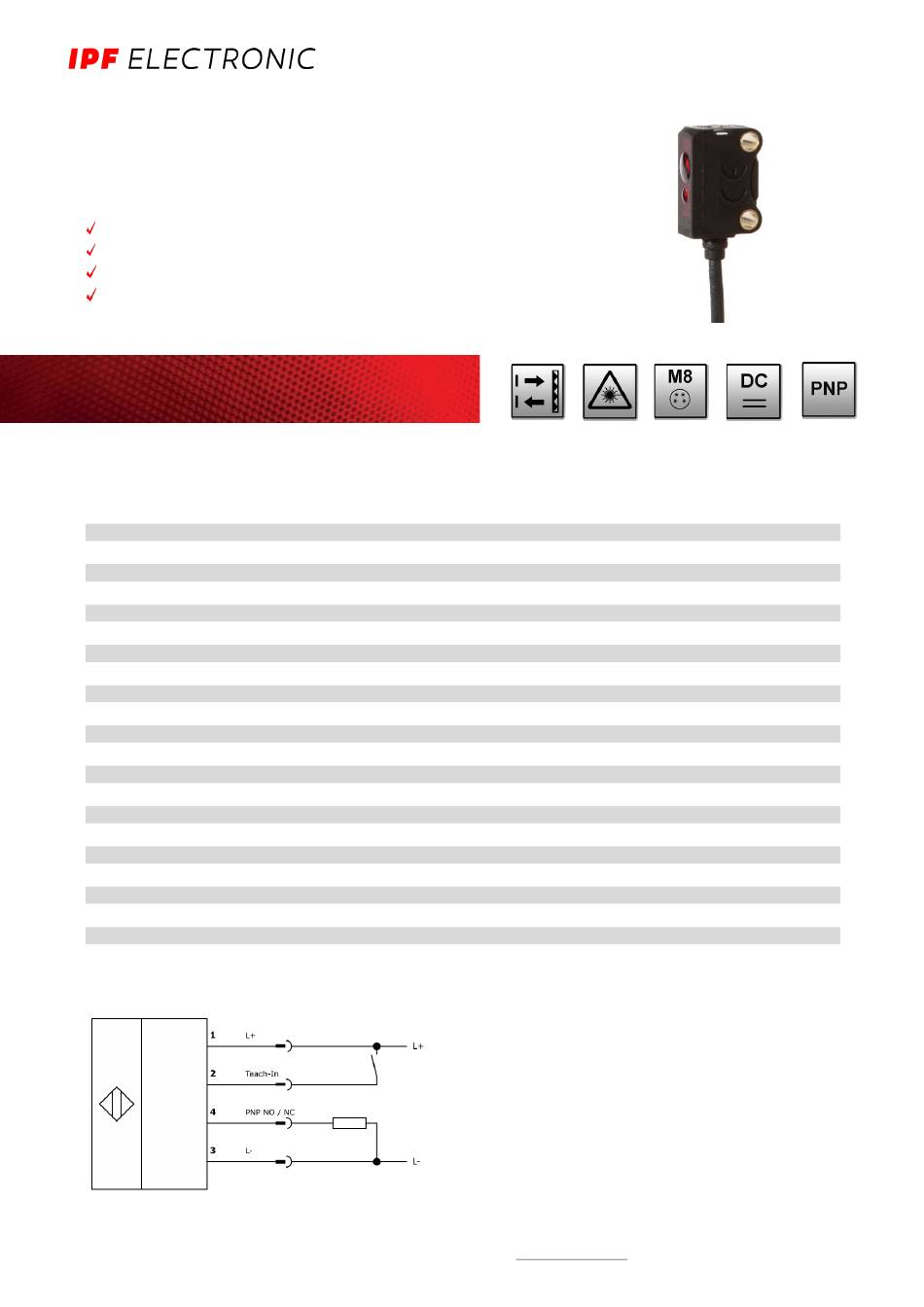

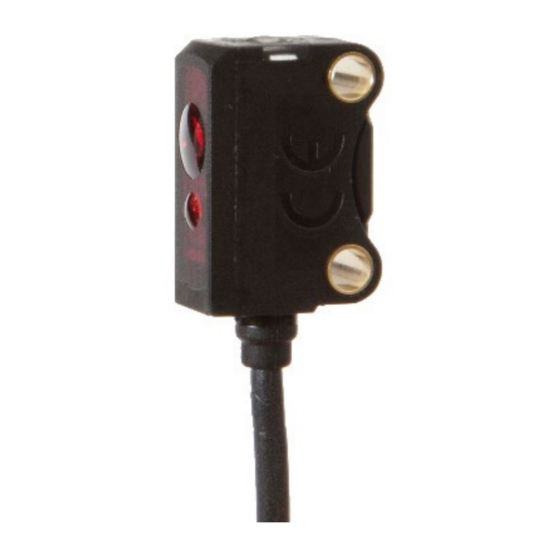

PRQ80376
Laser retro-reflective sensors
Plastic housing, compact design
Setting by teach-in
LED display with setting guide
4-pole
M8-connector
Laser protection class 1
Polarizing filter integrated
Technical data
Range
Operating voltage
Current consumption (without load)
Output current (max. load)
Output signal
Response / release time
Switching frequency
Transmitting element (clocked)
Light spot size
Wavelength
short-circuit proof
reverse polarity protected
Display (operation)
Display (signal)
Material (housing)
Material (front panel)
Protection class (EN60529)
Ambient temperature
Connection
Connection accessories
Mounting accessories (universal holder)
Electrical connection
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel +49 2351 9365-0 • info@ipf-electronic.com • www.ipf-electronic.com
brown
white
black
blue
MANUAL • Subject to alteration! Version: February 2022
100 ... 3,000mm
10 ... 30V DC
≤ 12mA
≤ 50mA
PNP, no/nc
≤ 0.5 ms
1kHz
Laser diode, red light, pulsed
see diagram
655nm
+
+
LED green (LED 1)
LED yellow (LED 2)
Plastic (PUR)
PMMA
IP 67
-20 ... +50°C
M8-connector 4-pole
e.g. VK200375
AY000116
Notes on the connection of the white line (PIN 2)
Connection with L+: Teach-in analog to the respective specifica-
tions for the keystroke
Connection with L-: Teach button locked
No connection: Normal operation
It is recommended to connect the line to a
free terminal during normal operation
068-15017
