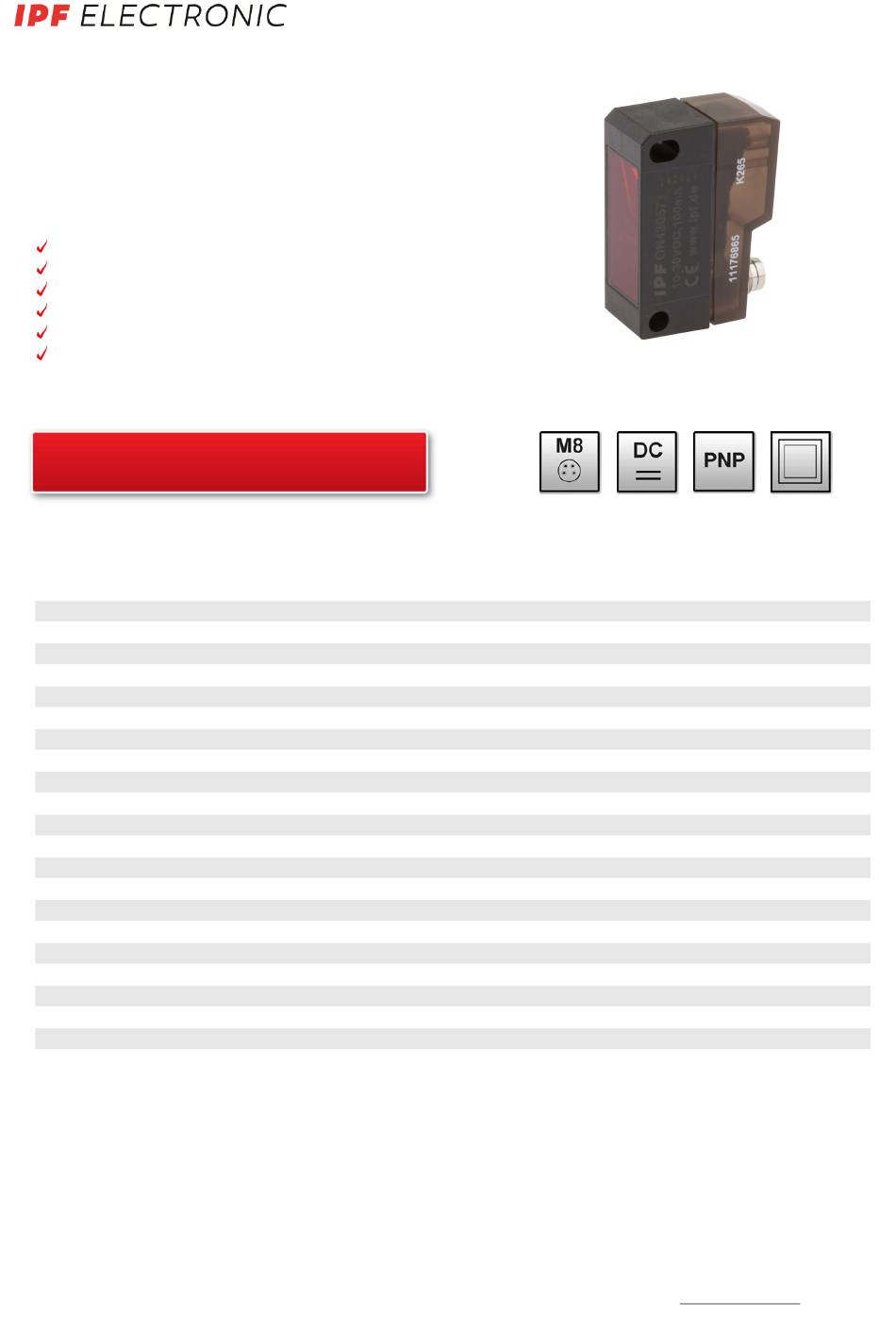

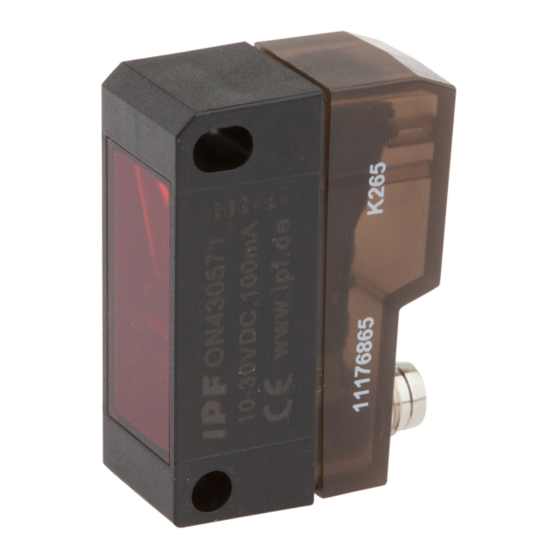

ipf electronic ON430571 Manual

ON430571
operating distance
robust plastic housing, compact design
for detecting transparent objects
Teach in-based setting
LED display for fine adjustment
reduction in the level of reciprocal optical interference
connection with 4-pin M8-connector
new: works like a retro-reflective
sensor - but without a reflector
Technica data l
version
background position (Sde)
detection range (Sa)
operating voltage U
B
current consumption (w/o load)
output current (max. load)
output signal
voltage drop (max. load)
reaction- /decay time
sampling frequency
short-circut protection
reverse polarity protection
display (signal)
display (status) / setting control
transmitting element
light spot size
housing material
front screen material
system of protection
operating temperature
connection
max. tightening torque
description:
These completely new through-beam sensors work according to the principle established with the retro-reflective
sensor. With these devices however, no retro-reflector is used. Any flat surface can be used as a reflector, e.g. the wall
of a piece of machinery.
This is `teached in' as a background item, via the Teach-In line (white wire, PIN 2). Each object that is located between
the sensor and background position is detected. This induces a change to the signal at the switch output. The system
also detects transparent objects. The position and characteristics of the background should not change whilst the
device is in operation. In the case of metallic shiny surfaces, the maximum ran-ge is 800mm. In the case of other
materials, the operating distance is reduced!
ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena
800mm
transparent objects recognition (trays / bottles)
200 ... 800mm on shiny metallic surfaces
100% of Sde
10 ... 30V DC
≤ 35mA
≤ 100mA
push-pull, no/nc
≤ 2V DC
≤ 1.8msec
≤ 270Hz
+
+
green LED
red LED
red LED, 660nm, pulsed
Ø 15mm at 800mm
plastic (ASA-MABS)
PMMA
IP67 (EN 60529)
-30°C ... +60°C
M8-connector, 4-pin
0.8Nm
Tel +49 2351 9365-0 • Fax +49 2351 9365-19
│
MANUAL • Subject to alteration! Version: May 2016
