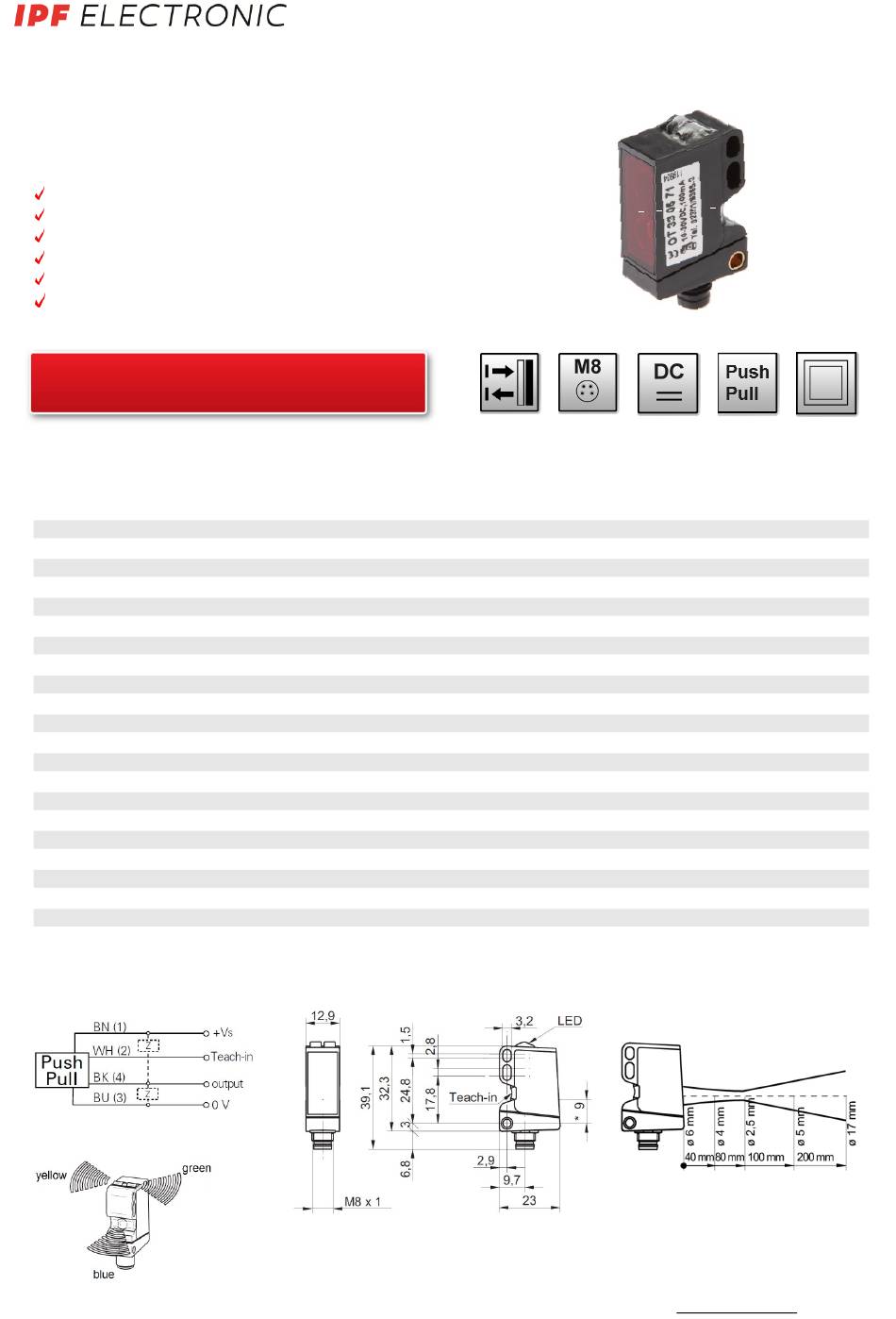

ipf electronic OT330571 Manual

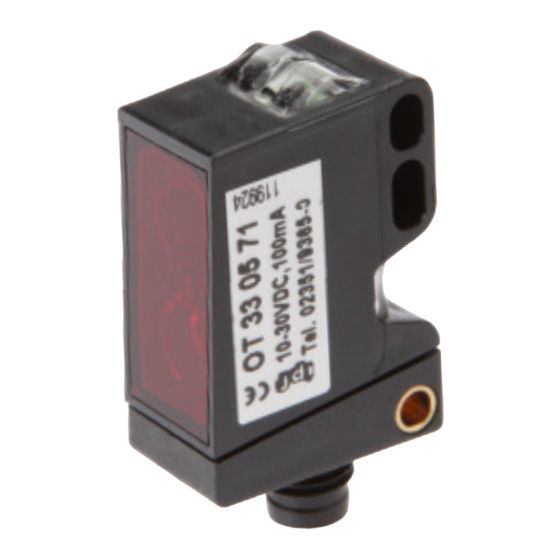

OT330571
operating range 30 ... 200mm
plastic housing, compact design
setting by Teach-In
LED-display with setting control
small beam-spot because of PinPoint-LED
suppression of reciprocal influence
4-pin
M8-connector,
color independent diffuse reflection
sensor with background suppression

technical data

function
sensing range
adjustment range
operating voltage
current consumption (without load)
output current (max. load)
output signal
voltage drop
response time / decay time
sampling frequency
transmitting element (pulsed)
wavelength
short-circuit protection
reverse polarity protection
operating mode display
display (signal) / setting control
display (Teach-In)
interference suppression
housing material
front screen material
degree of protection (EN60529)
operating temperature
Connection
electric connection
colors of LED
ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena
dimensional drawing
● all dimensions in mm *transmitter axis
│ Tel +49 2351 9365-0 • Fax +49 2351 9365-19
MANUAL • Subject to alteration! Version: June 2014
background suppression
30 ... 200mm
30 ... 200mm
10 ... 30V DC
≤ 45mA
≤ 100mA
push-pull, no/nc
≤ 3V DC
≤ 0.5ms
1kHz
LED, red-ligth, punctual
630nm
+
+
LED green
LED yellow
LED blue
+
plastic (ASA, MABS)
PMMA
IP67
-25 ... +60° C
M8-connector, 4-pin
│ info@ipf-electronic.com • www.ipf-electronic.com
light beam form
