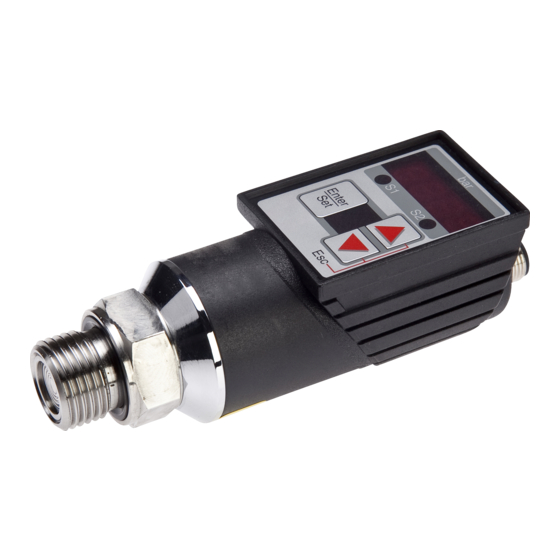

- Page 1 1 manual pressure sensor DW34311x Kalver Str. 25 - 27 Subject to alteration! Tel +49 2351 9365-0 ipf electronic gmbh www.ipf-electronic.com Fax +49 2351 9365-19 info@ipf-electronic.com 58515 Lüdenscheid - Germany...
-
Page 2: Table Of Contents
/ technical data page 17 dimensional drawings / list of articles page 18 Kalver Str. 25 - 27 Tel +49 2351 9365-0 Subject to alteration! ipf electronic gmbh www.ipf-electronic.com 58515 Lüdenscheid - Germany Fax +49 2351 9365-19 info@ipf-electronic.com... -
Page 3: Safety Instructions
Never use these articles in applications where the safety of a person depends on their functionality! Kalver Str. 25 - 27 Subject to alteration! Tel +49 2351 9365-0 www.ipf-electronic.com ipf electronic gmbh 58515 Lüdenscheid - Germany Fax +49 2351 9365-19 info@ipf-electronic.com... -
Page 4: Controls And Indicating Elements
Kalver Str. 25 - 27 Subject to alteration! Tel +49 2351 9365-0 ipf electronic gmbh www.ipf-electronic.com 58515 Lüdenscheid - Germany Fax +49 2351 9365-19 info@ipf-electronic.com... -
Page 5: Description Of The Operating Elements
Pressing the button continuously, the value increases or decreases in „fast-forward“ mode. Pushing the button → the value changes step by step. Kalver Str. 25 - 27 Subject to alteration! Tel +49 2351 9365-0 ipf electronic gmbh www.ipf-electronic.com 58515 Lüdenscheid - Germany Fax +49 2351 9365-19 info@ipf-electronic.com... -
Page 6: Menu / Overview
S2 / hyst. S2 analog output active press enter 5sec advanced functions press enter , short Tel +49 2351 9365-0 Kalver Str. 25 - 27 Subject to alteration! ipf electronic gmbh www.ipf-electronic.com Fax +49 2351 9365-19 58515 Lüdenscheid - Germany info@ipf-electronic.com... - Page 7 + peak-hold standard display → Press ENTER for 5s test-function (no timeout) end of advanced functions Kalver Str. 25 - 27 Tel +49 2351 9365-0 Subject to alteration! ipf electronic gmbh www.ipf-electronic.com Fax +49 2351 9365-19 58515 Lüdenscheid - Germany info@ipf-electronic.com...
-
Page 8: Operation Modes Of The Switching Outputs
• All examples are effective for output 2, if this output is defined as switching output (SP-2) also. Kalver Str. 25 - 27 Subject to alteration! Tel +49 2351 9365-0 ipf electronic gmbh www.ipf-electronic.com 58515 Lüdenscheid - Germany Fax +49 2351 9365-19 info@ipf-electronic.com... -
Page 9: Switch-Point With Release Position
20bar). If SP.1 will be changed, the hysteresis HYS1 remains the same, that is the release position is (SP.1 – 20)bar. Kalver Str. 25 - 27 Tel +49 2351 9365-0 Subject to alteration! ipf electronic gmbh www.ipf-electronic.com Fax +49 2351 9365-19 58515 Lüdenscheid - Germany info@ipf-electronic.com... -
Page 10: Window Function With Switch-Point
If SP.1 changes, the hysteresis will not change, e.g. the release position is (SP.1 – 20)bar. Kalver Str. 25 - 27 Subject to alteration! Tel +49 2351 9365-0 ipf electronic gmbh www.ipf-electronic.com 58515 Lüdenscheid - Germany Fax +49 2351 9365-19 info@ipf-electronic.com... -
Page 11: Operating Modes
The unit now operates with the „new adjusted“ value. Returning to the RUN-Mode: Press the ESC button several times. Kalver Str. 25 - 27 Subject to alteration! Tel +49 2351 9365-0 ipf electronic gmbh www.ipf-electronic.com 58515 Lüdenscheid - Germany Fax +49 2351 9365-19 info@ipf-electronic.com... -
Page 12: Programming
Press the Enter/Set button at least for 5sec to reset the system. Thereafter the unit returns into the RUN Mode automatically. Kalver Str. 25 - 27 Subject to alteration! Tel +49 2351 9365-0 ipf electronic gmbh www.ipf-electronic.com 58515 Lüdenscheid - Germany Fax +49 2351 9365-19 info@ipf-electronic.com... - Page 13 Note: The minimum range between starting point and end point is 20% of the measuring range for the DW34 type. Kalver Str. 25 - 27 Subject to alteration! Tel +49 2351 9365-0 ipf electronic gmbh www.ipf-electronic.com 58515 Lüdenscheid - Germany Fax +49 2351 9365-19 info@ipf-electronic.com...
- Page 14 Temporary display of peak values Rd. Ph rotate display + peak hold standard display Kalver Str. 25 - 27 Tel +49 2351 9365-0 Subject to alteration! ipf electronic gmbh www.ipf-electronic.com 58515 Lüdenscheid - Germany Fax +49 2351 9365-19 info@ipf-electronic.com...
-
Page 15: Mounting And Electrical Connection
NOTE: Use a shielded cable socket (e.g. VK205321), in order to avoid interfer- ences. Kalver Str. 25 - 27 Tel +49 2351 9365-0 Subject to alteration! ipf electronic gmbh www.ipf-electronic.com Fax +49 2351 9365-19 58515 Lüdenscheid - Germany info@ipf-electronic.com... -
Page 16: Initial Operation / Operation
20...4mA) was set. The error signal (< 3.6mA or >22mA) can be set in menu item FOuA. Kalver Str. 25 - 27 Subject to alteration! Tel +49 2351 9365-0 ipf electronic gmbh www.ipf-electronic.com 58515 Lüdenscheid - Germany Fax +49 2351 9365-19 info@ipf-electronic.com... -
Page 17: Factory Settings / Technical Data
M12 connector 4-pin optical interface 9600 Baus, via oprical adapter at USB-Port Kalver Str. 25 - 27 Subject to alteration! Tel +49 2351 9365-0 ipf electronic gmbh www.ipf-electronic.com 58515 Lüdenscheid - Germany Fax +49 2351 9365-19 info@ipf-electronic.com... -
Page 18: Dimensional Drawings / List Of Articles
USB, software 1.5m cable Other pressure ranges and versions on request. Revised version: 18.01.2016 Kalver Str. 25 - 27 Subject to alteration! Tel +49 2351 9365-0 ipf electronic gmbh www.ipf-electronic.com 58515 Lüdenscheid - Germany Fax +49 2351 9365-19 info@ipf-electronic.com...
