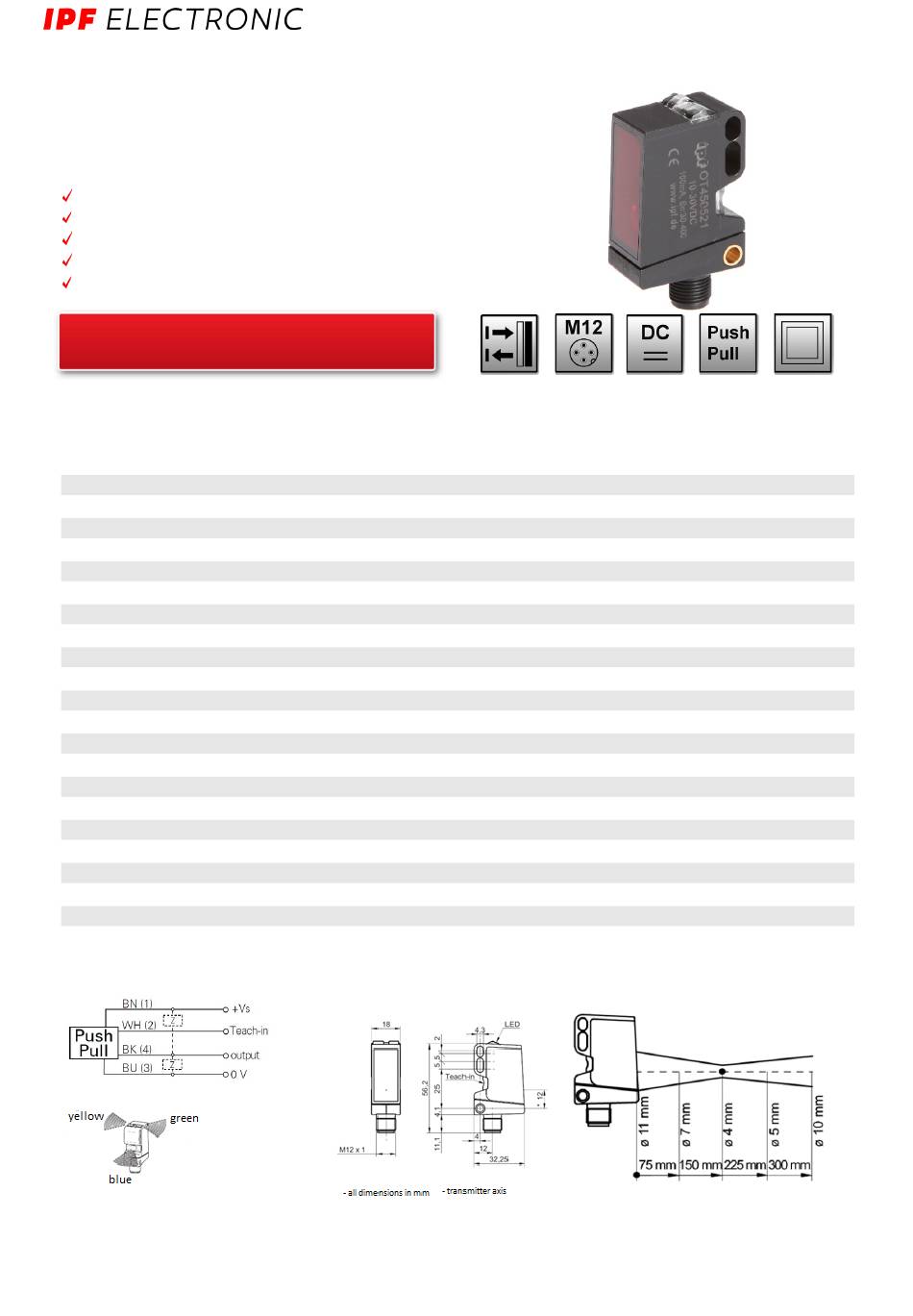

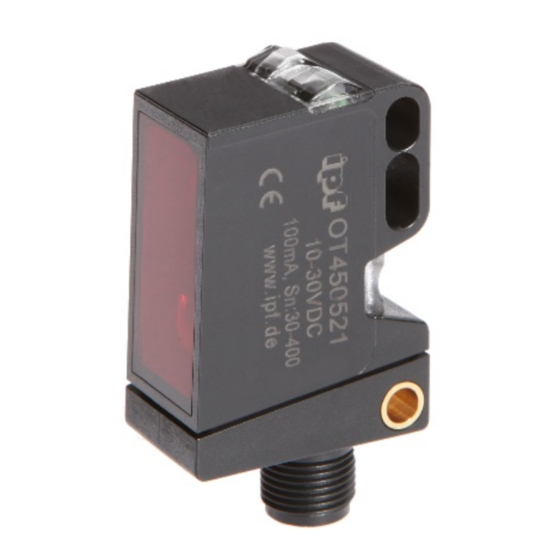

ipf electronic OT450521 Manual

OT450521

Dimensions

56 x 18 x 32mm
plastic housing, compact design
Setting through teach-in
LED display with adjustment assistance
Suppression of mutual influence
M12 plug 4-pole
Colour-independent light sensor
with background suppression

Technical data

function
sensing distance
setting range
voltage supply range
current consumption (without load)
output current (max. load)
output signal
voltage drop
response time / release time
switching frequency
transmitting element (timed)
wavelength
short-circuit proof
reverse polarity protected
display (operation)
display (signal) / adjustment aid
display (teach-In)
interference suppression
material (housing)
material (front screen)
protection class (EN 60529)
temperature (operation)
connection
Electrical connection
LED colours
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel +49 2351 9365-0 • info@ipf-electronic.com • www.ipf-electronic.com
background supression
30 ... 400mm
60 ... 400mm
10 ... 30V DC
≤ 30mA
≤ 100mA
push-pull, no/nc
≤ 3V DC
≤ 0,49ms
1kHz
LED, red light, punctiform
630nm
+
+
LED green
LED yellow
LED blue
+
plastic (ASA, MABS)
PMMA
IP 67
-25 ... +60°C
M12-plug 4polig
Dimensional drawing
MANUAL • Subject to alteration! Version: September 2013
Beam path
