ipf electronic ON330571 Manual

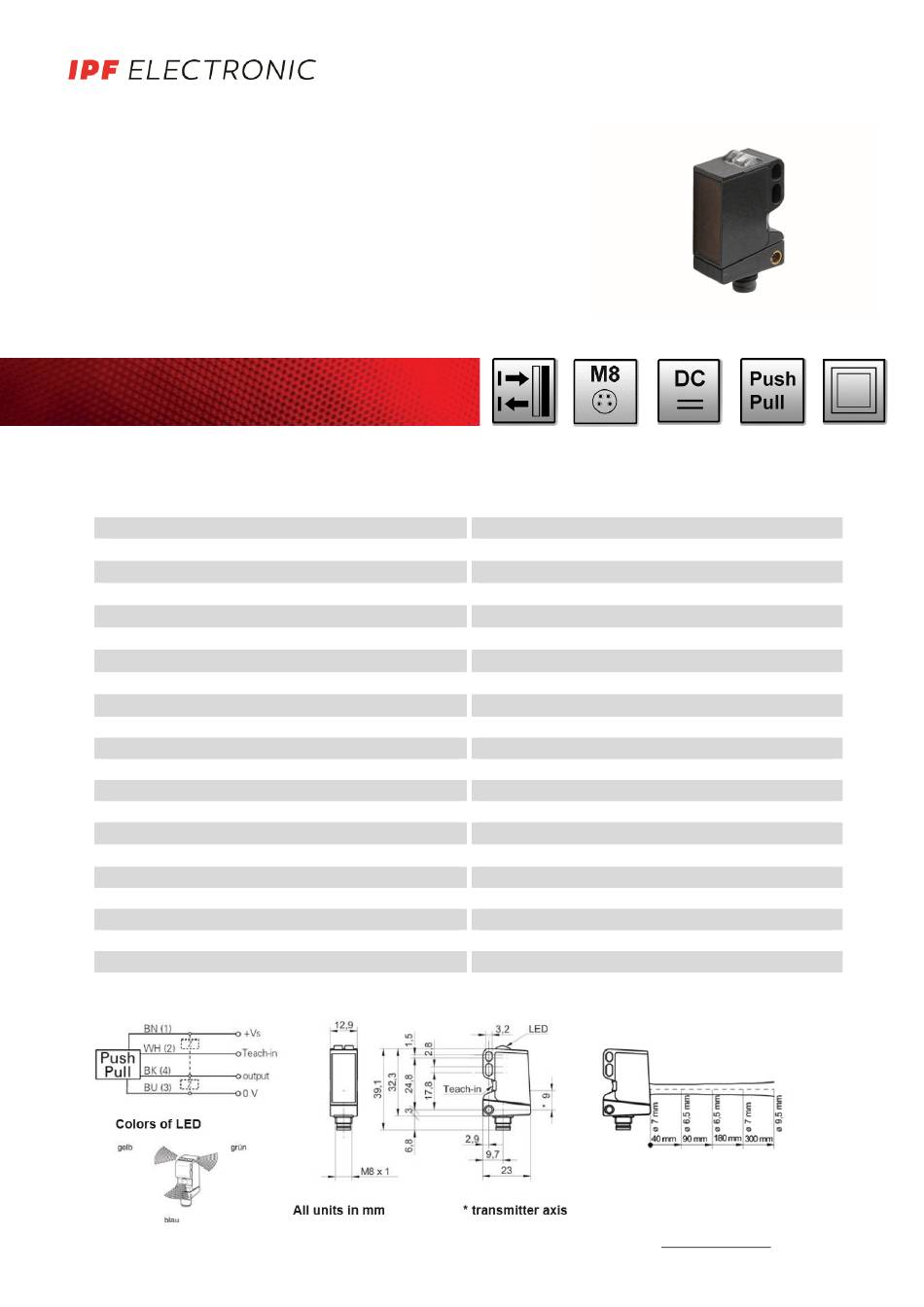

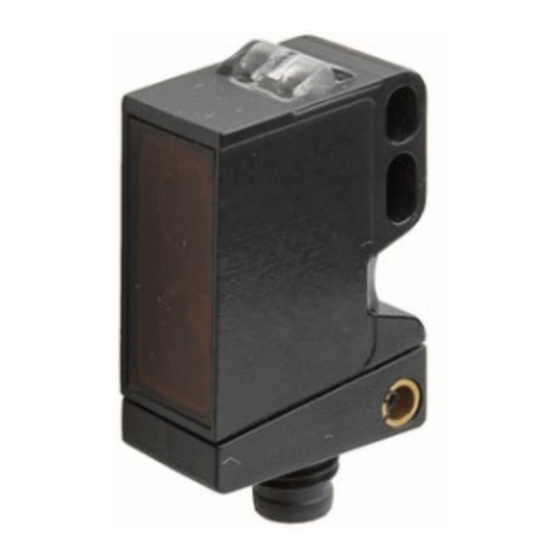

ON330571
Auto-reflective sensors
I
plastic housing, compact design
I
adjustment via tech-in
I
adjustment aid with status LED
I
small light spot due to PinPoint LED
I
M8-connector, 4-pin
works like a retro-reflective sensor
– without reflector
TECHNICAL DATA
dimensions
operating range
alignment optical axis
operating voltage
current consumption (w/o load)
output current (max. load)
output signal
voltage drop
response / decay time
switching frequency
transmitting element (pulsed)
wave length
short-circuit protection
reverse polarity protection
display (operating)
display (signal / adjustment aid)
display (teach-in)
material (front screen)
material (housing)
degree of protection (EN 60529)
temperature (operating)
connection
Connection
ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena
39 x 13 x 23mm
30 ... 300mm
< 2°
10 ... 30V DC
≤ 45mA
≤ 100mA
push-pull, no/nc
≤ 3V DC
≤ 0.5ms
1kHz
LED, red light, spot
630nm
+
+
LED green
LED yellow
LED blue
PMMA
plastic (ASA, MABS)
IP67
-25 ... +60°C
M8-connector, 4-pin
Dimensional drawing
Tel +49 2351 9365-0 • Fax +49 2351 9365-19
│
MANUAL • Subject to alteration! Version: October 2019
Radiation path
