ipf electronic OTQ90170 Manual

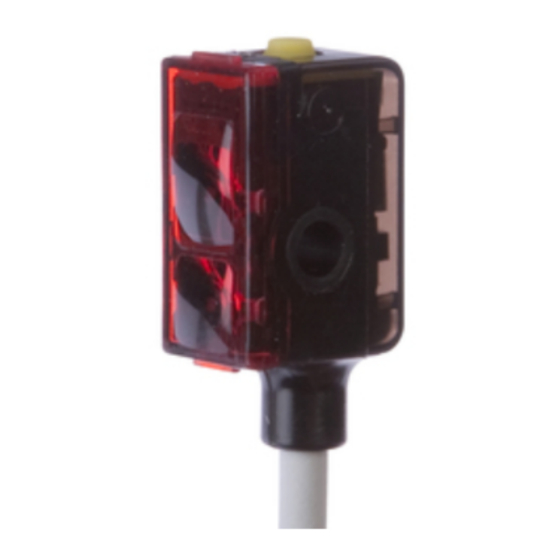

OTQ90170 / OTQ90175
difuse reflection sensor
the smallest with background
suppression
• plastic housing, extremely small size
• LED display with setting control
• background suppression
• reduction of optical interference
• switching distance teachable via teach-button
• short-circuit protection and reverse polarity protection
• connection via 4-pin M8 cable connector

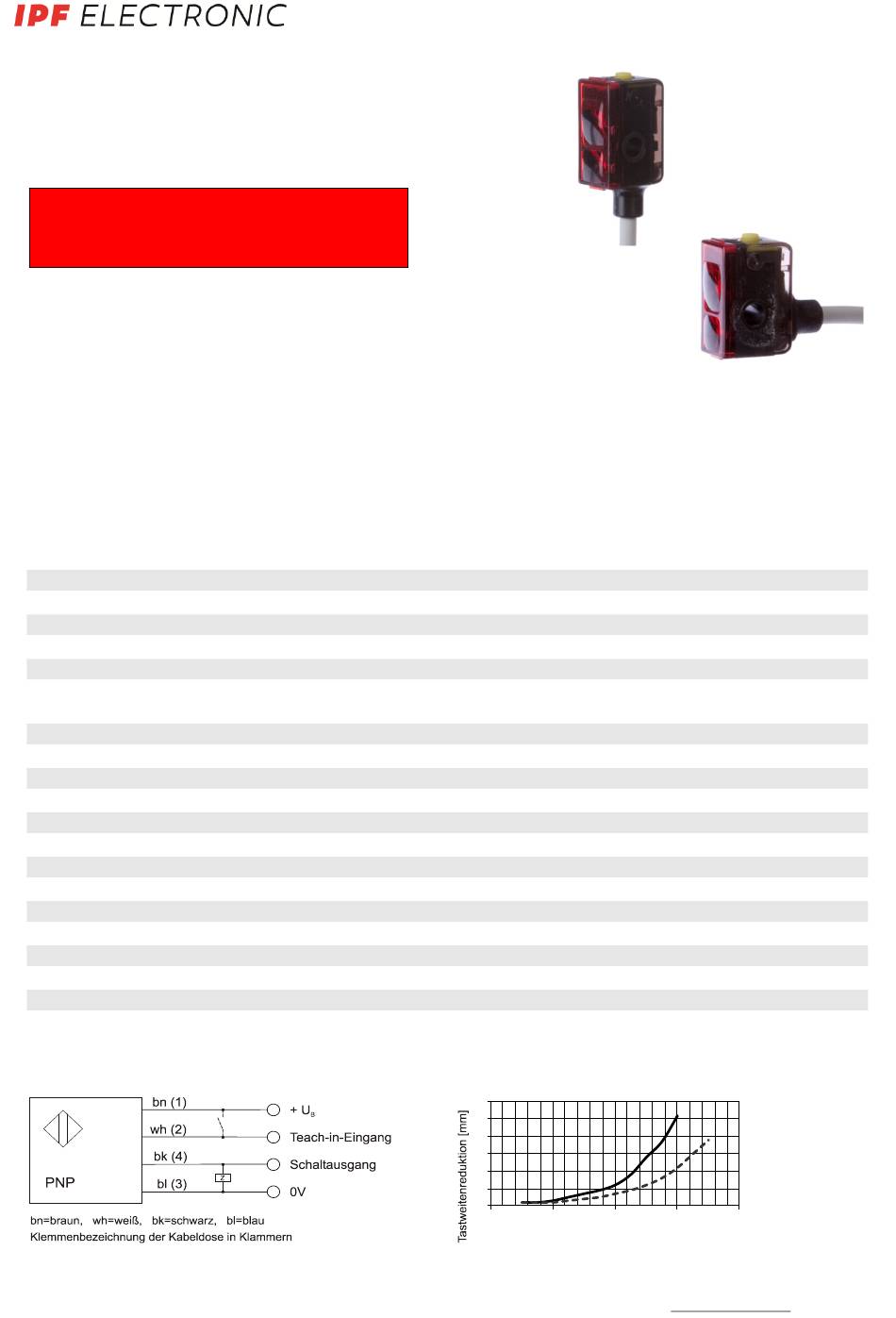

Technical Data
current consumption
voltage drop
operating voltage U
B
current rating
switching output
sensing range adjustable
range at sensing range 60mm
range at sensing range 10mm
receiving display
setting control/soiling display
switching state display
transmitting element
response time
decay time
housing material
degree of protection
ambient temperature
connection
max. torque range
electric connection
ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena
≤ 25mA
≤ 1.8V
10 ... 30V DC
100mA
pnp, teachable
10 ... 60mm
(via teach-in button or extern teach-in input)
2 ... 60mm
5 ... 10mm
LED green
LED green flashing
LED yellow
LED red, 660nm, pulsed
< 0.5ms
< 0.5ms
PMMA, MABS, PA
IP 65 (EN 60529)
-20°C ... +50°C
M8-cable connector 4-pin
0,2 Nm
sensing range diagram
│ Tel +49 2351 9365-0 • Fax +49 2351 9365-19
MANUAL • Subject to alteration! Version: Febuary 2015
6
5
4
3
2
1
0
0 20 40
sensing range on white [mm]
│ info@ipf-electronic.com • www.ipf-electronic.com
60 80
1
