ipf electronic PT120320 Manual

PT120320
laser sensors,
diffuse reflection with background suppression
background suppression
time-of-flight measuring method
infrared laser, laser protection class 1
adjustment via teach-in
push-pull switching output
window function programmable
short-circuit and reverse polarity protected LED-
display
M12-connector, 4-pin

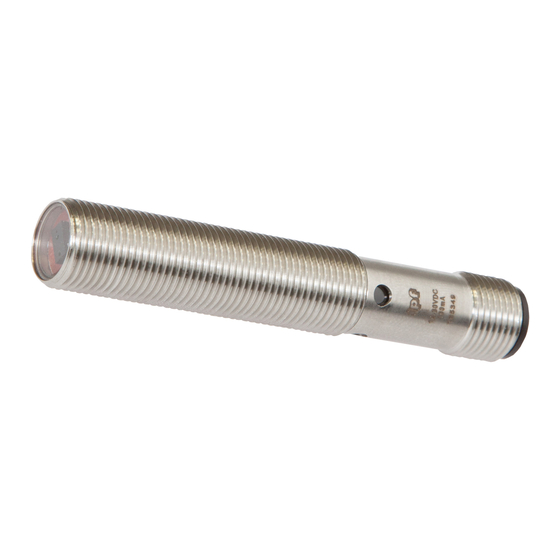

diffuse reflection laser sensor
with background suppression
Description
With this new device ipf electronic presents for the
first time an extremely compact optical diffuse
reflection laser sensor with background suppression
that is able to detect objects completely
independent of their color. The background
suppression works according to the so-called "time-
of-flight" principle
(TOF), a transit time method used for distance
measurement. With this method, the distance of
an object is determined by measuring the time-of-
flight of a light pulse that is emitted by a
sensor transmitter, reflected by the detected
object and then finally captured by the sensor
receiver.
ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena Tel +49 2351 9365-0 • Fax +49 2351 9365-19
│
MANUAL • Subject to alteration! Version: August 2019
The range, or rather the switching distance,
of this compact diffuse reflection sensor is
therefore fully independant of the reflective
properties of the object surface that is to be
detected. The sonsors operate with infrared laser
light of laser protection class1.
The electrical connection is made via a 4-pin
M12-connector. To avoid EMC-interferences a
shielded cable socket (e.g. VK205325) has to be used.
