ipf electronic PT230020 Manual

PT230020

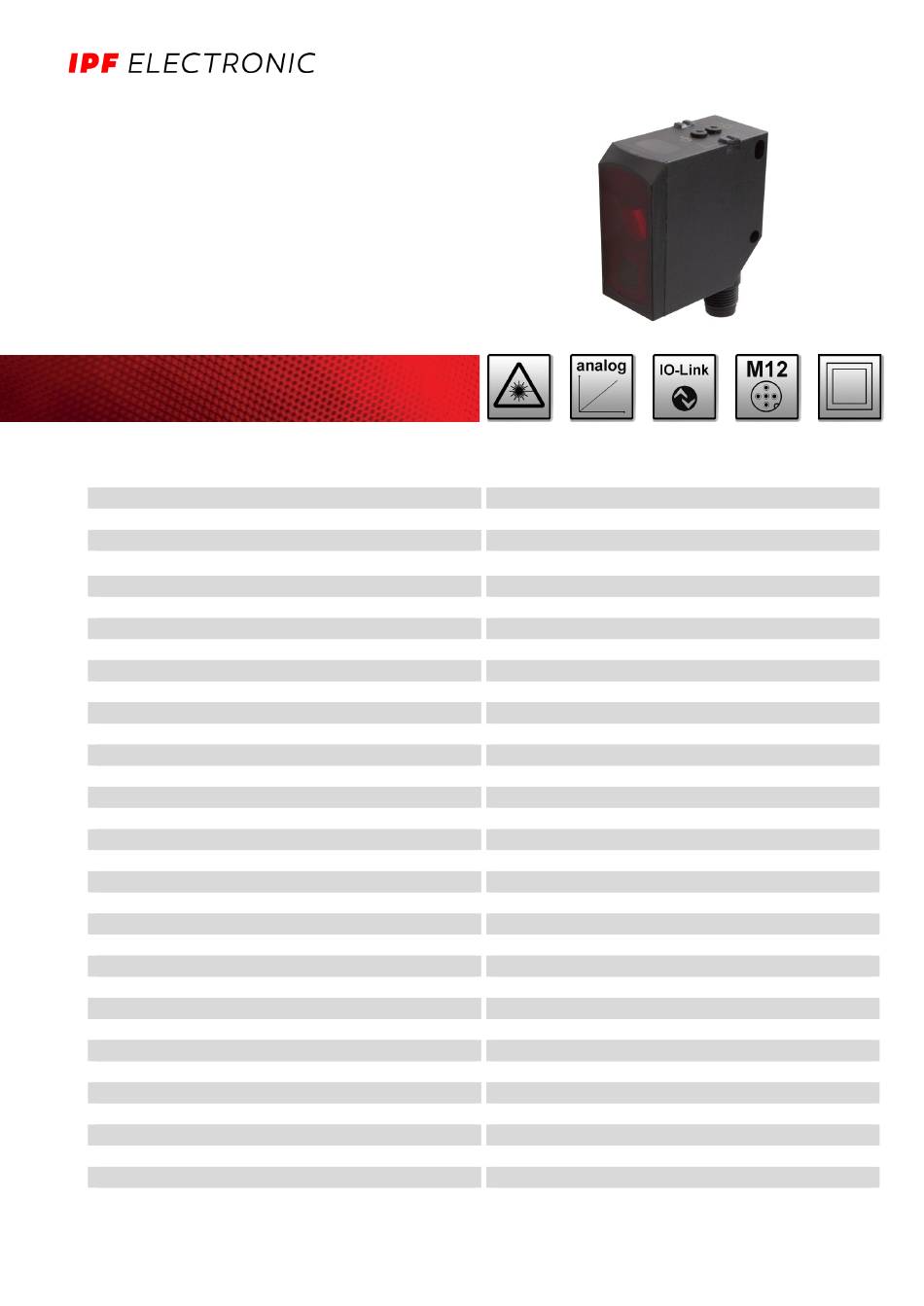

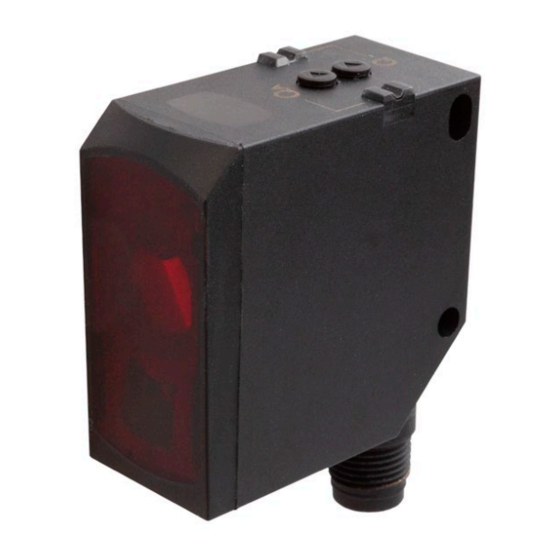

Laser sensors
Diffuse-reflection sensor with analog and switching output
I
Plastic housing
I
Protection class IP67
I
Analog output 4 ... 20mA
I
M12 connection, 270° rotatable
Laser protection class 1
Setting via teach-in
TECHNICAL DATA
Function
Measuring range
Resolution
Linearity
R
epeatability
Operating voltage
Ripple
Readiness delay
Power consumption (without load)
Output signal
Output current (max. load)
Voltage drop (max. load)
Switching frequency
Hysteresis
Analog output
Update rate
Burden
Temperature drift
Warm-up time
Transmitting element
Wavelength
Laser protection class
Reverse polarity protection
Short-circuit protection
Display (operation)
Display (analog output)
Display (switching output)
Material (housing)
Material (front screen)
Temperature (operation)
Protection class (EN 60529)
Connection
Connection accessories
Mounting accessories (universal holder)
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel +49 2351 9365-0 • info@ipf-electronic.com • www.ipf-electronic.com
MANUAL • Subject to alteration! Version: 18
Time of Flight
0. 1 ... 5m
< 5mm (12bit)
± 30mm
1.2mm
18 ... 30V DC
≤ 10%
≤ 5s
≤ 60mA
PNP / NPN, no/nc
100mA
2.4V
≤ 250Hz
20mm
4 ... 20mA
2ms
≤ 500Ω
< 2mm / K
20min
Laser diode, red light, pulsed
655nm
1
+
+
LED green
LED yellow
LED yellow
ABS
PMMA
-20 ... +60°C
IP67 & IP69k
M12-connector 5-pin, rotatable
e.g. VK205625
AY000119
th August 2020
068-14986
