fantastic furniture Bridge Tallboy Manual

3 drawer oak
Hide thumbs

Advertisement

Quick Links

Download this manual
Bridge
Tallboy 3 Drawer Oak

Advertisement

loading

Related Manuals for fantastic furniture Bridge Tallboy

Summary of Contents for fantastic furniture Bridge Tallboy

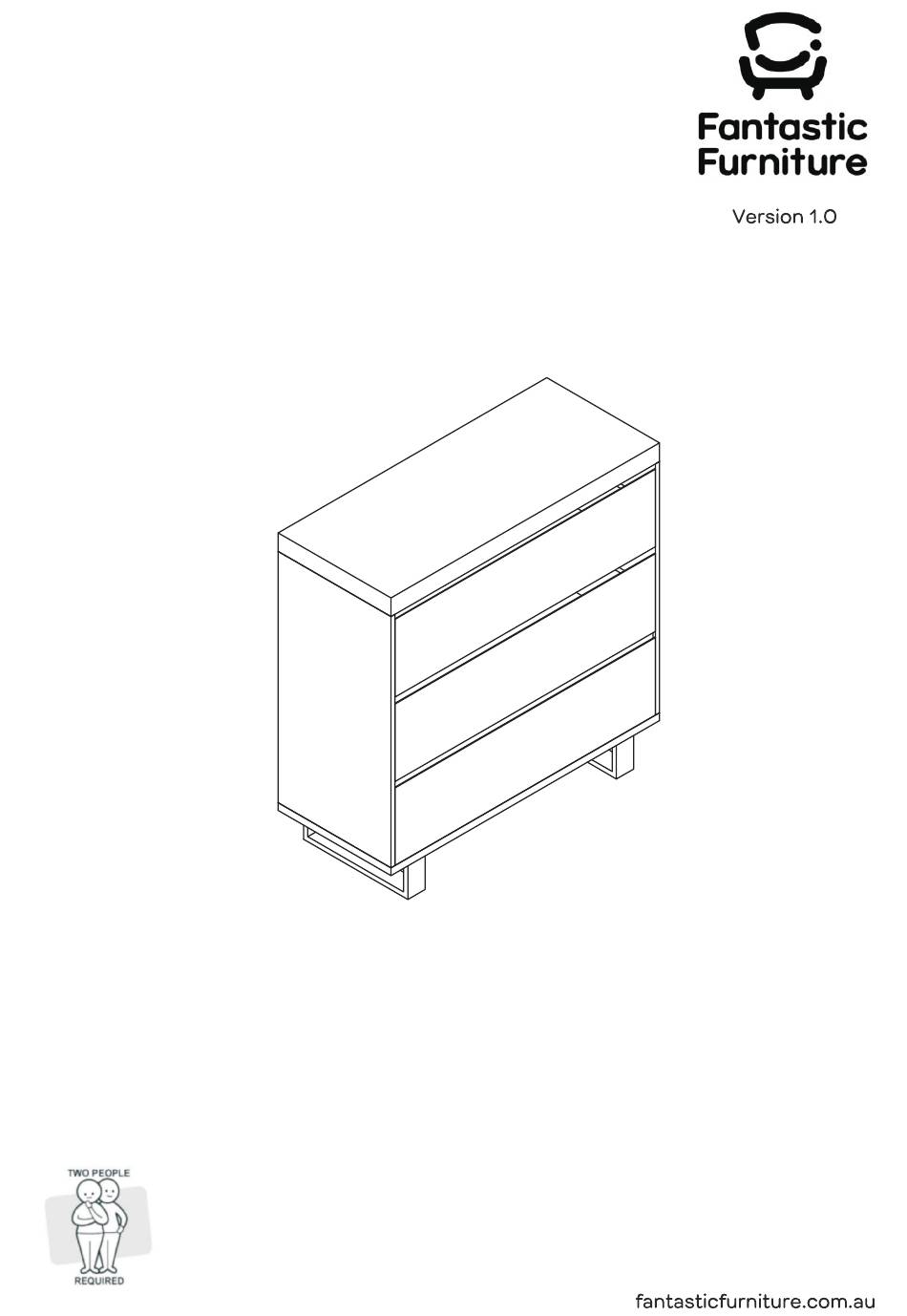

  • Page 1 Bridge Tallboy 3 Drawer Oak...

  • Page 4: Hardware Pack

    TopPanel (P1) Drawer Right Panel (P11) Drawer Back (P9) Right Panel (P3) Drawer Left Panel (P10) Back Panel (P5) Drawer Support (P13) Top Panel (P1) Bottom Panel (P2) Right Panel (P3) Back Panel Left Panel (P4) (P5) Left Panel 2 x Back Panels (P5) (P4) 3 x Support Panels (P6) Back Support Panel (P7)
  • Page 5 12 x Small Washers 12 x Bolts (H4) (H5) 4 x Levelling Feet 1 x Allen Key (H8) (H7) Using 12 x bolts (H5) and 12 x small washers (H4), secure the 2 x legs (P14) to the bottom panel (P2), tightening completely with allen key (H7). Screw in 4 x levelling feet (H8) into the bottom of the 2 x legs (P14) as shown.
  • Page 6 10 x Cam Bolts 6x Dowels (H1) (H3) Phillips Head Screwdriver Insert 3 x dowels (H3) into the right panel (P3). Secure 5 x cam bolts (H1) to the right panel (P3), tightening using a phillips head screwdriver. Repeat this step for the left panel (P4). Align and attach the 3 x support panels (P6) and the back support panel (P7) to the right panel (P3).
  • Page 7 10 x Cam Nuts Phillips Head (H2) Screwdriver Insert 10 x cam nuts (H2) into the 4 x support panels (P6, P7), rotating the cam nuts so the arrow points towards the incoming cam bolt. Secure the panels together by tightening the cam nuts (H2) using a phillips head screwdriver.
  • Page 8 Note: ensure the back panel (P5) slots all the way into the groove on the bottom panel (P2). Slide the 2 x back panels (P5) into the grooves of the bottom, left and right panels (P2, P3, P4) as shown. 4 x Cam Nuts Phillips Head (H2)
  • Page 9 18 x Cam Bolts Phillips Head (H1) Screwdriver Secure 6 x cam bolts (H1) to 1 x drawer door (P8), tightening using a phillips head screwdriver. Repeat this step for the other 2 x drawer doors (P8). Align and attach 1 x drawer support (P13), 1 x drawer left panel (P10) and 1 x drawer right panel (P11) to 1 x drawer door (P8).
  • Page 10 Slide 1 x drawer bottom (P12) into the grooves on the panels (P8, P10, P11) as shown. Repeat this step for the other 2 x drawers. (H10) 18 x Long Screw (H10) (P9) (H10) (H10) (H10) (H10) Align 1 x drawer back (P9) to the assembled drawer. Ensure the pre-drilled holes on the left and right drawer panels (P10, P11) and drawer support (P13) align with the pre-drilled holes on the drawer back (P9).
  • Page 11 (H6) (H9-4) (H6) (H6) Left Runner (H9-3) Right Runner (H -3) (H -4) Note: Ensure the wheels on the runners are 12 x Short Screws Phillips Head (H6) Screwdriver at the back of the drawer as shown. Secure 1 x left runner (H9-3) and 1 x right runner (H9-4) to the assembled drawer using 4 x short screws (H6), tightening with the phillips head screwdriver.
  • Page 12 Slide the 3 x assembled drawers into tallboy 12 x Short Screws (H6) Insert 12 x wedges (H11) into the back of the unit as shown. Secure using 12 x short screws (H6), tightening with the phillips head screwdriver. Page 12...
  • Page 13 We strongly recommend this product is permanently fixed to the wall or other suitable surface. 2 x Medium Screws (H14) (H12) 2 x Wall Straps (H13) Attach 2 x wall straps (H13) to the top panel (P1) using 2 x washers (H12) and 2 x medium screws (H14).
  • Page 14 Page 14...
