Summary of Contents for fantastic furniture Bridge Buffet

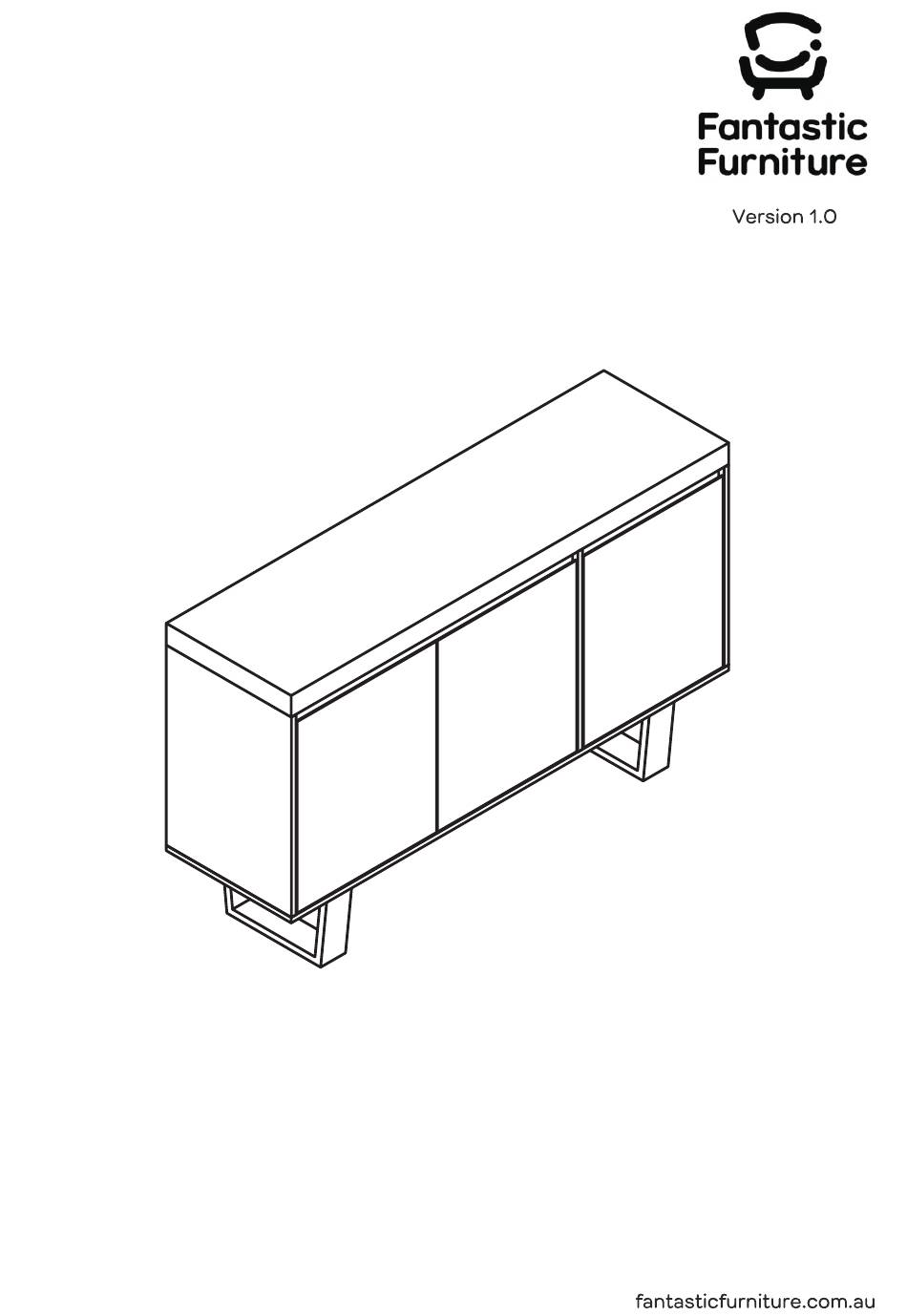

- Page 1 Bridge Buffet...
-
Page 4: Hardware Pack
Top(P1) Bottom(P2) Right Panel(P3) Left Panel(P4) Middle Panel(P5) Long Support(P6) Short Support(P7) Long Shelf(P8) Short Shelf(P9) 2 x Long Back Panels(P10) Short Back Panel(P11) Left Door(P12) 2 x Right Door(P13) Hardware Pack 20 x Cam Bolts 20 x Cam Nuts 24 x Dowels 6 x Hinges 48 x Short Screws... - Page 5 2 x Short Bolts 1 x Support Leg (H14) (H13) 1 x Allen Key (H9) Using 2 x Short Bolts(H4) secure the Support Leg(H13) to the Unit Bottom(P2) by tightening with Allen Key(H9). 2 x Legs 12 x Washers (H6) (H7) 12 x Long Bolts 1 x Allen Key...
- Page 6 6 x Cam Bolts 6 x Dowels (H3) (H1) (P2) Phillips Head Screwdriver Insert 6 x Dowels(H3) into Unit Bottom(P2) and secure 6 x Cam Bolts(H1) to Unit Bottom(P2) by tightening with the Phillips Head Screwdriver. 6 x Dowels 6 x Cam Bolts (H3) (H1) (P3)
- Page 7 2 x Cam Nuts Phillips Head (H2) Screwdriver (P3) Insert 2 x Cam Nuts(H2) into Short Shelf(P9) as shown.Rotate the cam nuts so the arrows point towards the incoming cam bolts. Attach Short Shelf(P9) to Right Panel(P3) by tightening the cam nuts(H2) with the Phillips Head Screwdriver 2 x Dowels (H3)
- Page 8 （P7) 2 x Dowels 2 x Cam Nuts (H15) (H2) (P9) Phillips Head Screwdriver Insert 2 x Dowels(H15) into Middle Panel(P5) Insert 2 x Cam Nuts(H2) into Short Shelf(P9) as shown. Rotate the cam nuts so the arrows point towards the incoming cam bolts. Attach Short Shelf(P9) to Middle Panel(P5) by tightening the Cam Nuts(H2) with the Phillips Head Screwdriver (P6)
- Page 9 (H3) (P6) (H2) (P8) 2 x Dowels 2 x Cam Nuts (H3) (H2) Phillips Head Screwdriver Insert 2 x Dowels(H3) into Left Panel(P4) to connect with Long Support(P6). Insert 4 x Cam Nuts(H2) into Long Shelf(P8) as shown. Rotate the cam nuts so the arrows point towards the incoming cam bolts.
- Page 10 6 x Cam Bolts 6 x Dowels (H1) (H3) (P1) Insert 6 x Dowels(H3) into Unit Top(P1) and secure 6 x Cam Bolts(H1) into Unit Top(P1) by tightening with the Phillips Head Screwdriver. 6 x Cam Nuts Phillips Head (H2) Screwdriver Insert 6 x Cam Nuts(H2) into Panel(P3&P4&P5) as shown.Rotate the cam nuts so the arrows point towards the incoming cam bolts.
- Page 11 (P10) (P11) Turn over the Buffet Slide another Long Back Panel(P10) and Short Back Panel(P11)into the groove. 6 x Cam Nuts Phillips Head (H2) Screwdriver (P2) Insert 6 x Cam Nuts(H2) into Panel(P3&P4&P5) as shown. Rotate the cam nuts so the arrows point towards the incoming cam bolts. Attach Bottom(P2) to Panel(P3&P4&P5) by tightening the Cam Nuts(H2) with the Phillips Head Screwdriver Page 11...
- Page 12 6 x Hinges 12 x Short Screws (H4) (H5) Using 4 x Short Screws(H5) to connect 2 x Hingers(H4) to Right Door(P13) Adjust the door then tighten all screws with a Phillips Head Screwdriver. Repeat previous step for Anther Right Door(P13) and Left Door(P12) 24 x Short Bolts (H5) Using 8 x Short Screws(H5) to connect Right Door(P13) to...
- Page 13 12 x Wedges 12 x Short Screws (H11) (H5) Phillips Head Screwdriver Insert 12 x Wedges(H11) into all corners of the back of the assembled unit as shown. Secure Wedges(H1) by tightening 12 x Short Screws(H5) with the Phillips Head Screwdriver. 1 x Long Screw 1 x Washers (H12)
- Page 14 (H16) 1 x Washers (H16) Page 14...
