Version 1.2

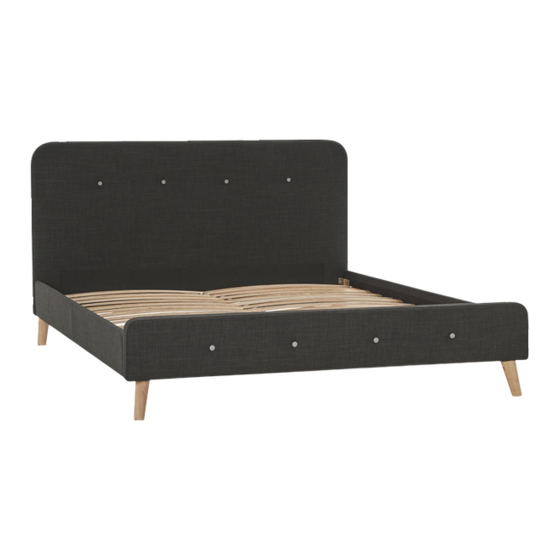

Buttons
Double Bed
fantasticfurniture.com.au

Advertisement

loading

Related Manuals for fantastic furniture Buttons

Summary of Contents for fantastic furniture Buttons

  • Page 1 Version 1.2 Buttons Double Bed fantasticfurniture.com.au...
  • Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au fantasticfurniture.com.au...
  • Page 4 What you need to assemble the product Headboard Other tools you need: (P1) Phillips head screwdriver; Side Rail (P5) Headboard Footboard Leg (P3) Timber Cross Rail (P4) Footboard (P2) Side Rail (P5) Centre Rail (P6) Headboard Footboard Leg (P3) Support Leg (P7) Parts list Support Leg (P7) Box 1 :...
  • Page 5 Step 1 You will need Allen Key 8 x Bolts 20mm 8 x Washers M8 (H2) (H4) (H3) (P1) (P3) (H4) (P2) (H3) (H2) Attach legs (P3) to the bottom of headboard (P1) and footboard (P2) with 8 x bolts (H3) and 8 x washers (H4) by using allen key (H2). Step 2 You will need Allen Key...
  • Page 6 Step 3 You will need (H2) Allen Key 2 x Washers M8 2 x Bolts 20mm (H3) (H2) (H4) (H3) (H4) (P6) (P7) Attach the support legs (P7) to the centre rail (P6) with 2 x bolts (H3) , 2 x washers (H4) by using allen key (H2).
  • Page 7 Step 5 You will need 12 x Centre 24 x End Connectors Connectors (P9) (P8) (P10) (P10) (P9) (P8) (P8) 24 x Slats (P10) Push 2 end connectors (P8), 2 pcs slats (P10) and a centre connector (P9) together. Insert the full slat into the side rail and centre rail one by one. Sometimes it makes it easier to line up the hole if you press down in the middle of the slat to flatten it out.
  • Page 8 Repeat for every bed slat until finished. Step 6 You will need Allen Key 2 x Small Screws 32mm (H2) (H5) Phillips head Felt Pad Screwdriver 1 x 40 x 20mm (H5) (not provided) (H6) (H2) (P1) (P4) Make sure small screw is tightened.

  • Page 9: Job Complete

    Step 7 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 9...
