What's on your package?

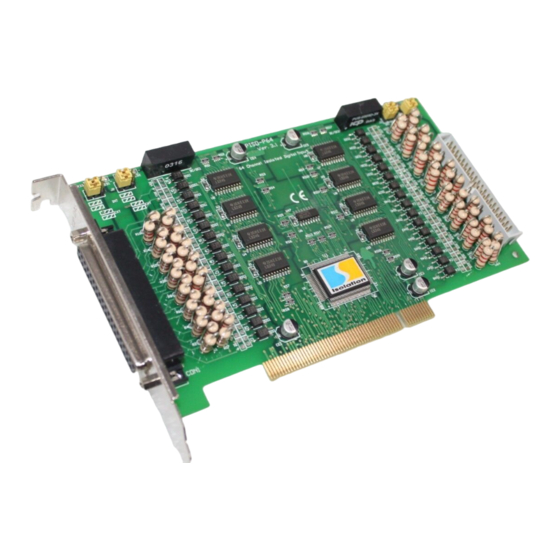

One PISO-P64 series card
One companion PCI CD (V3.5 or later)
One Quick Start Guide(This document)
2
......................................................
Installing Windows Driver
Follow those steps:
1. Setup the Windows driver.
You can get the driver from:
CD:\NAPDOS\PCI\PISO-DIO\DLL_OCX\Driver\
http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/piso-dio/dll_ocx
/driver/
Language
Version
Update
- 1 -
PISO-P64
English
V1.1
Feb.2009
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA PISO-P64 Series
Summary of Contents for ICP DAS USA PISO-P64 Series
- Page 1 English Version V1.1 Update Feb.2009 ……………………………………………… What’s on your package? One PISO-P64 series card One companion PCI CD (V3.5 or later) One Quick Start Guide(This document) ……………………………………………… Installing Windows Driver Follow those steps: 1. Setup the Windows driver. You can get the driver from: CD:\NAPDOS\PCI\PISO-DIO\DLL_OCX\Driver\ http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/piso-dio/dll_ocx...
- Page 2 Windows driver only support windows 98/NT/2000 and XP/2003/vista 32-bit versions. 2. Click button to start installation. 3. Click button to install driver into the default folder. 4. Click button to continue installation. 5. Select “NO, I will restart my computer later” and then click button.
- Page 3 ……………………………………………… Pin Assignments & Jumper Setting J1/J2/J3/J4 Jumper Setting CON1 Pin assignment E x te rn a l E x te rn a l P o w e r G N D (-) P o w e r G N D (-) D I: 0 -1 5 (-) D I: 1 6 -3 1 (-) D I 0...
- Page 4 ……………………………………………… Self-Test 1. Prepare for device: DN-37(Optional) wiring terminal board. Exterior power supply device. For example: DP-665(Optional) 2. Setting JP1, JP2, JP3, JP4 to Power. External 3. Use DN-37 to connect the board CON1. External +24 V connect to External power(+) and external GND connect to External power GND(-).
- Page 5 6. Run the PISO-P64 sample program. Get the file from: CD:\NAPDOS\PCI\PISO-DIO\DLL_OCX\Demo\ http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/piso-dio/dll_ocx/demo/ 7. Check number of the PISO-P64 and test DI function. 1. The one PISO-P64 successfully installed to PC. 2. Select the 3. Click this board number for button to do PISO-P64.
-
Page 6: Additional Information
……………………………………………… Additional Information PISO-P64 Series Card Product page: http://www.icpdas.com/products/DAQ/pc_based/piso_p64.htm DP-665(Optional) page: http://www.icpdas.com/products/Accessories/power_supply/dp-665.htm DN-37(Optional) page: http://www.icpdas.com/products/DAQ/screw_terminal/dn_37.htm Documents: CD:\NAPDOS\PCI\PISO-DIO\Manual http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/piso-dio/manual/ Software: CD:\NAPDOS\PCI\PISO-DIO http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/piso-dio/ The ICP DAS Web Site http://www.icpdas.com Technical support Supplies and ordering information Ways to enhance your device Application story Contact Us Service@icpdas.com...
