Warranty
All products manufactured by ICP DAS are warranted
against defective materials for a period of one year from the
date of delivery to the original purchaser.
Warning
ICP DAS assume no liability for damages consequent to
the use of this product. ICP DAS reserves the right to change
this manual at any time without notice. The information
furnished by ICP DAS is believed to be accurate and reliable.
However, no responsibility is assumed by ICP DAS for its use,
nor for any infringements of patents or other rights of third
parties resulting from its use.
Copyright
Copyright © 1999 by ICP DAS. All rights are reserved.
Trademark
The names used for identification only maybe registered
trademarks of their respective companies.
PIO-D144
User's Manual
Version: 2.1
Date:1999/10
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIO-D144 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICP DAS USA PIO-D144

Summary of Contents for ICP DAS USA PIO-D144

  • Page 1 ГК Атлант Инжиниринг – официальный представитель в РФ и СНГ +7(495)109-02-08 sales@bbrc.ru www.bbrc.ru PIO-D144 User’s Manual Warranty All products manufactured by ICP DAS are warranted against defective materials for a period of one year from the date of delivery to the original purchaser.

  • Page 2: Table Of Contents

    ГК Атлант Инжиниринг – официальный представитель в РФ и СНГ +7(495)109-02-08 sales@bbrc.ru www.bbrc.ru PIO-D144 User’s Manual Tables of Contents INTRODUCTION ......................... 3 HARDWARE CONFIGURATION....................4 2.1 B ..........................4 OARD AYOUT I/O P ........................5 OCATION 2.3 E I/O O ......................

  • Page 3: Introduction

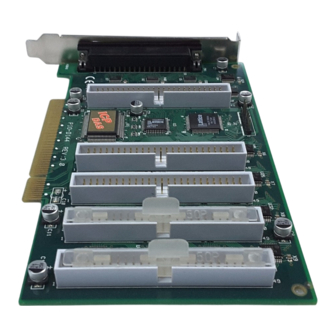

    The PIO-D144 consists of one DB-37 & five 50-pin flat-cable connectors. There are three 8-bit port, PA, PB & PC in each connector. Every port consists of 8- bit programmable D/I/O. So the PIO-D144 can provide 144 channels of TTL- compatible D/I/O.
