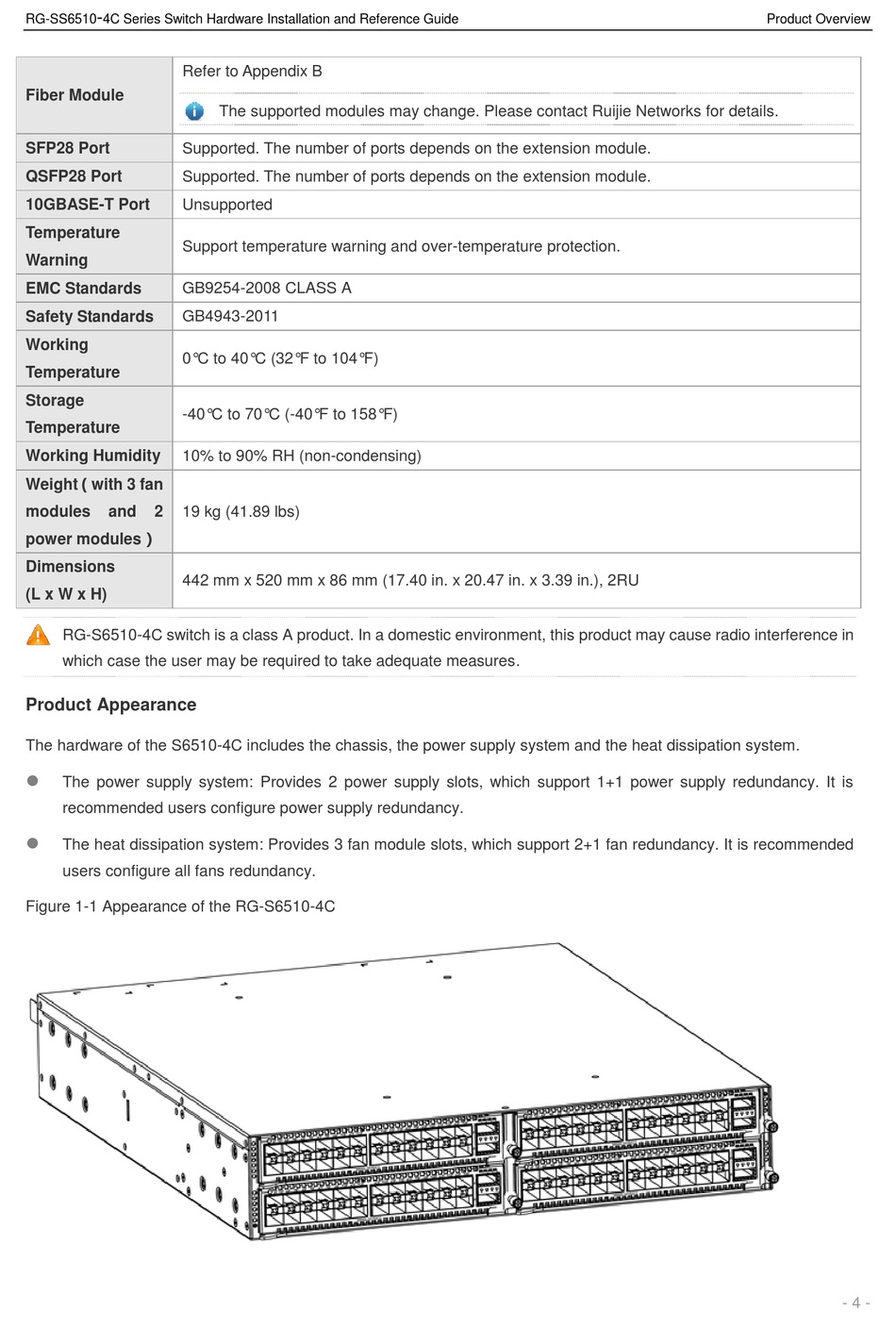

Ruijie RG-S6510-4C Series Hardware Installation And Reference Manual page 6

-
RG-SS6510 4C Series Switch Hardware Installation and Reference Guide
Refer to Appendix B
Fiber Module
SFP28 Port Supported. The number of ports depends on the extension module.
QSFP28 Port Supported. The number of ports depends on the extension module.
10GBASE-T Port Unsupported
Temperature
Support temperature warning and over-temperature protection.
Warning
GB9254-2008 CLASS A
EMC Standards
Safety Standards GB4943-2011
Working
0° C to 40° C (32° F to 104° F)
Temperature
Storage
-40° C to 70° C (-40° F to 158° F)
Temperature
Working Humidity 10% to 90% RH (non-condensing)
Weight（with 3 fan
modules and 2 19 kg (41.89 lbs)
power modules）
Dimensions
442 mm x 520 mm x 86 mm (17.40 in. x 20.47 in. x 3.39 in.), 2RU
(L x W x H)
RG-S6510-4C switch is a class A product. In a domestic environment, this product may cause radio interference in
which case the user may be required to take adequate measures.
Product Appearance
The hardware of the S6510-4C includes the chassis, the power supply system and the heat dissipation system.

The power supply system: Provides 2 power supply slots, which support 1+1 power supply redundancy. It is
recommended users configure power supply redundancy.

The heat dissipation system: Provides 3 fan module slots, which support 2+1 fan redundancy. It is recommended
users configure all fans redundancy.
Figure 1-1 Appearance of the RG-S6510-4C
The supported modules may change. Please contact Ruijie Networks for details.
Product Overview
