1.2 Modules
RG-S6510-4C switch supports the following modules: M6500-24VS2CQ, M6500-08CQ, M6500-16QXS, RG-PA800I-F,
and M6500-FAN-F.
1.2.1 M6500-24VS2CQ
Module Appearance

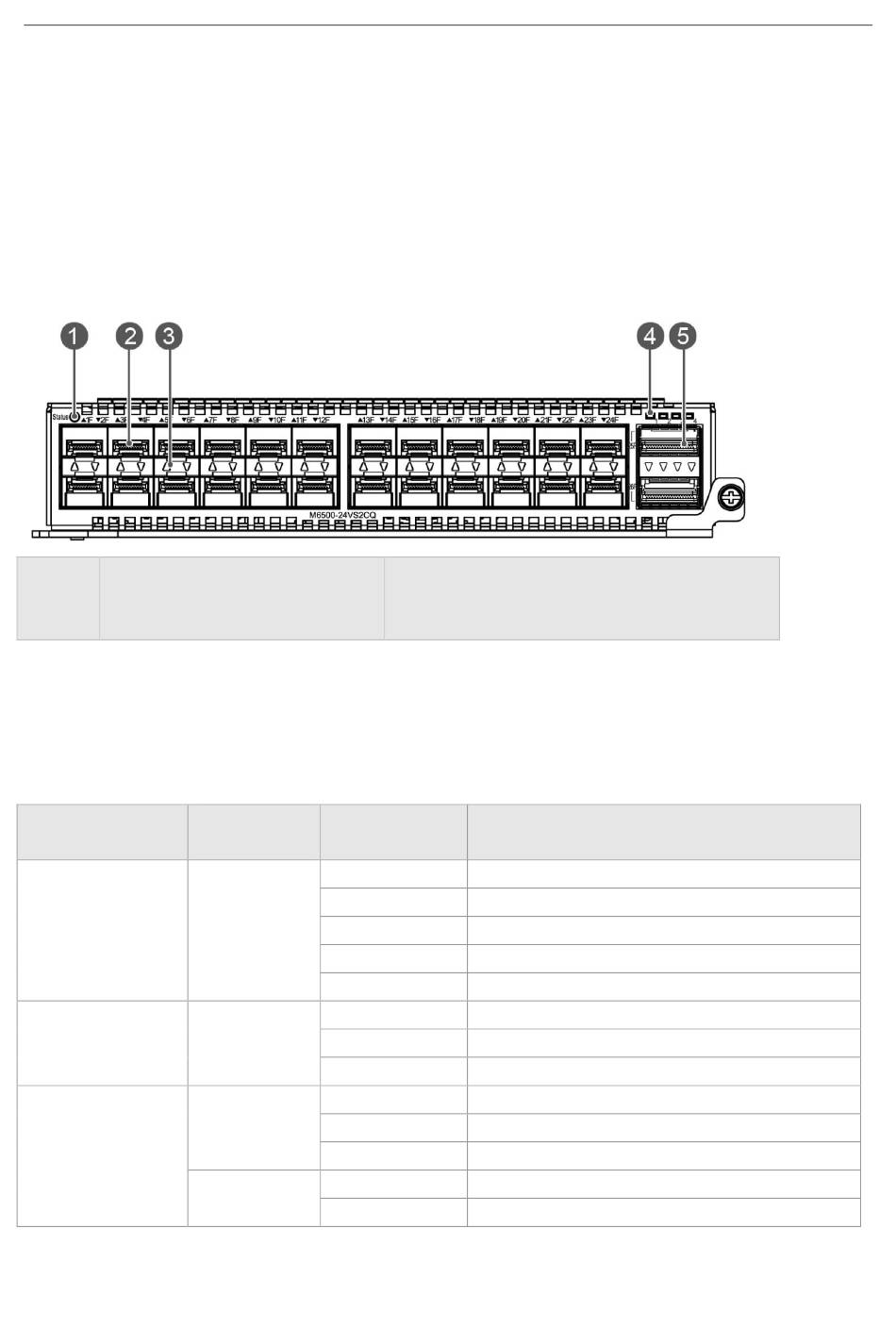

Figure 1-6 M6500-24VS2CQ
Notes: 1. Status Indicator
2. 25G/10G SFP28 Port
3. 1F-24F Port Status Indicator
External Ports
The M6500-24VS2CQ provides 24 SFP28 ports and 2 QSFP28 ports and supports hot swapping of SFP28/SFP+ and
QSFP28/QSFP+ modules. Both fiber modules and DAC can be used.
Indicator
Indicator
System indicator
SFP28 port indicator
QSFP28 port
indicator
Panel
Status
Identification
Off
Solid red
Status Blinking green
Solid green
Solid yellow
Off
1F-24F Solid green
Blinking
Off
25F-26F
Solid green
(4*25G/4*10G)
Blinking green
25F-26F Off
(1*100G/1*40G)
Solid green
4. 25F-26F Port Status Indicator
5. 100G/40G QSFP28 Port
Meaning
The system is not powered up.
The module fails or resets.
The system is initializing.
The system is operational.
The temperature exceeds the threshold.
The port is down.
The port is up.
The port is receiving or transmitting data.
The port is down.
The port is connected at 25G/10G.
The port is receiving or transmitting data at 25G/10G.
The port is down.
The port is connected at 100G/40G.
