  • Page 1 TCP/IP-INT-PTX User Manual Volume 1 Manufactured by Italy...
  • Page 2 Reason Editor 28/09/2007 First Edition J. H. Berti TCP_IP-INT-PTX - User Manual Version 1.0 © Copyright 2007 R.V.R. Elettronica SpA Via del Fonditore 2/2c - 40138 - Bologna (Italia) Telephone: +39 051 6010506 Fax: +39 051 6011104 Email: info@rvr.it Web: www.rvr.it...

  • Page 3: Table Of Contents

    TCP/IP-INT-PTX Table of Contents Preliminary Instructions Warranty First Aid 3.1 Electric shock treatment 3.2 Treatment of electric burns Unpacking 4.1 General Description Installation and configuration procedure 5.1 Preparation 5.2 First Power-On and Set-Up 5.3 Management Software 6. External Description 6.1 Front Panel 6.2 Rear Panel...
  • Page 4 TCP/IP-INT-PTX This page was intentionally left blank Rev. 1.0 - 28/09/07 User Manual...

  • Page 5: Preliminary Instructions

    Operating frequency, transmitter power and other characteristics of the transmission system are subject to restrictions as specified in the licence. R.V.R. Elettronica SpA shall not be liable for injury to persons or damage to property resulting from improper use 2. Warranty or operation by trained/untrained and qualified/unqualified persons.

  • Page 6: First Aid

    • Loosen the victim’s clothing and have him/her lie down. R.V.R. Elettronica SpA Via del Fonditore, 2/2c • Call for medical help as soon as possible. 40138 BOLOGNA ITALY Tel.

  • Page 7: Unpacking

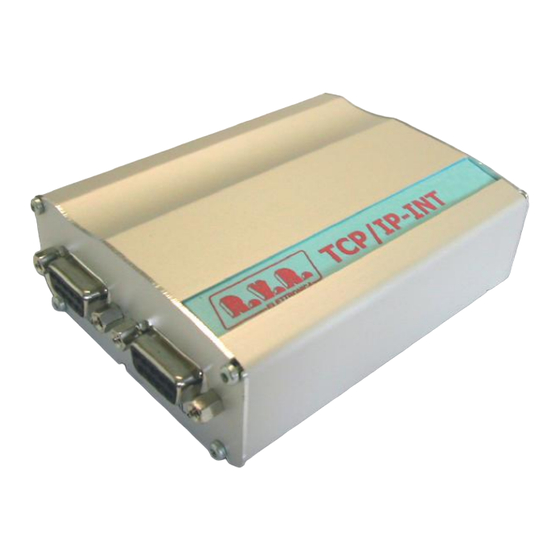

    The TCP/IP-INT-PTX connects an exciter of the PTX-LCD series (16bit version) preset for the telemetry through RS232 serial port. The TCP/IP-INT-PTX uses a 16bit DSP, that is the ideal solution to adjust the device to the specific connection needs, it also implements the protocols to exchange data through the Internet, such as ARP &...

  • Page 8: Installation And Configuration Procedure

    TCP/IP-INT-PTX Installation and configuration procedure This section provides a step-by-step description of device installation and configuration procedure. Follow these procedures closely upon first power-on and each time any change is made to general configuration, such as when a new transmission station is added or the equipment is replaced.

  • Page 9: First Power-On And Set-Up

    TCP/IP-INT-PTX Note : If you intend to connect it directly to a PC, it is necessary to use a crossover ethernet cable. This is a basic prerequisite to ensure equipment correct operation. 3) Connect the network cable to the relevant POWER connector on TCP/IP interface.

  • Page 10: Management Software

    TCP/IP-INT-PTX 2) If the User Name and the Password have not been entered and saved yet, and if no changes were made to access modes, enter RVR and RVR to enter as administrator (if access data were modified, enter the new User Name and Password).
  • Page 11 TCP/IP-INT-PTX To enter in one of the sub-menus, select the name and then click on item to enter. To go back to MAIN menu, just click on RVR logo at top left of all sub-menus. If user tries to enter a sub-menu with no prior login, or after a certain period of...
  • Page 12 TCP/IP-INT-PTX 5.3.1 Device Menu Values found here are “live readings”, and as such they can not be modified. This page shows the user the data of the exciter connected to the TCP/IP interface: Device Status Present Model Hardware Software Module connected...
  • Page 13 TCP/IP-INT-PTX Status Ready... PowerON On State Frequency 88 MHz Modulation 0 KHz Forward Power 3.3 W Reflected Power Pa Voltage 12 V PA Current 0.9 A Temperature 23.9 C % Power Out 12.5 % On Air On State Remote Off State...
  • Page 14 TCP/IP-INT-PTX General Shows is alarms are present and affect correct operation. Unlock Shows the status of lock at frequency set by PLL. S.W.R. Shows the status of possible block due to excessive SWR. Ext R.F. Mute Shows the status of power inhibition by an interlock signal.
  • Page 15 TCP/IP-INT-PTX PowerON Enables (ON) or disables (OFF) exciter power output.. Frequency Remote adjustment of exciter frequency. This value, in MHz, can be modified according to one’s own band in 0.1 MHz steps. % Power Out Remote adjustment of exciter power. This value, in %, can be modified in the range 0 to 100, in steps of 1%.
  • Page 16 TCP/IP-INT-PTX 5.3.5 Network settings Note : Access to this menu and modification of these parameters are only possible after login with administrator rights. This page not only shows the user the information about the TCP/IP interface network connection, but also allows setting various parameters.
  • Page 17 TCP/IP-INT-PTX Subnet Mask Shows and sets the subnet mask, necessary for the computer that must communicate with another IP address to know if it should route packages toward the gateway of its local network or use the address of the receiver local network.
  • Page 18 TCP/IP-INT-PTX Password Shows and sets password for enabling sending messages. Port Shows and sets the port used by TCP transmission protocol. Sender Address Shows and sets the transmission address used for sending messages. Domain name Shows and sets domain name. 5.3.5.3 POP3 menu...
  • Page 19 TCP/IP-INT-PTX 5.3.6 General settings Note : Access to this menu and modification of these parameters are only possible after login with administrator rights. This page not only shows the user the information about the exciter connected to the TCP/IP interface, but also allows setting various parameters.
  • Page 20 TCP/IP-INT-PTX Echo timeout Shows and sets waiting time for receiving the echo character for the serial protocol. Response timeout Shows and sets waiting time for receiving the response frame for the serial protocol. Uart Baud Shows and sets serial protocol speed. 5.3.6.2 Alarms menu...
  • Page 21 TCP/IP-INT-PTX Subject Shows and sets the description of the “subject” field of the mail. 5.3.6.3 Security menu General settings Run time DEVICE Enable Login ALARMS SECURITY User name (Manut.) Password (Manut.) User name (User) user Password (User) Update Menu 13 This page allows configuration of the access to TCP/IP interface via WUI.
  • Page 22 TCP/IP-INT-PTX 5.3.7 Commands menu This menu allows you to logout from WUI. Furthermore, using the Reset item, at bottom right of this menu, it is possible to restore software factory settings (back- up). Commands RESET Reset the software of the interface and restart it...

  • Page 23: External Description

    TCP/IP-INT-PTX 6. External Description This section describes the components found on the front and rear panel of TCP/ IP-INT-PTX. 6.1 Front Panel Figure 6.1 [1] SERIAL 1 DB9 connector for interface to exciter. [2] SERIAL 2 Not used - Reserved for future implementations.

  • Page 24: Connector Pinouts

    TCP/IP-INT-PTX 6.3 Connector Pinouts 6.3.1 RS232 Type: Female DB9 6.3.2 POWER Type: Female Microfit V+ (5-30VDC, power input approx 200mA) 20 / 22 Rev. 1.0 - 28/09/07 User Manual...

  • Page 25: Technical Specifications

    TCP/IP-INT-PTX 7. Technical Specifications 7.1 Electrical Specifications General specifications Power supply 5÷30 VDC with Microfit connector Dimensions 95 x 72 x 32 mm Operating temperature 0 °C to +50 °C Hardware Power supply 5÷30 VDC with Microfit connector Input/Output 1...
  • Page 26 TCP/IP-INT-PTX This page was intentionally left blank 22 / 22 Rev. 1.0 - 28/09/07 User Manual...
