R.V.R. Elettronica TELINK-SNMP2 User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

TELINK-SNMP2

User Manual

Volume 1

Manufactured by

Italy

Table of Contents

Need help?

Do you have a question about the TELINK-SNMP2 and is the answer not in the manual?

Questions and answers

Summary of Contents for R.V.R. Elettronica TELINK-SNMP2

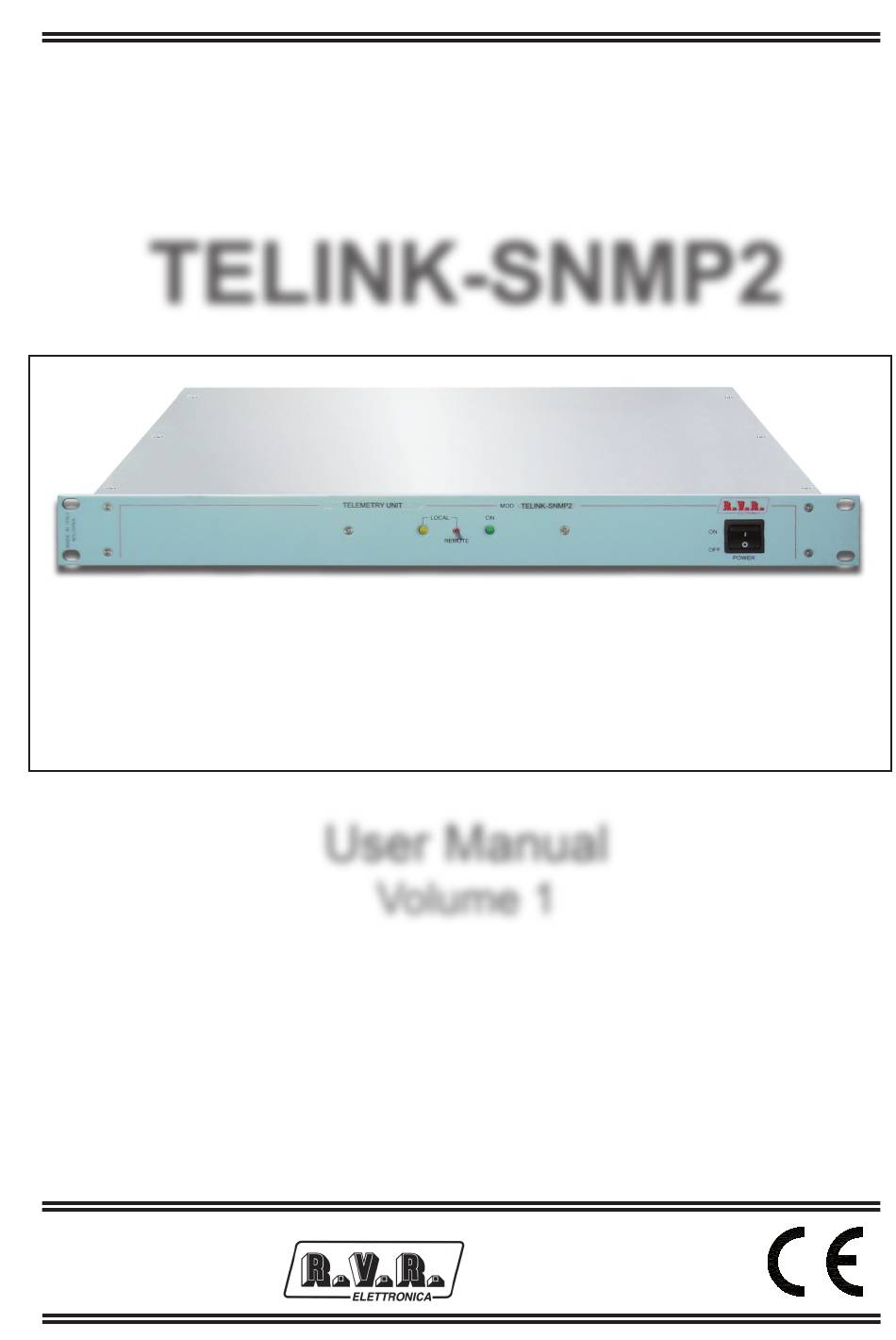

Page 1 TELINK-SNMP2 User Manual Volume 1 Manufactured by Italy...
Page 2 Editor 20/01/2012 First Edition J. H. Berti 07/02/2014 SNMP update J. H. Berti TELINK-SNMP2 - User Manual Version 1.1 © Copyright 2012-2014 R.V.R. Elettronica SpA Via del Fonditore 2/2c - 40138 - Bologna (Italia) Telephone: +39 051 6010506 Fax: +39 051 6011104 Email: info@rvr.it...
Page 3: Table Of Contents
TELINK-SNMP2 Table of Contents Preliminary Instructions Warranty First Aid Treatment of electrical shocks Treatment of electrical Burns Unpacking General Description Installation and conﬁ guration procedure Preparation First Power-On and Set-Up Management Software SNMP Telemetry External Description Front Panel Rear Panel Connector Description Technical Speciﬁ...
Page 4 TELINK-SNMP2 This page was intentionally left blank Rev. 1.1 - 07/02/14 User Manual...
Page 5: Preliminary Instructions
If it is decided to return the that the manufacturer’s instructions are been followed. unit to the factory, R.V.R. Elettronica will mail you a regular authorization with all the necessary instructions to send back the goods;...
Page 6: First Aid
• Do not interrupt the rythm of compressions when the second person is giving breath. R.V.R. Elettronica SpA Via del Fonditore, 2/2c • Call for medical assistance as soon as 40138 BOLOGNA ITALY possible.
Page 7: Unpacking
The TELINK-SNMP2, manufactured by R.V.R. Elettronica SpA, is an SNMP telemetry interface via LAN that can be connected to all standard equipment manufactured by RVR. The TELINK-SNMP2 have been designed for installation in a 1HE box for 19” rack. Two major features of TELINK-SNMP2 are compact design and user-friendliness.
Page 8: Installation And Confi Guration Procedure
Final Test Table lists all operating parameters as set and tested at the factory. Note : all cases shown below are referred to TELINK-SNMP2 connects to a TEX- LCD made by RVR.
Page 9 2) Connect the ETHERNET output of TELINK-SNMP2 interface to the appropriate input of your ADSL router or LAN network. If the connecting device is different, identify an equivalent. 3) Connect the mains cable to the relevant MAINS connector on TELINK-SNMP2 interface. User Manual Rev.
Page 10: First Power-On And Set-Up
192.168.0.XXX (where XXX is a ﬁ gure between 0 and 255, excluding 244 that is TELINK-SNMP2 interface default address). To change the IP address, follow the instructions in the manual or in the online guide and technical help, speciﬁ c for the Operating System you use.
Page 11: Management Software
TELINK-SNMP2 Note : The username to login as a maintenance is username: user and password: user, while the user name to login as administrator is username: admin and password: admin. The user names are not modiﬁ able by the user.
Page 12 5.3.1 Info Menu - Maintenance Values found here are “live readings”, and as such they can not be modiﬁ ed. To change the settings, use the General menu. This page shows the user the data of TELINK-SNMP2 interface: Menu 2 Web Software Release Shows the release of WEB ﬁ...
Page 13 With Auto-refresh disabled the measures are frozen (“Stopped”) at the time when you uncheck the box and gave available in a legible form by the current page. This page shows the user the data of the exciter connected to the TELINK-SNMP2 interface:...
Page 14 TELINK-SNMP2 Shows the lock status at frequency set by PLL. Audio Alarm Shows the status of an impasse due to excessive SWR. Power Good Shows the status of power good. Foldback Shows the triggered status of the foldback function (automatic reduction of output power).
Page 15 TELINK-SNMP2 5.3.3 Alarm List - Maintenance Values found here are “live readings”, and as such they can not be modiﬁ ed. To change alarms settings, use the Alarm Delete menu. Within this menu you can display all alarms saved by the system: any new event will automatically delete the older ones.
Page 16 TELINK-SNMP2 5.3.4 Password - Maintenance This page allows the conﬁ guration of login as a maintenance of TELINK-SNMP2 interface via WUI. Please note that the User Name (user) can not be changed. Menu 5 Value Shows and set the password for maintenance user (enables read- only parameter).
Page 17 Note : Access to this menu and modiﬁ cation of these parameters are only possible after login with administrator rights. This page not only shows the user the information about the TELINK-SNMP2 interface, but also allows setting various parameters. Following is a description of the items that allow modiﬁ cation of the parameter, with respect to the Info menu.
Page 18 This page not only shows the user the information about the exciter connected to the TELINK-SNMP2 interface, but also allows setting various parameters. The upper part allows you to enable or disable the Auto-refresh by clicking on the relevant box.
Page 19 This page shows the user the alarms of the exciter connected to the TELINK- SNMP2 interface: Menu 8 Log File By pressing the AlmLog.log highlighted you can download onto your PC, or browser device, the alarm list stored in TELINK-SNMP2. 20-Nov-2013_18:18 - Type 000 “Forward Power”; 20-Nov-2013_18:20 - Type 000 “Forward Power”;...
Page 20 Note : Access to this menu and modiﬁ cation of these parameters are only possible after login with administrator rights. This page allows the conﬁ guration of login as a maintenance or administrator of TELINK-SNMP2 interface via WUI. Please note that the User Name (user) and Admin name (admin) can not be changed.
Page 21 Note : Access to this menu and modiﬁ cation of these parameters are only possible after login with administrator rights. This page not only shows the user the information about TELINK-SNMP2 interface network connection, but also allows setting various parameters.
Page 22 Set the new second DNS server address (Domain Name System). Download MIB ﬁ les By pressing the MIB.ZIP highlighted you can download onto your PC, or browser device, the MIB ﬁ les stored in TELINK-SNMP2. 18 / 34 Rev. 1.1 - 07/02/14...
Page 23 Note : Access to this menu and modiﬁ cation of these parameters are only possible after login with administrator rights. This page not only shows the user the information about TELINK-SNMP2 interface network connection, but also allows setting various parameters.
Page 24 TELINK-SNMP2 Dest. 1 trap IP , port , Ty Shows the second trap destinations with the IP, Port and Type of trap to which alarm warning mail messages shall be sent. Dest. 2 trap IP , port , Ty Shows the third trap destinations with the IP, Port and Type of trap to which alarm warning mail messages shall be sent.
Page 25 TELINK-SNMP2 5.3.10 Upgrade - Administrator This page allows the user to update the TELINK-SNMP2 interface. Press the Send button to conﬁ rm the upgrade; press the Cancel button, the parameter setting will remain as previously set. Menu 13 Browse Allows to types the full pathname directly into the input box or you can search the update ﬁ...
Page 26: Snmp Telemetry
TELINK-SNMP2 5.4 SNMP Telemetry The SNMP interface is based on IRT-FM-Single-Transmitter-MIB and the tree follows. Menu 14 Note : there is a speciﬁ c MIB depending on the conﬁ guration of the station. In the IRT MIB you can power on or off the transmitter, view the state of some...
Page 27 TELINK-SNMP2 Update OID Network parameter Update OID Trap param Update OID Agent Force NTP sync. call Menu 15 - Interface-Info tree and subtree You can change IP data, NTP data, trap data like via web interface. Like in WEB interface to enable the new data need to send: 1) OID apply-change to update the IP information of the Ethernet interface.
Page 28 TELINK-SNMP2 System Name and Location Menu 17 - MIB2/System tree Menu 18 - Trap receiving Menu 19 - Received trap details 24 / 34 Rev. 1.1 - 07/02/14 User Manual...
Page 29: External Description
TELINK-SNMP2 6. External Description This section describes the components found on the front and rear panel of TELINK-SNMP2. 6.1 Front Panel Figure 6.1 [1] LOCAL Yellow LED - Lit on when the equipment is in local mode. [2] REMOTE Switch to select the local or remote control modes.
Page 30: Rear Panel
TELINK-SNMP2 6.2 Rear Panel Figure 6.2 [1] GROUND Ground connection. [2] FUSE BLOCK Fuse carrier.Use a screwdriver to access the fuse. Contains two general protection fuses rated 2 A. [3] PLUG VDE plug for mains power supply. [4] I2C MASTER DB9 female connector for I2C bus.
Page 31: Connector Description
TELINK-SNMP2 6.3 Connector Description 6.3.1 I2C Connectors Type: DB9 Male & Female N.C. N.C. N.C. N.C. N.C. 6.3.2 RS232 Type: DB9 Male N.C. N.C. N.C. N.C. N.C. N.C. 6.3.3 SERVICE Type: DB9 female User Manual Rev. 1.1 - 07/02/14 27 / 34...
Page 32 TELINK-SNMP2 6.3.3 ETHERNET Type: RJ45 female N.C. N.C. N.C. N.C. 28 / 34 Rev. 1.1 - 07/02/14 User Manual...
Page 33: Technical Specifi Cations
TELINK-SNMP2 7. Technical Speciﬁ cations TELINK-SNMP2 P P arameters G G ENERALS 100-240 VAC ±15% , Full-Range Primary Power 483 x 44 x 238 mm Phisical Dimensions (W x H x D) 4 kg Weight -10 to + 50 °C...
Page 34: Working Principles
TELINK-SNMP2 8. Synoptics LED Identiﬁ cation On the back of the card, visible from rear panel, are located 2 synoptics LED panels. Information is available below. • SYNOPTIC 1 RX RS232 Green Led - Blinks during data reception in SERVICE connector.
Page 35: Identifi Cation And Access To The Modules
TELINK-SNMP2 9. Identiﬁ cation and Access to the Modules The TELINK-SNMP2 is made up of various modules linked to each other through connectors so as to make maintenance and any required module replacement easier. 9.1 Upper View The ﬁ gure below shows the equipment upper view with the various components pointed out.
Page 36: Hardware Restoring Ip Address
TELINK-SNMP2 10. Hardware Restoring IP Address Following the procedures described here below, allows you to force an hardware reset on TELINK-SNMP2 to restore IP address to factory settings. 1) Remove mains supply and the equipment cover. Figure 10.1 2) Put “ON” the switch number 7.
Page 37 TELINK-SNMP2 3) Put “ON” the equipment and wait who the led “attention” and “snmp” alternate blinking. Figure 10.3 4) Put “OFF” the switch number 7 and restart the equipment. 5) Connect to equipment at default address 192.168.0.244 in WEB mode and in the page “Network”...
Page 38 TELINK-SNMP2 This page was intentionally left blank 34 / 34 Rev. 1.1 - 07/02/14 User Manual...
