Data View

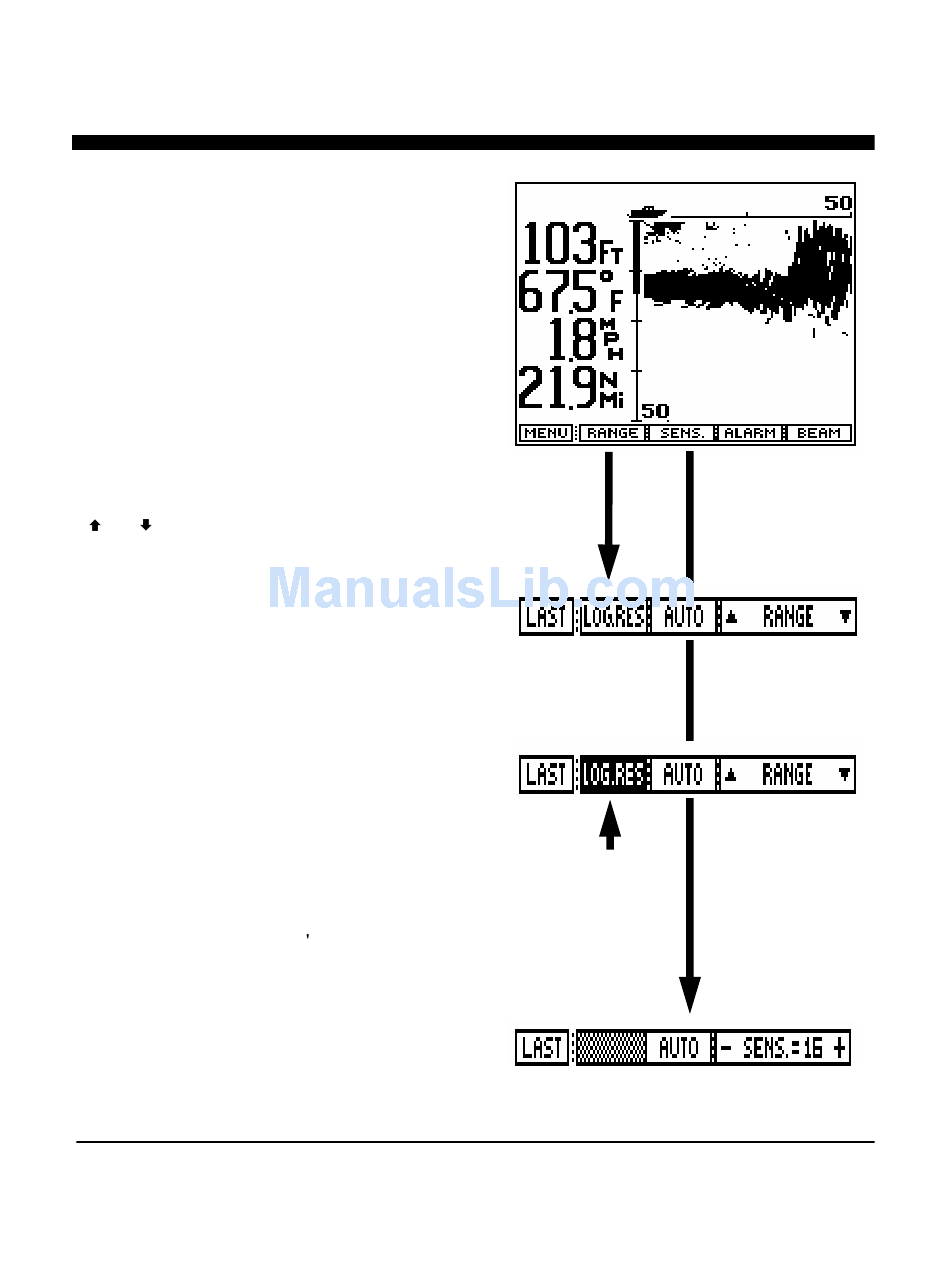

From the Control Center, press the soft key labeled
"DATA" to see a split screen display with large digits on
the left and a forward scanning view on the right. The
large digits show the digital depth and, if your Probe is
equipped with the optional speed/temperature transducer,
the boat speed, surface water temperature, and distance
traveled log.

Range Adjustment

Press the button labeled "RANGE" to bring up the Range
Adjustment soft key menu. Press the button labeled
"AUTO" if you would like the Probe's internal
microprocessor to automatically select and adjust the
depth range as bottom conditions change. To manually
adjust the depth, press either the range buttons labeled
" " or " " or rotate the front panel knob. If you make a
manual depth adjustment, the AUTO range mode is
turned off and will remain off until the button labeled
AUTO is again selected. Note: when in the AUTO
mode, the soft key labeled "AUTO" will be shown in
reverse video (white on black). To return to the main
forward looking menu, press the soft key labeled LAST.
Log Res. (Distance log reset)
If your Probe is equipped with the optional speed/
temperature transducer, the Probe will automatically keep
a distance traveled log. You can reset this log to zero by
pressing the "Log Res." soft key.
Note: The Probe internal memory keeps the Probe's
distance log data, even when power is removed. To
zero out the distance log, press the softkey labeled
"Log Res.".

Sensitivity Adjustment

Press the soft key labeled "SENS." to bring up the choices
available for adjusting the Probe s receiver sensitivity.
Press the button labeled "AUTO" so that the word AUTO
is shown in reverse video (white letters on a black
background) if you would like the Probe to automatically
adjust sensitivity for changing conditions. To manually
adjust the sensitivity press the button labeled "- Sens" or
"Sens.+" to increase or decrease the receiver gain. Note
that the soft key shows a number which indicates the
relative sensitivity being used. When you choose to
manually adjust the sensitivity, the Probe turns off the
35
