Language Selection; Transducer Level Adjustment - Interphase Proble Operation Manual

The choices and their settings are as follows:
Feature U.S.
Depth/Range Feet
(Ft.)
Water Temp F
(ºF)
Boat Speed Mi./Hr. Knots
(MPH)
Distance Log Miles
(Mi)
Nav. Track Plot Miles
(Mi)

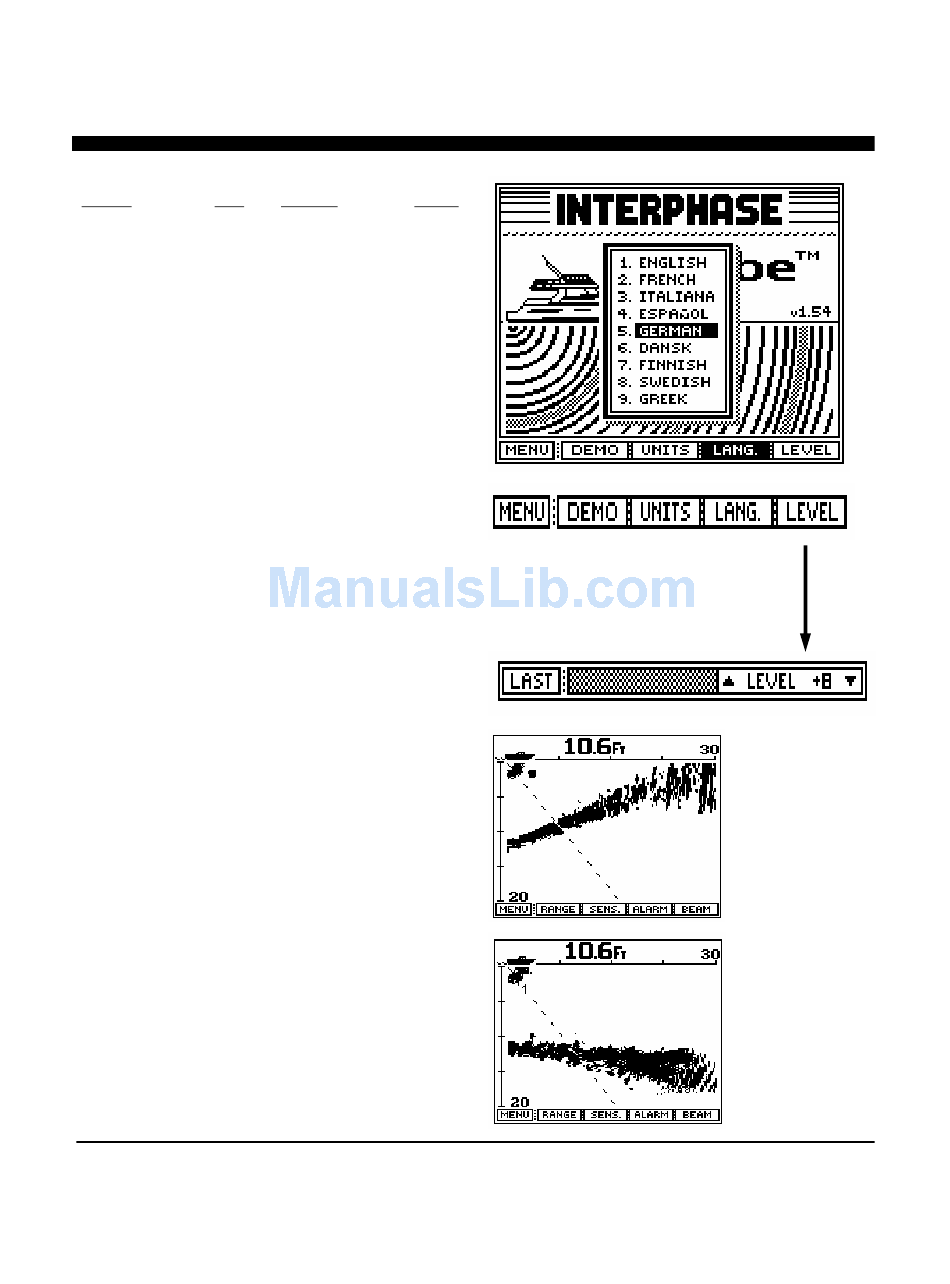

Select Menu Language
The Probe allows the selection of 9 operating languages;
English, French, Italian, Spanish, German, Danish,
Finnish, Swedish and Greek may be chosen. To select the
operating language, press the button labeled LANG. A
display window as shown at right will pop up on the
screen showing the available languages and the one
currently selected. Use the large front panel knob labeled
BEAM to change (highlight) the language selection. Once
selected, press any key to save your selection and exit.

Transducer Level Adjustment

The Probe also includes an adjustment to compensate for
transducer installation problems, especially thru-hull
installations, where the transducer is not perfectly vertical
to the water's surface. This problem can be caused by
improper installation, or by changes in the boats fore/aft
weight.
When the boat is over a known level bottom, the forward
display should show a level line. If the bottom display is
slanted upward or downward (as in the pictures at right),
Press the button labeled LEVEL in the SET-UP View as
shown at right above. In the LEVEL menu, notice the
number which indicates the relative amount of correction
in degrees. It is possible to adjust +/- 15 degrees. Positive
numbers will tend to make the bottom slope upwards and
negative numbers will make the bottom slope downwards.
After making the adjustment, go to the forward display
and verify the correction. Once adjusted, the Probe's
memory will retain the setting.
Nautical Metric
Fathoms Meters
(Fa) (M)
F C
(ºF) (ºC)
Knots
(KT) (KT)
Naut. Mi Naut.Mi
(NMi) (NMi)
Naut. Mi Naut.Mi
(NMi) (NMi)
25
A known level
bottom, but
display slopes
upwards. Correct
by adjusting
LEVEL control
in direction of
negative numbers.
A known level
bottom slopes
downwards on
display. Correct
by adjusting
LEVEL control in
direction of
positive numbers.
