Chart View

(Conventional downlooking)
The Probe's phased array transducer can be electronically
steered to look directly below the boat. In this mode the
Probe LCD display will show a picture like conventional
fixed beam down-looking fish finders. When in this mode,
the Probe offers a full range of sophisticated features which
are found on advanced conventional depth sounders such as
split screen zoom, bottom lock, fish and depth alarms, bottom
hardness (white-line), plus several other features.

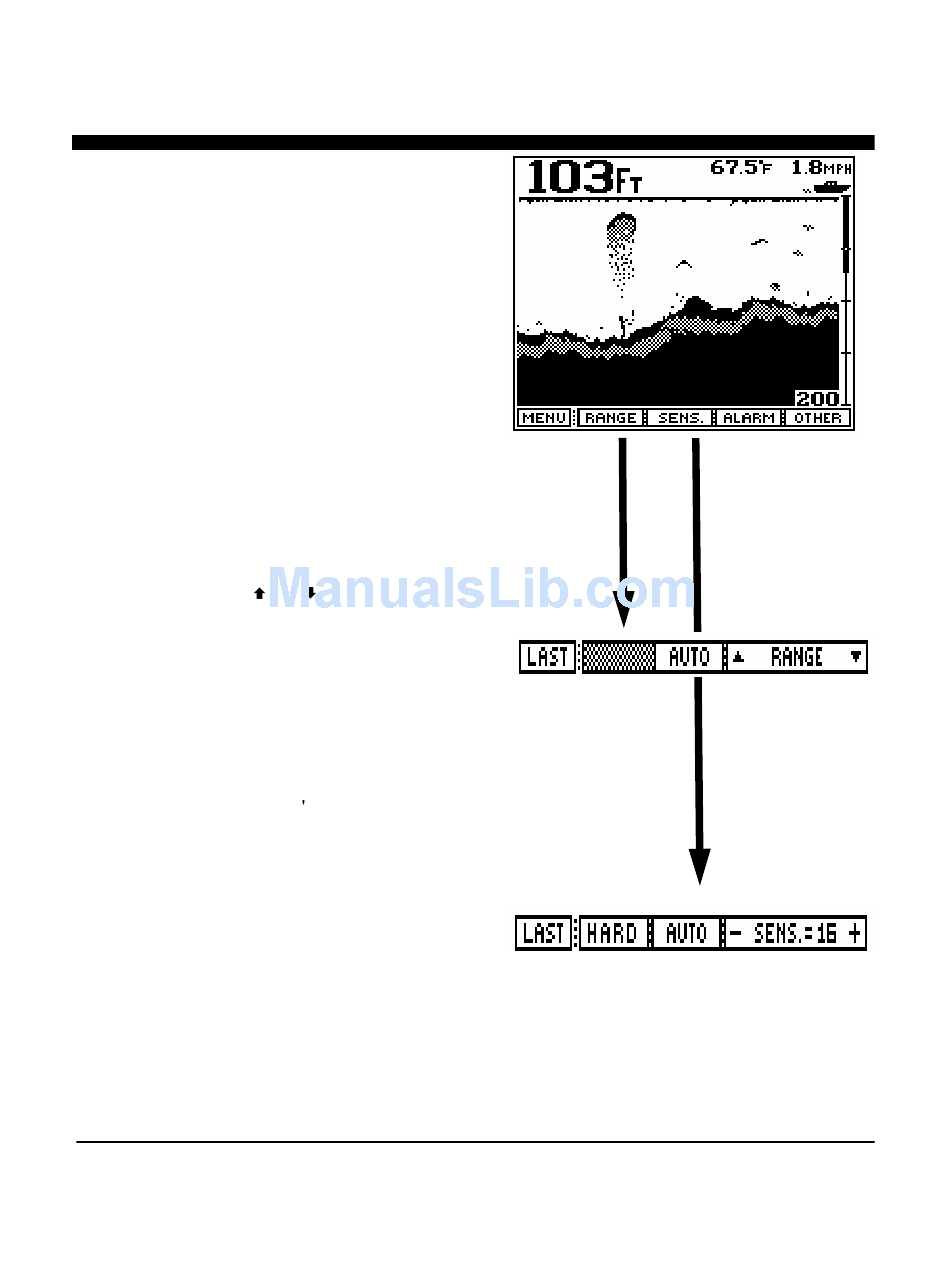

From the Command Center select the "CHART" View and
press the "GO" soft key to bring up the menu showing the
features and adjustments for this view. The display should be
similar to that at right.

Range Adjustment

Press the button labeled "RANGE" to bring up the Range
Adjustment soft key menu. Press the button labeled "AUTO"
if you would like the Probe's internal microprocessor to
automatically select and adjust the depth range as bottom
conditions change. To manually adjust the depth, press either
the range button labeled " " or " ". If you make a manual
depth adjustment, the AUTO range mode is turned off and
will remain off until the button labeled AUTO is again
selected. Note: when in the AUTO mode, the soft key
labeled "AUTO" will be shown in reverse video (white on
black). To return to the main forward looking menu, press the
soft key labeled "LAST". (To return to the Control Center
press the soft key labeled "MENU")

Sensitivity Adjustment

Press the soft key labeled "SENS" to bring up the choices
available for adjusting the Probe s receiver sensitivity. Press
the button labeled "AUTO" so that the word AUTO is shown
in reverse video (white letters on a black background) if you
would like the Probe to automatically adjust its sensitivity for
changing conditions. To manually adjust the sensitivity,
press the button labeled "- Sens" or "Sens+" to increase or
decrease the receiver gain. Note that the soft key shows a
number which indicates the relative sensitivity being used (+1
to +32). When you choose to manually adjust the sensitivity,
the Probe turns off the AUTO sensitivity mode and it will
remain off until the AUTO soft key is again selected. Note:
when AUTO mode is turned on the word will be displayed
in reverse video (white letters on a black background). To
exit the sensitivity menu and save your adjustments simply
press the soft key labeled "LAST" to return to the main
forward looking menu.
