HONDA ACCORD
GVIF - PAS
(VIDEO Interface)
MODEL
GVIF-PAS-141203
DATE
2015.09.30

Advertisement

loading
Need help?

Need help?

Do you have a question about the GVIF-PAS-141203 and is the answer not in the manual?

Questions and answers

Related Manuals for KAP GVIF-PAS-141203

Summary of Contents for KAP GVIF-PAS-141203

  • Page 1 HONDA ACCORD GVIF - PAS (VIDEO Interface) MODEL GVIF-PAS-141203 DATE 2015.09.30...
  • Page 2 Main Spec. 1. Input Spec. (MULTI VIDEO INTERFACE) - 2 x A/V Input (External video source). - 1 x CVBS(REAR CAMERA) Input. (Rear camera source) - 1 x CVBS(FRONT CAMERA) Input. (Front camera source) - 1 x Analog RGB Input (Navigation System output) - 1 x GVIF Input.

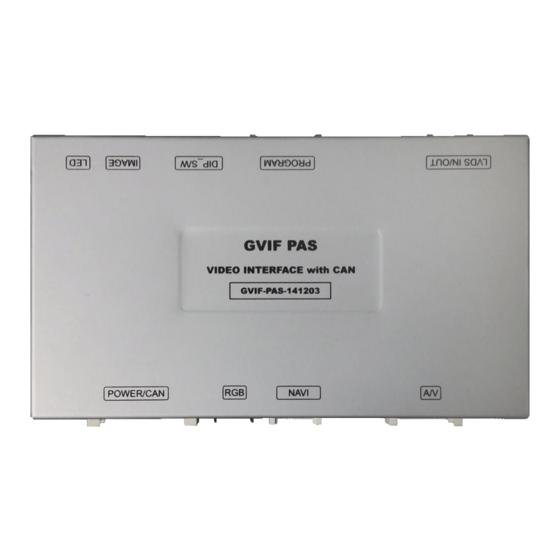

  • Page 3: External Appearance

    External Appearance DIP S/W LVDS IN/OUT AV(IN/OUT) POWER/CAN NAVI(IN)

  • Page 4: Connector Pin Assignment

    Connector Pin Assignment *POWER Connect *NAVI Connect ① ② ③ ④ ⑤ ⑥ ⑦ ① R DATA (Red) 1. ACC (Red) 13. Battery (Yellow) ② G DATA (Green) 2. ACC (Red) 14. GND (Black) ③ B DATA (Blue) 3. REAR-DET (Brown) 15.

  • Page 5: Product Composition

    Product Composition GVIF IN/OUT Cable 1 EA Power Cable 1 EA Interface 1 EA RGB Navi Cable 1 EA A/V Cable 1 EA OSD Board 1 EA Mode S/W 1 EA...
  • Page 6 Product Composition Option Not for sale : HDMI Cable 1 EA Option : Sub Board 1 EA Option : RGB Cable 1 EA...

  • Page 7: Dip S/W Setting

    DIP S/W Setting * ON : DOWN , OFF : UP * DIP S/W Example FUNCTION DIP S/W Selection ACCORD ON : Not Used NAVI OFF : Used ON : Not Used DVB-T(AV1) OFF : Used ON : Not Used DVD(AV2) OFF : Used ON : Not Used...

  • Page 8: Mode Change

    Mode Change NOT USE Steer wheel button Use Steer wheel button Push Long NAVI...
  • Page 9 OSD(On Screen Display) Control OSD Control Board MENU DOWN MENU Push -> OSD menu On/Off Item Selection, Value Selection Item up Increase selected value DOWN Item down Decrease selected value Mode State First Menu Second Menu Third Menu...
  • Page 10 OSD(On Screen Display) Control First Menu Second Menu Third Menu Action Original Camera RearCam-Type ExtDevice Use aftermarket Rear camera Rear camera get +12V consistently RearCam-Power AUTO Rear camera get +12V when reverse gear on Shut out the power supply. Original Camera FrontCam-Type Option ExtDevice...
  • Page 11 OSD(On Screen Display) Control NAVI-RGB menu DVD,DVB-T(DMB),NAVI-AV,REAR,FRONT menu First Menu Second Menu Third Menu Action First Menu Second Menu Third Menu Action Brightness Adjust the value of brightness Brightness Adjust the value of brightness Contrast Adjust the value of contrast Contrast Adjust the value of contrast Color-RED...
  • Page 12 OSD(On Screen Display) Control OSD Setting– Screen Mode - Horizontal - Vertical - Scaler X Up - Scaler X Down - Scaler Y Up - Scaler Y Down...
  • Page 13 OSD(On Screen Display) Control OSD Setting – Parking Mode On/Off PARKING LINE ON PARKING LINE OFF...
  • Page 14 OSD(On Screen Display) Control OSD Setting – Front Camera Auto Mode NAVI NAVI REAR FRONT AV1(DVB-T) AV1(DVB-T) AV2(DVD) AV2(DVD) 1~30 second...
  • Page 15 OSD(On Screen Display) Control OSD Setting – Utility Mode - Factory Reset : Execute - Reset All (Setting Default) - Version : FW Version Finish update FW, check the FW version Last Source : BEPP06SGX-130950 Software Version Software Month Software Year Special Version National : CN=CHINA, KR=KOREA, JP=JAPAN, US=United States Hardware Version...
  • Page 16 Install Manual 1. Installation Diagram Monitor LVDS IN/OUT Head Unit GVIF-PAS INTERFACE POWER/CAN NAVI...
  • Page 17 Install Manual 2. Installation Navigation Connection *KD-900 navigation SYNC BLUE GREEN Analog RGB 24. GND (Black) 23. GND (Black) 22. Mode (Green) 21. GND (Black) 20. NC 19. NC 18. GND (Black) 17. FRONT-POWER (Red) 16. GND (Black) 15. REAR-POWER (RED) 14.
  • Page 18 Install Manual 3. Installation External Reverse(Rear) Camera Connection : OSD Screen selection WIRE/CAN 24. GND (Black) 23. GND (Black) 22. Mode (Green) 21. GND (Black) 20. NC 19. NC REAR-POWER (Red) 18. GND (Black) 17. FRONT-POWER (Red) 16. GND (Black) 15.
  • Page 19 Install Manual 4. Installation External Front Camera Connection 24. GND (Black) 23. GND (Black) 22. Mode (Green) 21. GND (Black) 20. NC 19. NC FRONT-POWER (Red) 18. GND (Black) 17. FRONT-POWER (Red) 16. GND (Black) 15. REAR-POWER (RED) 14. GND (Black) 13.
  • Page 20 Install Manual 5. Installation External HDMI cable MHL Cable ① or ② ① Galaxy ② RGB Cable Sub Board HDMI Cable iPhone5...
  • Page 21 Install Manual ② ① Take out Silver COVER Take out ③ ④ Take out COVER Take out COVER...
  • Page 22 Install Manual ⑥ ⑤ Take out BOLT Take out BOLT ⑦ ⑧ Take out Cover Take out BOLT...
  • Page 23 Install Manual ⑨ Take out BOLT Take out BOLT ⑪ ⑫ Take out Cover Take out COMMAND...
  • Page 24 Install Manual GVIF CABLE connection OEM GVIF Connector...
  • Page 25 Install Manual . POWER CABLE connection OEM POWER Connector...
  • Page 26 Install Manual Parking Line Control OSD Control Board Parking Line Left Parking Line Left Parking Line Right MENU DOWN Parking Line Right Parking Line Down Parking Line Down Parking Line Up * Parking Line can move to Left/Right/Up/Down Parking Line Up...
  • Page 27 Q & A 1. If Interface has a problem, Please check LED. - ACC on (12v), If Interface does not have a problem; GREEN LED is blinking every 1 sec.. LED is turn on (not blinking), Interface has a problem. LED is turn off every 1 sec, there is no input.
