- Page 1 Instruction Manual MB 2019 NTG6.0 TC2 Mercedes Benz - NTG 6.0 VIDEO INTERFACE MB-PAS-190319 MODEL. 2020.04.01 D A T E . Korea Auto Parts www.kaptrade.com...
- Page 2 Spec 1. Input Spec (MULTI VIDEO INTERFACE) • 2 x A/V Input (External video source). • 1 x CVBS(REAR CAMERA) Input (Rear camera source) • 1 x CVBS(FRONT CAMERA) Input (Front camera source) • 1 x Analog RGB Input (Navigation System output) •...
-

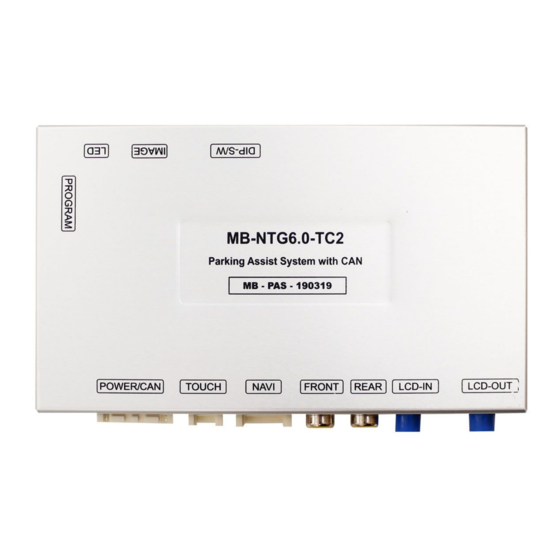

Page 3: External Appearance
External Appearance IMAGE DIP S/W POWER/ FRONT LVDS LVDS CAMERA Touch ANALOG REAR CAMERA... -
Page 4: Connector Pin Assignment
Connector Pin Assignment POWER Connect (8Pin) ■ ■ ■ ■ ■ ■ ■ ■ Color YELLOW ORANGE GREEN PURPLE WHITE BROWN BLACK REAR POWER CAN-HIGH CAN-LOW CAN-HIGH CAN-LOW REAR DETECT Connect NAVI TOUCH Connect (4Pin) ■ ■ ■ ■ Color GREEN BLUE WHITE... -
Page 5: Product Composition
Product Composition Board RGB NAVI Cable OSD Board Power Cable – Cut Wire LVDS Cable – 2PIN... -
Page 6: Dip Switch Setting
Dip Switch Setting OFF : ▲UP ON : ▼DOWN FUNCTION DIP S/W Selection ON : Not Used NAVI OFF : Used ON : Not used DVB-T OFF : used ON : Not used OFF : used CAR type SEL Picture Car Type Select Mercedes Benz Mercedes Benz... -
Page 7: Mode Change
Mode Change Command controller Control A-CLASS 12.3” Mode Change Button : RADIO | MEDIA Button • Press for long to change mode Mode Change Sequence Original Original NAVIGATION Screen Screen NAVI... - Page 8 Mode Change Steering Wheel Control A-CLASS 8.0” / SPRINTER 12.3”/ 8.0” Mode Change Button : Back Button • Press for long to change mode Mode Change Sequence Original Original NAVIGATION Screen Screen NAVI...
- Page 9 Mode Change NAVI Button Control SPRINTER 12.3”/ 8.0” Mode Change Button : NAVI | MAP Button • Press for long to change mode Mode Change Sequence Original Original NAVIGATION Screen Screen NAVI...
-
Page 10: Touch Control
Touch Control Touch Calibration / DVBT, DVD Control Method 1 Method 2 • Touch the screen for 11 seconds • OSD menu ▶ Utility ▶ Calibration Touch Calibration • + Touch according to the shape coordinates. Press Touch (Anywhere) Press Icon DVBT... -
Page 11: Osd Control
OSD Control OSD(On Screen Display) Control Board MENU DOWN • The OSD screen can be switched ON/OFF MENU • Return to previous menu • Select the currently active item • If the OSD screen is off, mode changes can be made. •... - Page 12 OSD Control Option First Menu Second Menu Third Menu Description DIGTAL- NAVI-RGB INAVI Setting the Connected NAVI Model ELT_DVBT20 DVB-T(DMB) Setting the Connected DVB-T Model Config ELT_980XU Slim Setting the Connected DVD Model Reset Execute Reset to default value of Config menu...
- Page 13 OSD Control Option First Menu Second Menu Third Menu Description Original Camera RearCam-Type ExtDevice Equipped with external camera + 12V continuous supply RearCam-Power AUTO + 12V supply only in Rear camera mode + 12V off GEAR Detected by CAN RearCam-Det WIRE Detected by Rear-Det Wire Original Camera...
- Page 14 OSD Control Option First Menu Second Menu Third Menu Description DVB-T device control UI output function UI DVB-T (DMB) Disable feature DVD device control UI output function UI DVD Disable feature Option Set up manufacturer of woodworking FINE device for UART Touch use NAVI COM Disable feature Reset...
- Page 15 OSD Control Option ▶ FrontCam-RcvOpt Front Camera Auto Mode OEM or REAR FRONT OEM or INTERFACE CAMERA CAMERA INTERFACE Select time of display 0~30 second 0 second FrontCam-RcvOpt Menu OFF 1~30 second FrontCam-RcvOpt Menu ON & time control...
- Page 16 OSD Control Screen First Menu Second Menu Third Menu Description Horizontal Output screen horizontal movement Vertical Output screen vertical movement Scale X Up Reduce / increase output screen width Screen Scale X Down Scale Y Up Reduce / Increase Output Screen Height Scale Y Down Reset Screen menu all reset...
- Page 17 OSD Control Parking First Menu Second Menu Third Menu Description Show parking line Line Display Do not show parking lines Warnings Lang Set warning text language Parking Horizontal Moving a parking line horizontally Vertical Moving a parking line vertically Transparency Parking line transparency Reset Parking menu all reset...
- Page 18 OSD Control First Menu Second Menu Third Menu Description value Horizontal OSD Menu Horizontal Shift value Vertical OSD menu vertical Shift value Display Time OSD Menu Display Time (in seconds) value OSD menu transparency Transparency Language OSD menu display language Reset Execute Initialize OSD settings...
- Page 19 OSD Control Utility First Menu Second Menu Third Menu Description Factory Reset Execute Initialize all settings Calibration Execute Run Calibration mode Utility FDS302KRX-171004 Version (Check for future upgrades) • Last Source : FDS302KRX-171004 FD S3 02 KR X - 17 10 04 Motor Model Hardware National...
- Page 20 Install Manual 1. Installation Diagram MB-NTG6.0-TC2 Parking Assist System with CAN POWER/CAN TOUCH NAVI FRONT REAR LCD-IN LCD-OUT DVD-IR DVBT-IR SYNC BLUE GREEN Monitor Command...
- Page 21 Install Manual SPRINTER - Power / LVDS connection SPRINTER 12.3” SPRINTER 8.0”...
- Page 22 Install Manual A-CLASS - Power / LVDS connection A-CLASS 12.3” A-CLASS 8.0”...
- Page 23 A-912 RM Tera-Tower2, 201 Songpa-Daero, Songpa-gu, Seoul, Korea F. (+82) 6204-0913 E. kap@kaptrader.com...
