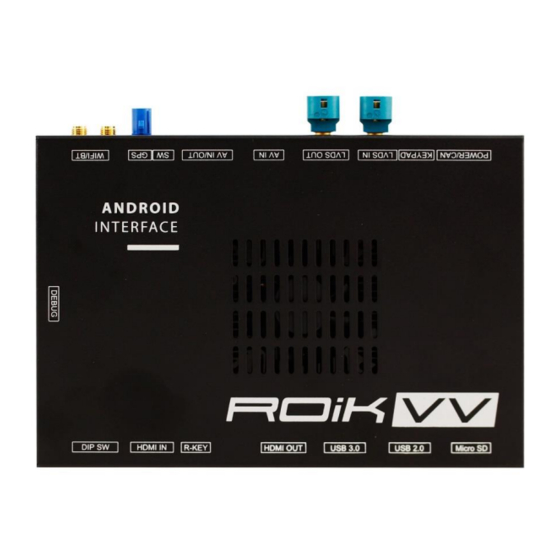

- Page 1 Instruction Manual 2018 NEW ROiK-VV ANDROID INTERFACE DATE. 2018.10.15 Korea Auto Parts www.kaptrade.com...
- Page 2 COMPONENTS ROiK-VV Power/CAN Cable Universal Cable LVDS Cable AV Cable IR Cable External GLONASS Speaker WiFi/BT Antenna x 2 GPS Antenna Key Pad...
- Page 3 SPEC ※ ANDROID Android 7.1.2(Nougat) Six-Core 64bit Server Class Cortex-A72 Core @2.0Ghz, Mali-T860 Quad-Core GPU (Total Ten-Core) H.264/H.265/VP9 up to 4Kx2K@60fps (4K Video) Memory 2GB DDR3 USB2.0 High Speed Port x 1 USB 3.0 USB3.0 5.0Gbps Port x 1 Wireless 2.4GHz/5GHz Dual-Band WiFi, Support 802.11a/b/g/n/ac, Bluetooth 4.1 Ublox8 GPS(GLONASS/BEIDOU/GALILEO/QZSS/SBAS)
- Page 4 DIP S/W INFORMATION ON 1 Pin No. External Rear Camera Orignal Rear Camera External Front Camera Skip External Front Camera OEM Rear Cam NO OEM Rear Cam IR for ASUKA Touch IR for Remote Controller Using 360 AVM 360 AVM not used Selection of Car Model (Only Off) ※...
- Page 5 DIP S/W INFORMATION Pin No. Use External GPS Antenna Use Car GPS Cable (DIP S/W 2 Must ON) (Option)
-
Page 6: Connector Pin Assignment
CONNECTOR PIN ASSIGNMENT Power Cable 11 13 8 10 12 14 16 (POWER/CAN) Yellow Purple Green Gray White Brown BATTERY 12V_OUT REVERSE ECU_CAN_H MON_5V_IN BUTTON_KEY Black Blue Orange Blue REAR_12V OMNI_KEY ECU_CAN_L POWER/CAN AV IN AV IN/OUT AV Cable 9 11 13 15 (AV IN) 8 10 12 14 16... - Page 7 OEM BUTTON USAGE After the car is powered on and the OEM screen is output, You can change the mode to ROiK screen after 20 seconds. Button Press Function Press Long the Button for 2 sec Change to ROIK Press the Button 2 time Change to HDMI Press the Button 3 time Home...
-
Page 8: Screen View
SCREEN VIEW Main Screen Apps Screen Function Button Floating Button Floating Button (Back, Home button, Multitasking button, External speaker button) Quick icon for Navigation Application NAVIGATION YouTube Quick icon for Youtube Multimedia Quick icon for Multimedia Application Music Player Music player Widget Time &... - Page 9 SCREEN VIEW – Split Screen Mode Long Press Normal Split Screen Mode Mode 1. Multitasking button Long press 2. Press Home button in Split Screen Mode 4. Enjoy Split Screen Mode 3. Select application ※ Some apps are not work on Split Screen Mode mode...
- Page 10 CONNECT CAN/POWER DIAGRAM 1. Connect CAN, BAT, GND to wire between car body and passenger's door passenger's door Wire Color Battery Ground Black / Mint BUTTON KEY MON 5V IN Wire Color CAN H Violet / White ( p5 ) BUTTON KEY MON 5V IN CAN L...
- Page 11 DVB-T CONNECTION DIAGRAM FOR AV INPUT IR – DVB-T DO NOT USE. DO NOT USE. Open the cover of DVB-T. Connect ‘DVBT-IR’ provided to ‘A’ on picture DO NOT USE. 1 3 5 7 11 13 19 21 1 3 5 7 9 11 13 15 2 4 6 8 10 12 14 16 20 22 2 4 6 8 10 12 14 16...
- Page 12 HEADREST MONITOR ※ Headrest Monitor (HDMI Out) HDMI HDMI ANDROID INTERFACE DIP SW HDMI IN R-KEY HDMI OUT USB 3.0 USB 2.0 MicroSD When connecting two or more monitors, An additional HDMI Splitter is required.
-
Page 13: Device Settings
DEVICE SETTINGS Function Button RESET SETTINGS Reset settings to default RESET DEVICE System Reboot External Speaker Turn on/off external speaker Softkey Enable Using or not using soft keys Startup App Select Startup APP Cooling Fan Turn on / off Cooling Fan HDMI Out Turn on / off HDMI Out Use Default Icon... -
Page 14: Firmware Upgrade
FIRMWARE UPGRADE Recommend Copy ‘system_roik10’ folder to USB Memory root and insert to USB1 Port. Select Upgrade Menu, it will start upgrade *‘/usb disk/system_roik10’ Folder have ‘update.img’ file * If there is no update file, "Upgrade Device" menu is not show ※... -
Page 15: Factory Reset
FACTORY RESET Setting ▶ Backup & Reset ▶ Factory data Reset Select “RESET DEVICE” = Factory Reset Wait until restart unit ※ After reboot system, it takes 3~4 min... -
Page 16: Interface Setting
INTERFACE SETTING ANDROID INTERFACE DIP SW HDMI IN R-KEY HDMI OUT USB 3.0 USB 2.0 MicroSD Enter the setting menu MENU Select setting menu Moving Up Moving Down DOWN... -
Page 17: Quick Info
USE PAS-LINE SETTING Select “REAR” To use pas line, you can use it after selecting line on the setting screen Select “Parking guide line” QUICK INFO ANDROID INTERFACE DIP SW HDMI IN R-KEY HDMI OUT USB 3.0 USB 2.0 MicroSD To Enter Quick Info. - Page 18 A-912 RM Tera-Tower2, 201 Songpa-Daero, Songpa-gu, Seoul, Korea T. (+82) 6204-0912 F. (+82) 6204-0913 E. kap@kaptrader.com...
