- Page 1 Instruction Manual GVIF PAS TDIE LAND ROVER INTERFACE VIDEO INTERFACE GVIF-PAS-160708 MODEL. 2019.03.29 D A T E . Korea Auto Parts www.kaptrade.com...
- Page 2 Spec 1. Input Spec. (MULTI VIDEO INTERFACE) • 1 x Digital RGB Input (Navigation System output) • 1 x Analog RGB Input (Navigation System output) • 2 x A/V Input (External video source). • 1 x CVBS(REAR CAMERA) Input. (Rear camera source) •...
-

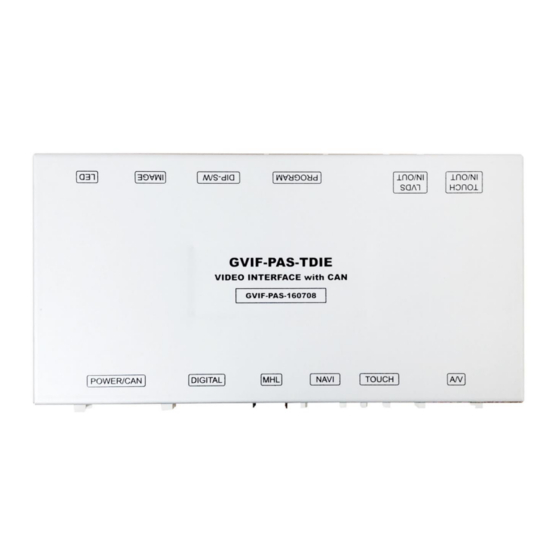

Page 3: External Appearance
External Appearance LVDS TOUCH IN/OUT IN/OUT IMAGE DIP S/W PROGRAM Power/CAN Digital Analog NAVI (IN) TOUCH (IN) (OUT) -
Page 4: Connector Pin Assignment
Connector Pin Assignment Power/CAN Analog POWER Connect NAVI Connect ① ② ③ ④ ⑤ ⑥ ⑦ 13. Battery (Yellow) 1. ACC (Red) ① R DATA (Red) 14. N.C 2. ACC (Red) ② G DATA (Green) 15. REAR-VCC (Red) 3. REAR-DET (Brown) 16. -
Page 5: Product Composition
Product Composition Board Power Cable Touch IN/OUT (4Pin) Touch FFC Cable (110mm) GVIF IN/OUT Cable RGB NAVI Cable A/V Cable Mode Switch OSD Board... -
Page 6: Dip Switch Setting
Dip Switch Setting OFF : ▲UP ON : ▼DOWN FUNCTION DIP S/W Selection ON : Not Used NAVI OFF : Used ON : Not Used DVB-T(AV1) OFF : Used ON : Not Used DVD(AV2) OFF : Used ON : Not Used OFF : Used CAR Type Bottom image... -
Page 7: Mode Change
Mode Change Return Dispaly Mode Change Button... - Page 8 OSD Control OSD(On Screen Display) Control Board MENU DOWN • The OSD screen can be switched ON/OFF MENU • Return to previous menu • Select the currently active item • If the OSD screen is off, mode changes can be made. •...
- Page 9 OSD Control Config First Menu Second Menu Third Menu Description DIGTAL-INAVI NAVI-RGB Setting the Connected NAVI Model ELT_DVBT20 DVB-T(DMB) Setting the Connected DVB-T Model ELT_980XU Config Slim Setting the Connected DVD Model Default Setting the Connected MHL Model Reset Execute Reset to default value of Config menu...
- Page 10 OSD Control Option First Menu Second Menu Third Menu Description Original Camera RearCam-Type ExtDevice Equipped with external camera + 12V continuous supply RearCam-Power AUTO + 12V supply only in Rear camera mode + 12V off Not use. RearCam-Det WIRE Detected by Rear-Det Wire Original Camera FrontCam-Type ExtDevice...
- Page 11 OSD Control Option ▶ FrontCam-RcvOpt Front Camera Auto Mode OEM or REAR FRONT OEM or INTERFACE CAMERA CAMERA INTERFACE Select time of display 0~30 second 0 second FrontCam-RcvOpt Menu OFF 1~30 second FrontCam-RcvOpt Menu ON & time control...
- Page 12 OSD Control Image NAVI – RGB Menu First Menu Second Menu Third Menu Description Brightness Adjust the value of brightness Contrast Adjust the value of contrast Color-RED Adjust the value of RED Image Color-GREEN Adjust the value of GREEN Color-BLUE Adjust the value of BLUE Reset Execute...
- Page 13 OSD Control Screen First Menu Second Menu Third Menu Description Horizontal Output screen horizontal movement Vertical Output screen vertical movement Scale X Up Reduce / increase output screen width Screen Scale X Down Scale Y Up Reduce / Increase Output Screen Height Scale Y Down Reset Screen menu all reset...
- Page 14 OSD Control Parking First Menu Second Menu Third Menu Description Show parking line Line Display Do not show parking lines Warnings Lang Set warning text language Parking Horizontal Moving a parking line horizontally Vertical Moving a parking line vertically Transparency Parking line transparency Reset Parking menu all reset...
- Page 15 OSD Control First Menu Second Menu Third Menu Description value Horizontal OSD Menu Horizontal Shift value Vertical OSD menu vertical Shift value Display Time OSD Menu Display Time (in seconds) value Transparency OSD menu transparency Language OSD menu display language Reset Execute Initialize OSD settings...
- Page 16 OSD Control Utility First Menu Second Menu Third Menu Description Factory Reset Execute Initialize all settings Utility FDS302KRX-171004 Version (Check for future upgrades) • Last Source : FDS302KRX-171004 FD S3 02 KR X - 17 10 04 Motor Model Hardware National Special Software...
- Page 17 Install Manual Touch cable, LVDS FPC cable connection Connect the supplied FFC cable. Connect so that the blue part is visible. Connect the provided touch extension cable to the FFC cable of ⑤...
- Page 18 Install Manual Touch cable, LVDS FPC cable connection Provided LVDS cable, with arrows visible Connect to genuine LVDS cable. The opposite LVDS cable with arrows visible Connect to the back of the monitor CAN-L CAN-H Push it in. Make it perfect. Connect CAN cable...
- Page 19 A-912 RM Tera-Tower2, 201 Songpa-Daero, Songpa-gu, Seoul, Korea F. (+82) 6204-0913 E. kap@kaptrader.com...
