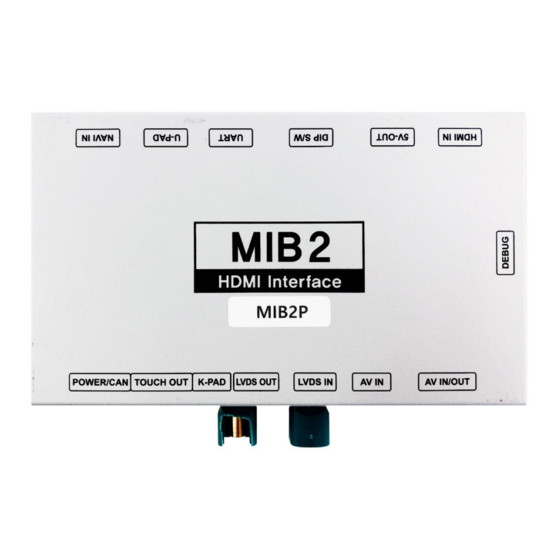

Instruction Manual
HD-MIB2
HDMI INTERFACE
DATE.
2018.12.27
Korea Auto Parts
www.kaptrade.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD-MIB2 and is the answer not in the manual?

Questions and answers

Related Manuals for KAP HD-MIB2

Summary of Contents for KAP HD-MIB2

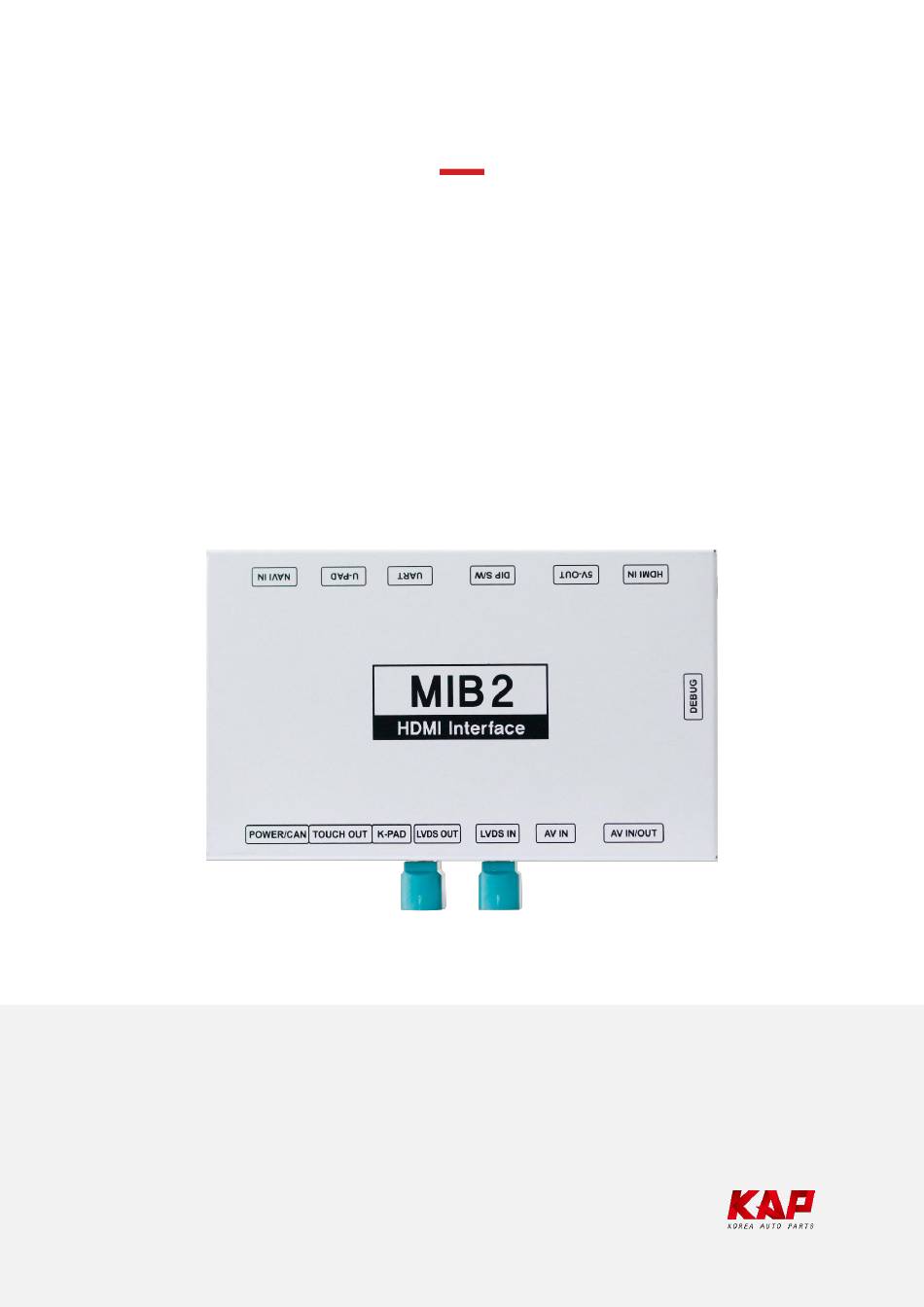

  • Page 1 Instruction Manual HD-MIB2 HDMI INTERFACE DATE. 2018.12.27 Korea Auto Parts www.kaptrade.com...
  • Page 2 COMPONENTS MIB2 Power/ CAN Cable AV Cable Universal Cable LVDS Cable USB Cable Quad Lock Cable Key Pad IR Cable (OPTION) SPEC ※ INTERFACE Input Spec. 1 x HDMI IN (1280x720), 1 x NAVI IN (Digital LVDS) 1 x U-PAD (USB Mouse) 2 x A/V (External Video Source) 1 x Front camera IN 1 x Rear camera IN...

  • Page 3: Connector Pin Assignment

    CONNECTOR PIN ASSIGNMENT Power Cable 13 15 12 14 16 (POWER/CAN) Yellow Purple Green Green White Purple Orange ECU_CAN_ MON_CAN_ MON_CAN_ BATTERY VDD-12V REVERSE AUDIO_MMI IN_H IN_H OUT_H Black Orange Blue Brown Green ECU_CAN_ MON_CAN_ MON_CAN_ REAR_12V OMNI_KEY IN_L IN_L OUT_L POWER/CAN AV IN...

  • Page 4: Hdmi Mode

    DIP S/W INFORMATION ON 1 Pin No. HDMI Mode Skip HDMI Mode Navigation Mode Skip Navigation Mode External Rear View Camera Original Rear View Camera External Front View Camera Skip Extemal Front View Camera DVBT Mode Skip DVBT Mode DVD Mode Skip DVD Mode Selection of Car Model (Next Page)
  • Page 5 DIP S/W INFORMATION ON 1 ※ Selection of Car Model Car Model Audi A3 5.8 inch Audi A3 7 inch Audi A4 7 inch Audi Q7 8.3 inch Bentley BENTAYGA Porsche Macan 8 inch Porsche Panamera 12.3 inch Skoda, VW 5.8 inch Skoda, VW 5.8 inch ( Manual Gear ) Skoda, VW 6.5 inch, 8 inch Skoda, VW 6.5 inch, 8 inch ( Manual Gear )
  • Page 6 CABLE CONNECTION AUDI(Q7, Q5) HDMI MIB2 HDMI INTERFACE POWER/CAN TOUCH OUT K-PAD AV IN AV IN/OUT LVDS OUT LVDS IN Grey LVDS Cable BATGND from command AV Cable Universal Cable LVDS cable from Interface to command HDMI ANDROID NAVIGATION MODE SW R-KEY USB3.0 T-KEY HDMI OUT...
  • Page 7 CABLE CONNECTION PORSCHE(PANAMERA) / VOLKSWAGEN(TIGUAN) HDMI MIB2 HDMI INTERFACE POWER/CAN TOUCH OUT K-PAD AV IN AV IN/OUT LVDS OUT LVDS IN Grey LVDS Cable BATGND from command AV Cable Universal Cable LVDS cable from Interface to command HDMI ANDROID NAVIGATION MODE SW R-KEY USB3.0 T-KEY...

  • Page 8: Steering Wheel

    OEM BUTTON USAGE AUDI(Q7, Q5) Button Press Function Steering wheel Long Press ( 2sec ) Front View Camera BACK Short Press Change to previous screen Long Press ( 2sec ) HDMI->NAVI->DVBT->DVD->OEM Short Press Back to oem screen Touch pad NAV/MAP Short Press Back to oem screen RADIO...
  • Page 9 OEM BUTTON USAGE PORSCHE(PANAMERA) Button Press Function Radio Button Long Press ( 2sec ) HDMI->NAVI->DVBT->DVD->OEM Short Press Back to oem screen Jog Wheel Dial, Push Remote menu choice and move (DVBT,DVD)
  • Page 10 OEM BUTTON USAGE PORSCHE(MACAN) Button Press Function Press for 2sec Change to interface home screen Short Press Change to previous screen Tuner Media Source Short Press Back to OEM screen Phone Home...
  • Page 11 OEM BUTTON USAGE Bentley Button Press Function Press for 2sec Change to interface home screen Short Press Change to previous screen RADIO MEDIA Short Press Back to OEM screen HOME BACK...
  • Page 12 OEM BUTTON USAGE Volkswagen / Skoda Volkswagen Skoda Button Press Function Long Press ( 2sec ) Change to previous screen MENU Short Press Back to OEM screen RADIO MEDIA PHONE Short Press Back to OEM screen SETUP SOUND MUTE Short Press OEM function...

  • Page 13: Monitor Button

    OEM BUTTON USAGE VOLKSWAGEN(TIGUAN) Button Press Function Monitor Button Long Press ( 2sec ) HDMI->NAVI->DVBT->DVD->OEM MENU Short Press Back to oem screen...

  • Page 14: Quick Info

    QUICK INFO K-PAD Press Long the Button for 5 sec <Quick Info Screen> AUDI(Q7, Q5) MMI Touch pad “ ] [ " button or Press Steering wheel “NAV" button for 10 sec to display the Quick info screen. PORSCHE(PANAMERA) "NAV" button or Press Steering wheel "back" button for 10 sec to display the Quick info screen.
  • Page 15 REMOTE CONTROL (How To Control) DVBT / DVD You can select a menu by turning the jog dial. (for DTV, DVD) AUDI(Q7, Q5) PORSCHE(PANAMERA)
  • Page 16 ADD REMOTE CONTROLLER K-PAD Enter the setting menu. And DVB-T select. Remote Model Setting Remote select Remote Memory Selected remote control setting DVB-T Model DVB-T Model select...
  • Page 17 MMI TOUCH PAD GESTURE AUDI(Q7, Q5) Click Push Touch pad Scroll Slide two fingers up or down the touch pad to scroll Drag Push Touch pad and sliding Apply YouTube gesture By watching video on YouTube, press the MMI Touch pad and Slide MMI Touch Pad to Close Video.
  • Page 18 TOUCH SCREEN GESTURE PORSCHE(PANAMERA) / VOLKSWAGEN(TIGUAN) Apply YouTube gesture By watching video on YouTube, press the display and Slide then Close video...

  • Page 19: Interface Setting

    INTERFACE SETTING MIB2 HDMI INTERFACE K-PAD AV IN AV IN/OUT POWER/CAN TOUCH OUT LVDS OUT LVDS IN Enter the setting menu MENU Select setting menu Moving Up Moving Down DOWN...
  • Page 20 INTERFACE SETTING FRONT Camera Setting ※ Use front camera. ※ When you change the gear to ‘D’ from ‘P’ or ’R’ mode, switch automatically to front camera screen as much as you set timer (8, 10, 15 seconds and user setting 1~60 seconds) REAR Camera Setting ※...
  • Page 21 A-912 RM Tera-Tower2, 201 Songpa-Daero, Songpa-gu, Seoul, Korea T. (+82) 6204-0912 F. (+82) 6204-0913 E. kap@kaptrader.com...
