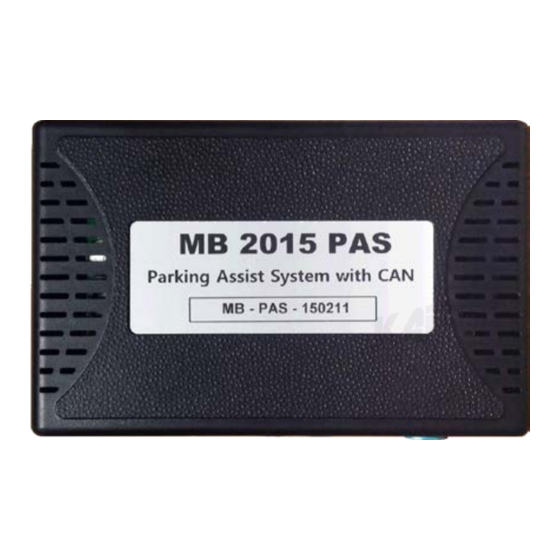

KAP MB-PAS-150211 Manual

Benz 2015 pas rear camera interface
Hide thumbs

Advertisement

Quick Links

Download this manual
BENZ 2015 PAS
(Rear Camera Interface)
MODEL
DATE
MB-PAS-150211
2015.10.15

Advertisement

loading
Need help?

Need help?

Do you have a question about the MB-PAS-150211 and is the answer not in the manual?

Questions and answers

Related Manuals for KAP MB-PAS-150211

Summary of Contents for KAP MB-PAS-150211

  • Page 1 BENZ 2015 PAS (Rear Camera Interface) MODEL MB-PAS-150211 DATE 2015.10.15...
  • Page 2 Main Spec. 1. Input Spec. (MULTI VIDEO INTERFACE) - 1 x Analog RGB Input (Navigation System output) - 1 x CVBS(REAR CAMERA) Input. (Rear camera source) - 1 x CVBS(FRONT CAMERA) Input. (Front camera source) - 1 x LVDS Input. (Car Command System) 2.

  • Page 3: External Appearance

    External Appearance PROGRAM DIP S/W IMAGE NAVI REAR LCD-OUT LCD-IN POWER/CAN FRONT...

  • Page 4: Connector Pin Assignment

    Connector Pin Assignment *POWER Connect *NAVI Connect ① ② ③ ④ ⑤ ⑥ ① ② ③ ④ ⑤ ⑥ ⑦ ① BATTERY (Yellow) ① R DATA (Red) ② REAR_POWER (Red) ② G DATA (Green) ③ CAN-HIGH (Orange) ③ B DATA (Blue) ④...

  • Page 5: Product Composition

    Product Composition OSD Board 1 EA Interface 1 EA RGB Navi Cable 1 EA LVDS Cable 1 EA Power Cable 1 EA...
  • Page 6 Product Composition Option Not for sale : HDMI Cable 1 EA Option : Sub Board 1 EA Option : RGB Cable 1 EA...

  • Page 7: Dip S/W Setting

    DIP S/W Setting * ON : DOWN , OFF : UP * DIP S/W Example FUNCTION DIP S/W Selection ON : Not Used NAVI OFF : Used C class 8.4”Model ON : Not used VIDEO mode OFF : used ON : Not Used HDMI OFF : Used C/GLC class 7”Model...
  • Page 8 DIP S/W Setting * Install Navigation, Dip S/W 1 must OFF MB2015-PAS INTERFACE POWER/CAN NAVI FRONT REAR LCD -IN LCD -OUT Mode Change...
  • Page 9 DIP S/W Setting Time setting : Parking(P) to Drive(D) mode Parking 15sec after or Drive 10Km speed No Delay Parking Mode...
  • Page 10 OSD(On Screen Display) Control OSD Control Board MENU DOWN MENU Push -> OSD menu On/Off Item Selection, Value Selection Item up Increase selected value DOWN Item down Decrease selected value Mode State First Menu Second Menu Third Menu...
  • Page 11 OSD(On Screen Display) Control First Menu Second Menu Third Menu Action Original Camera RearCam-Type ExtDevice Use aftermarket Rear camera Rear camera get +12V consistently RearCam-Power AUTO Rear camera get +12V when reverse gear on Shut out the power supply. Original Camera FrontCam-Type Option ExtDevice...
  • Page 12 OSD(On Screen Display) Control NAVI-RGB menu DVD,DVB-T(DMB),NAVI-AV,REAR,FRONT menu First Menu Second Menu Third Menu Action First Menu Second Menu Third Menu Action Brightness Adjust the value of brightness Brightness Adjust the value of brightness Contrast Adjust the value of contrast Contrast Adjust the value of contrast Color-RED...
  • Page 13 OSD(On Screen Display) Control OSD Setting– Screen Mode - Horizontal - Vertical - Scaler X Up - Scaler X Down - Scaler Y Up - Scaler Y Down...
  • Page 14 OSD(On Screen Display) Control OSD Setting – Parking Mode On/Off PARKING LINE ON PARKING LINE OFF...
  • Page 15 OSD(On Screen Display) Control OSD Setting – Parking sensor Display On/Off OPS ON OPS OFF...
  • Page 16 OSD(On Screen Display) Control OSD Setting – Front Camera Auto Mode - Option -> RearCam-RcvOpt -> 0 second = RearCam-RcvOpt menu OFF 1~30 second = RearCam-RcvOpt menu ON & time control NAVI NAVI REAR FRONT AV1(DVB-T) AV1(DVB-T) AV2(DVD) AV2(DVD) 1~30 second...
  • Page 17 OSD(On Screen Display) Control OSD Setting – Utility Mode - Factory Reset : Execute - Reset All (Setting Default) - Version : FW Version Finish update FW, check the FW versoin Last Source : BEPP06SGX-130950 Software Version Software Month Software Year Special Version National : CN=CHINA, KR=KOREA, JP=JAPAN, US=United States Hardware Version...
  • Page 18 Install Manual 1. Installation Diagram Monitor MB 2015 PAS Command INTERFACE LVDS POWER/CAN LCD -IN LCD -OUT...
  • Page 19 Install Manual 2. Installation External Reverse(Rear) Camera Connection : OSD Screen selection CAN 6. GND (Black) REAR-POWER (Red) 5. NC 4. CAN-LOW (White) 3. CAN-HIGH (Orange) 2. REAR_POWER (Red) 1. BATTERY (Yellow)
  • Page 20 Install Manual 3. Installation External HDMI cable MHL Cable ① or ② ① Galaxy ② iPhone5 RGB Cable Sub Board HDMI Cable...
  • Page 21 Install Manual 4. Installation LVDS connection MUST connect to black DO NOT USE Grey Monitor Head Unit(Command)
  • Page 22 Install Manual 5. Installation CAN connection Pull out Push Lock, Pull Original black out connector connector Plug to our Plug to our connector connector ※ Arrow Direction！...
  • Page 23 Q & A 1. If Interface has a problem, Please check LED. - ACC on (12v), If Interface does not have a problem; GREEN LED is blinking every 1 sec.. LED is turn on (not blinking), Interface has a problem. LED is turn off every 1 sec, there is no input.
