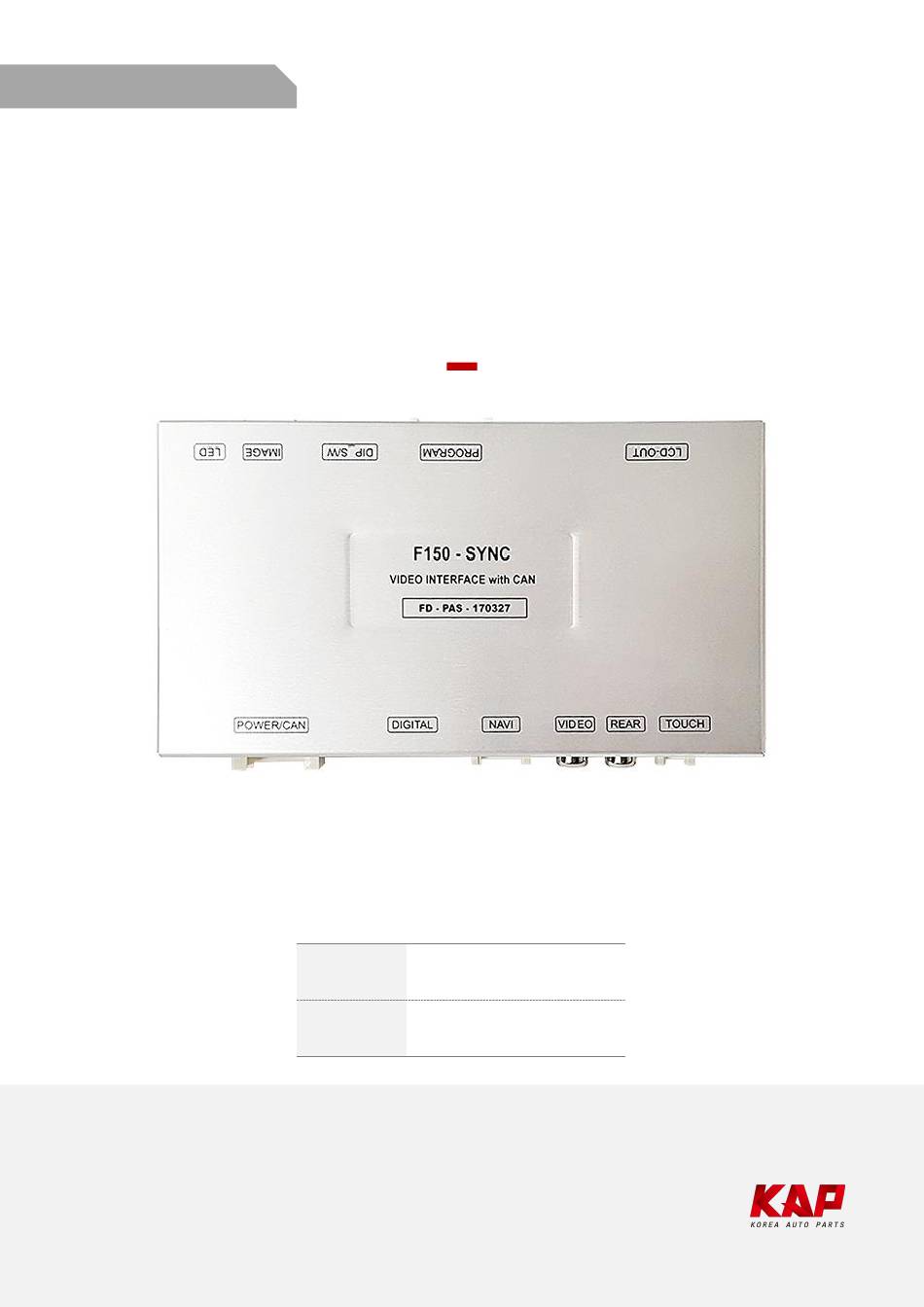

- Page 1 Instruction Manual FORD-SYNC2-TDC2 for FORD Video Interface Video Interface FD-PAS-170327 MODEL. 2019.07.26 D A T E . Korea Auto Parts www.kaptrade.com...
- Page 2 Spec 1. Input Spec. (MULTI VIDEO INTERFACE) • 1 x Digital RGB Input (Navigation System source) • 1 x Analog RGB Input (Navigation System source) • 1 x CVBS(REAR CAMERA) Input (Rear camera source) • 1 x CVBS(FRONT CAMERA) Input (Front camera source) 2.
-
Page 3: External Appearance

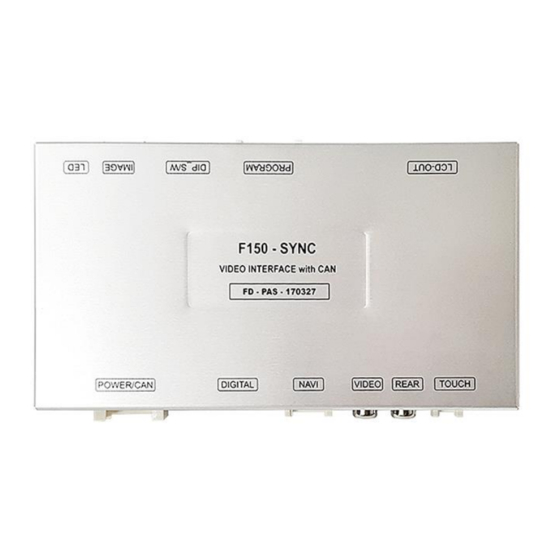

External Appearance IMAGE DIP S/W PROGRAM LCD-OUT FRONT REAR Power/CAN Digital NAVI R-Touch... -
Page 4: Connector Pin Assignment
Connector Pin Assignment POWER Connect (16Pin) ■ ■ ■ ■ ■ ■ Color YELLOW BROWN GREEN BLACK BATTERY Rear-DET CAN1-L Front-VCC Connect ■ ■ ■ ■ ■ ■ Color YELLOW BLUE ORANGE GREEN BLACK BATTERY Front-DET CAN1-H Rear-VCC Mode Connect NAVI Connect (7Pin) ■... -
Page 5: Product Composition
Product Composition Interface Power Cable RGB NAVI Cable LVDS Cable(800mm) SUB Board (R01) JIG Board (REV02) Touch FFC 100mm OSD Board Mode S/W Touch FFC Cable 80mm 100mm LVDS FFC Cable – 2EA... -
Page 6: Dip Switch Setting
Dip Switch Setting OFF : ▲UP ON : ▼DOWN FUNCTION DIP S/W Selection ON : Not Used NAVI OFF : Used CAR type SEL Bottom Picture Car Type Select FORD FORD FORD F150 (2015~) F150 (Special Model) Explorer • Vehicles that do not function as basic DIP-SW among F150 models... -
Page 7: Mode Change
Mode Change Steering Wheel Button Control – F150 2015 Steering Wheel Button Control – F150 2014 Mode Change Button LEFT Switch mode by pressing for 1.5 seconds • Short press to switch OEM • VOICE Switch mode by pressing for 3 seconds •... - Page 8 Mode Change Steering Wheel Button Control – Explorer Mode Change Button LEFT Switch mode by pressing for 1.5 seconds • Short press to switch OEM • VOICE Switch mode by pressing for 3 seconds • Short press to switch OEM •...
- Page 9 OSD Control OSD(On Screen Display) Control Board MENU DOWN • The OSD screen can be switched ON/OFF MENU • Return to previous menu • Select the currently active item • If the OSD screen is off, mode changes can be made. •...
- Page 10 OSD Control Config First Menu Second Menu Third Menu Description DIGTAL- NAVI-RGB INAVI Setting the Connected NAVI Model Config Reset Execute Reset to default value of Config menu...
- Page 11 OSD Control Option First Menu Second Menu Third Menu Description Original Camera RearCam-Type ExtDevice Equipped with external camera + 12V continuous supply RearCam-Power AUTO + 12V supply only in Rear camera mode + 12V off Detected by CAN RearCam-Det WIRE Detected by Rear-Det Wire Option Video(CVBS) Input...
- Page 12 OSD Control Option First Menu Second Menu Third Menu Description Detected by CAN FrontCam-Det WIRE Detected by Front-Det Wire After RearCam shows FrontCam and returns to the previous state FrontCam- RcvOpt Disable feature Option Use the ‘Left’ button on the right side of LEFT the handle Steering Wheel...
- Page 13 OSD Control Option ▶ FrontCam-RcvOpt Front Camera Auto Mode 0 second 1~30 second FrontCam-RcvOpt Menu OFF FrontCam-RcvOpt Menu ON & time control NAVI NAVI REAR FRONT CAMERA CAMERA AV1(DVB-T) AV1(DVB-T) AV2(DVD) AV2(DVD) Select time of display 0~30 second...
- Page 14 OSD Control Image NAVI – RGB Menu First Menu Second Menu Third Menu Description Brightness Adjust the value of brightness Contrast Adjust the value of contrast Color-RED Adjust the value of RED Image Color-GREEN Adjust the value of GREEN Color-BLUE Adjust the value of BLUE Reset Execute...
- Page 15 OSD Control Screen First Menu Second Menu Third Menu Description Horizontal Output screen horizontal movement Vertical Output screen vertical movement Scale X Up Reduce / increase output screen width Screen Scale X Down Scale Y Up Reduce / Increase Output Screen Height Scale Y Down Reset Screen menu all reset...
- Page 16 OSD Control Parking First Menu Second Menu Third Menu Description Show OPS OPS Display Do not show OPS Show parking line Line Display Do not show parking lines Parking Warnings Lang Set warning text language Horizontal Moving a parking line horizontally Vertical Moving a parking line vertically Transparency...
- Page 17 OSD Control Parking – Change warning message language...
- Page 18 OSD Control Parking – Adjust the position of parking guideline MENU DOWN • Pressing this Horizontal / Vertical menu, The OSD screen automatically disappears. • Possible to adjust the position of parking guide line by Keypad in Horizontal / Vertical menu •...
- Page 19 OSD Control First Menu Second Menu Third Menu Description value Horizontal OSD Menu Horizontal Shift value Vertical OSD menu vertical Shift value Display Time OSD Menu Display Time (in seconds) value Transparency OSD menu transparency Language OSD menu display language Reset Execute Initialize OSD settings...
- Page 20 OSD Control Utility First Menu Second Menu Third Menu Description Factory Reset Execute Initialize all settings Utility FDSOOKRX-180209 Version (Check for future upgrades) • Last Source : FDSYOOKRX-180209 FD SY OO KR X - 18 02 09 Motor Model Hardware National Special Software...
-
Page 21: Video Interface
Install Manual 1. Installation Navigation Connection FORD-SYNC-TDC2 VIDEO INTERFACE TOUCH POWER/CAN FRONT REAR DIGITAL 16. GND (Black) 15. GND (Black) 14. Mode (Green) DVD-IR 13. Front-Power (Red) DVBT-IR 12. Rear-Power (Red) 11. ACC (Red) 10. N.C SYNC 9. N.C BLUE 8. - Page 22 Install Manual 4. Installation External Reverse(Rear) Camera Connection FORD-SYNC-TDC2 VIDEO INTERFACE TOUCH POWER/CAN FRONT REAR DIGITAL LVDS-IN REAR-GND (Black) 16. GND (Black) 15. GND (Black) 14. Mode (Green) 13. Front-Power (Red) 12. Rear-Power (Red) REAR-POWER 11. N.C 10. N.C (Red) 9.
- Page 23 Install Manual 5. Installation External Front Camera Connection FORD-SYNC-TDC2 VIDEO INTERFACE TOUCH POWER/CAN FRONT REAR DIGITAL LVDS-IN 16. GND (Black) 15. GND (Black) FRONT-GND (Black) 14. Mode (Green) 13. Front-Power (Red) 12. Rear-Power (Red) FRONT-POWER (Red) 11. ACC (Red) 10. N.C 9.
- Page 24 Install Manual 6. Installation LVDS connection LCD OUT PROGRAM DIP S/W LVDS FFC Cable Touch FFC Cable...
- Page 25 Install Manual 6. Installation LVDS connection Installed appearance Installed Install as above image...
- Page 26 Q&A 1. Check the LED status first when interface failure - If there is no abnormality after the power is applied, the green LED flashes in units of 1 second. - If the red LED flashes for 1 second, there is no. - If the red LED is on continuously, the interface itself is bad.
