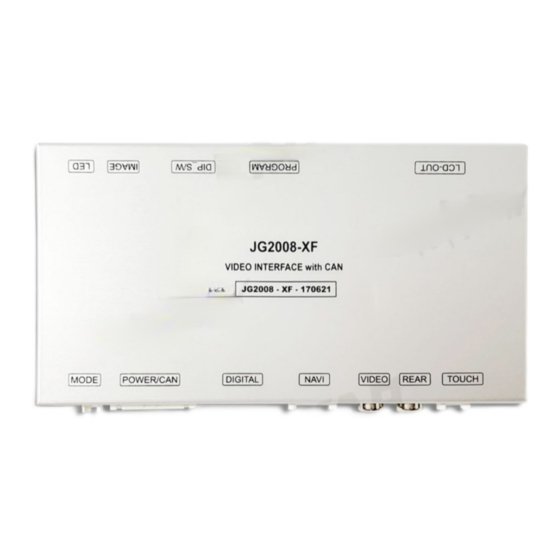

- Page 1 INSTRUCTION MANUAL Video Interface JAGUAR 2008 XF JG2008-XF JAGUAR (~2010) XF 7" DATA. 2023.02.15 JG2008-XF CODE. CONTACT W kaptrader.com E kap@kaptrader.com A (05854) A-912 RM Tera-tower2, 201 Songpa-Dearo, Songpa-gu, Seoul, Korea F (+82) 6204 - 0913...
- Page 2 INSTRUCTION MANUAL CAR COMPATIBILITY SHEET BRAND MODEL SCREEN YEAR JAGUAR 7" ~ 2010 JAGUAR (~2008) XF (Old Model) NOT WORK JAGUAR (2009 ~ 2015) XF (New Model) : The appearance of the headlights is not the same. WORK NOT WORK JAGUAR (~2010) XF JAGUAR (2009 ~ 2015) XF (Old Model)
- Page 3 INSTRUCTION MANUAL COMPONENT INTERFACE POWER CABLE SUB BOARD 4x110x1.0xP7 (Forward) 40x50x0.5xP7 (Forward) LVDS CABLE TOUCH FPC CABLE FFC CABLE RGB NAVI CABLE MODE SWITCH OSD BOARD ▶ Warning ▶ Warning Please contact your dealer if any component is missing. Please contact your dealer if any component is missing. ...
- Page 4 INSTRUCTION MANUAL INTERFACE SPEC INPUT • 1 x DIGITAL RGB (HDMI PORT) • 1 X ANALOG RGB • 1 x CVBS FRONT CAM • 1 x CVBS REAR CAM • 1 x LVDS CAMMAND SYSTEM OUTPUT • 1 x LVDS OPERATION TOUCH •...
- Page 5 INSTRUCTION MANUAL EXTERNAL DEVICE SPECIFICATIONS LCD OUT PROGRAM DIP SWITCH IMAGE White Type OSD connection Interface error check MODE SWITCH POWER CAN DIGITAL RGB ANALOG RGB FRONT REAR TOUCH 4PIN Touch...
-
Page 6: Dip Switch Setting
INSTRUCTION MANUAL DIP SWITCH SETTING INFORMATION FUNCTION ▲ OFF ▼ ON NAVIGATION Do not use DVB-T Do not use External Camera Camera 4 - 5 No function JAGUAR 6 - 8 CAR Type XF - 7" (~ 2010) -
Page 7: Connector Pin Assignment
INSTRUCTION MANUAL CONNECTOR PIN ASSIGNMENT PORT INFORMATION Color Signal Assignment Black POWER /CAN REAR POWER Brown REAR DETECT Blue FRONT DETECT FRONT POWER Color Signal Assignment R DATA Green G DATA NAVI Blue B DATA White SYNC Black Green DVB-T IR Orange DVD IR... -
Page 8: Button Control
INSTRUCTION MANUAL BUTTON CONTROL Mode Switch Control You can change the mode by connecting the mode switch to the board and pressing the button BUTTON PRESS FUNCTION OEM screen to interface screen press Interface screen to the OEM screen MODE SWITCH ▶... - Page 9 INSTRUCTION MANUAL INSTALL MANUAL INTERFACE ▲ Connect the provided FFC cable. ▲ Connect original FFC cable. ▲ Connect the original touch cable to the provided FFC cable. ▲ Connect the provided FFC cable.
- Page 10 INSTRUCTION MANUAL INSTALL MANUAL KPLAY2 IMAGE DIP_S/W PROGRAM LCD OUT 8 9 10 JAGUAR2008XF No. 1 - ▲ OFF VIDEO INTERFACE with CAN VIDEO IN MODE POWER/CAN DIGITAL NAVI VIDEO REAR TOUCH REAR IN KEY 1 ILL DET TOUCH TOUCH DIGITAL UART TOUCH USB Type-A (F)
- Page 11 INSTRUCTION MANUAL INSTALL MANUAL KPLAY2 – TOUCH Connect IMAGE DIP_S/W PROGRAM LCD OUT JAGUAR2008XF VIDEO INTERFACE with CAN MODE POWER/CAN DIGITAL NAVI VIDEO REAR TOUCH TOUCH Reference Image...
- Page 12 INSTRUCTION MANUAL INSTALL MANUAL KPLAY2 TOUCH • When touch is possible, touch the screen for more than 15 seconds to perform touch calibration. • System • System ▶ Factory Mode Touch calibration...
-
Page 13: Connection Diagram
INSTRUCTION MANUAL CONNECTION DIAGRAM REAR CAM IMAGE DIP_S/W PROGRAM LCD OUT JAGUAR2008XF VIDEO INTERFACE with CAN MODE POWER/CAN DIGITAL NAVI VIDEO REAR TOUCH REAR POWER REAR DETECT REAR CAMERA... - Page 14 INSTRUCTION MANUAL CONNECTION DIAGRAM FRONT CAM IMAGE DIP_S/W PROGRAM LCD OUT JAGUAR2008XF VIDEO INTERFACE with CAN MODE POWER/CAN DIGITAL NAVI VIDEO REAR TOUCH FRONT POWER FRONT DETECT ON/OFF SWITCH FRONT CAMERA +12V...
- Page 15 INSTRUCTION MANUAL PARKING CONTROL FrontCam Rcv Option FrontCam-RcvOpt : ON (1 - 30s) MENU Option NAVI Config FronrCam-RcvOpt Displays the front camera screen for the set time Option (1 - 30second) Image Screen Parking REAR FRONT OEM or OEM or Camera Camera Interface...
-
Page 16: Osd Control
INSTRUCTION MANUAL OSD CONTROL Basic information MENU Option NAVI Config RearCam-Type ExtDevice Option RearCam-Power Auto Image RearCam-Det GEAR Screen AV Mode Parking FrontCam-Type ExtDevide OSD(On Screen Display) Menu MENU Mode State Interface Status First Menu Second Menu Third Menu OSD(On Screen Display) Board Control •... - Page 17 INSTRUCTION MANUAL OSD CONTROL First Menu Second Menu Third Menu Description DIGITAL Config NAVI-RGB ： Setting the Connected NAVI Model ： Execute Reset Reset to default value of Config menu Cancel...
- Page 18 INSTRUCTION MANUAL OSD CONTROL First Menu Second Menu Third Menu Description Original Camera Option RearCam-Type ExtDevice Equipped with external camera + 12V continuous supply RearCam-Power AUTO + 12V supply only in Rear camera mode + 12V off GEAR Detected by CAN RearCam-Det WIRE Detected by Rear-Det Wire...
- Page 19 INSTRUCTION MANUAL OSD CONTROL Image First Menu Second Menu Third Menu Description Brightness Adjust the value of brightness Image Contrast Adjust the value of contrast [AV / REAR / FRONT / DVD / DVBT MENU] Saturation Adjust the value of Saturation [AV / REAR / FRONT / DVD / DVBT MENU] Adjust the value of Hue [AV / REAR / FRONT / DVD / DVBT MENU]...
- Page 20 INSTRUCTION MANUAL OSD CONTROL Screen First Menu Second Menu Third Menu Description Horizontal Output screen horizontal movement Screen Vertical Output screen vertical movement Scale X Up Reduce / increase output screen width Scale X Down Scale Y Up Reduce / Increase Output Screen Height Scale Y Down Reset Screen menu all reset...
- Page 21 INSTRUCTION MANUAL OSD CONTROL First Menu Second Menu Third Menu Description Warnings Lang Set warning text language Parking Horizontal Moving a parking line horizontally Vertical Moving a parking line vertically Transparency Parking line transparency Reset Parking menu all reset...
- Page 22 INSTRUCTION MANUAL OSD CONTROL First Menu Second Menu Third Menu Description Horizontal value OSD Menu Horizontal Shift Vertical value OSD menu vertical Shift Display Time value OSD Menu Display Time (in seconds) Transparency value OSD menu transparency Language OSD menu display language Reset Execute Initialize OSD settings...
- Page 23 INSTRUCTION MANUAL OSD CONTROL Utility First Menu Second Menu Third Menu Description Factory Reset Execute Initialize all settings Utility P5D300KRX-200534 Version (Check for future upgrades) Hardware Special Software Software Software Motor Model PIP Model National Version Version Year Month Version FD=FORD S3=Sync3 CN=CHINA...
- Page 24 A-912 Rm Tera-tower2, 201 Songpa-daero, Songpa-gu, Seoul, Korea F. (+82) 6204-0913 E. kap@kaptrader.com...
