- Page 1 FORD-SYNC3-THC2 (VIDEO Interface) MODEL FS-PAS-171204 DATE 2018.02.27...
- Page 2 Main Spec. 1. Input Spec. (MULTI VIDEO INTERFACE) - 1 x Analog RGB Input (Navigation System output) - 1 x HDMI Input (Mirroring System source) - 2 x A/V Input (External video source). - 1 x CVBS(REAR CAMERA) Input. (Rear camera source) - 1 x CVBS(FRONT CAMERA) Input.
-

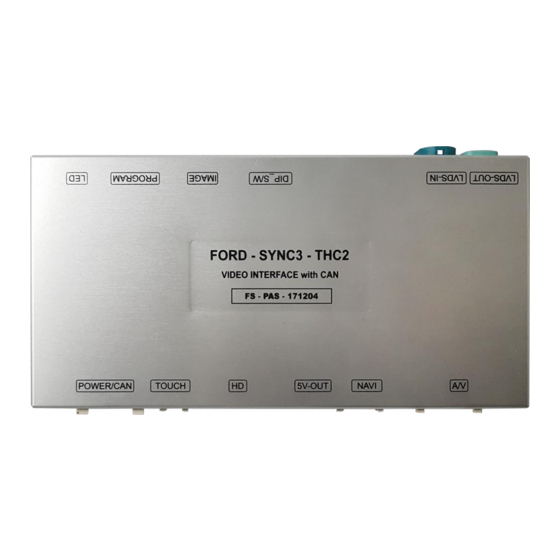

Page 3: External Appearance
External Appearance PROGRAM LCD-OUT DIP S/W LCD-IN IMAGE POWER/CAN Mirroring NAVI (HDMI) Mirroring TOUCH (USB power) -
Page 4: Connector Pin Assignment
Connector Pin Assignment *NAVI Connect *Touch Connect *POWER Connect ① ② ③ ④ ⑤ ⑥ ⑦ ① ② ③ ④ ① R DATA (Red) ① Y- 1. Battery (Yellow) 9. N.C ② G DATA (Green) ② X- 2. Battery (Yellow) 10. -
Page 5: Product Composition
Product Composition LVDS IN Cable 1 EA RGB NAVI Cable 1 EA Interface 1 EA FS-PAS-170830 OSD Board 1 EA LVDS OUT Cable 1 EA Power Cable 1 EA Mode S/W 1 EA A/V Cable(GU-20pin) 1 EA... -
Page 6: Dip S/W Setting
DIP S/W Setting * ON : DOWN , OFF : UP * DIP S/W Example FUNCTION DIP S/W Selection F150 Model ON : Not Used NAVI OFF : Used ON : Not Used DVB-T(AV1) OFF : Used F150 Model (2) If 6,7,8 up setting not work, use this ON : Not Used DVD(AV2) -
Page 7: Mode Change
Mode Change Steering Wheel Button Control Select “Left” button or “Voice” button. Not use, select “Off” “Voice” button “Left” button - Press 3sec to Mode change - Press 1.5sec to Mode change - Push short , back to OEM - Push short , back to OEM... - Page 8 Mode Change Special model– Looks same as F150 , but not work mode change. Dip s/w setting “Voice” button “Left” button - Press 3sec to Mode change - Press 1.5sec to Mode change - Push short , back to OEM - Push short , back to OEM...
-
Page 9: Touch Control
Touch Control Touch control - Calibration Push 11sec on the NAVI / DVB-T / DVD screen ( just 1 screen) Press+ OSD menu -> Utility -> Calibration... - Page 10 Touch Control Touch control in DVB-T / DVD mode DVB-T Press Touch(Anywhere) Press Icon...
- Page 11 OSD(On Screen Display) Control OSD Control Board MENU DOWN MENU Push -> OSD menu On/Off Item Selection, Value Selection Item up Increase selected value DOWN Item down Decrease selected value Mode State First Menu Second Menu Third Menu...
- Page 12 OSD(On Screen Display) Control OSD Config First Menu Second Menu Third Menu Description DIGTAL-INAVI NAVI-RGB Select NAVI model ELT_DVBT20 DVB-T(DMB) Select DVB-T model ELT_980XU Slim Config Select DVD model CASTIT HDMI Select HDMI model Default Reset Execute Reset Config menu Overseas type Domestic type...
- Page 13 OSD(On Screen Display) Control OSD Option Overseas type First Menu Second Menu Third Menu Description Original Camera RearCam-Type Use aftermarket Rear camera ExtDevice Rear camera get +12V consistently Rear camera get +12V when RearCam-Power AUTO reverse gear on Domestic type Shut out the power supply.
- Page 14 OSD(On Screen Display) Control OSD Option Overseas type First Menu Second Menu Third Menu Description +12V consistently +12V consistently on Rear mode FrontCam-Power AUTO No Power Detect by CAN FrontCam-Det Domestic type WIRE Front-Detect by Wire After rear cam show front cam shortly, then return FrontCam-RcvOpt Option...
- Page 15 OSD(On Screen Display) Control OSD Option Overseas type First Menu Second Menu Third Menu Description Use DVD control UI menu UI DVD Not Use Use original BT function (Back to oem) ScrChg-Call Not Use Change air conditional button, back to oem 2 sec ScrChg_Climate Not Use Domestic type...
- Page 16 OSD(On Screen Display) Control OSD Option -> FrontCam-RcvOpt Front Camera Auto Mode 0 second = FrontCam-RcvOpt menu OFF 1~30 second = FrontCam-RcvOpt menu ON & time control NAVI NAVI REAR FRONT AV1(DVB-T) AV1(DVB-T) AV2(DVD) AV2(DVD) Select time of display 1~30 second...
- Page 17 OSD(On Screen Display) Control OSD Option -> ScrChg-Call Setup for switching from external screen to OEM phone mode screen automatically when phone rings ◈ If you touch an arbitrary area of the OEM screen, it keeps the OEM screen.
- Page 18 OSD(On Screen Display) Control OSD Option -> ScrChg-Climate Setup for switching from external screen to OEM mode screen automatically when changing climate value NAVI NAVI AV1(DVB-T) AV1(DVB-T) AV2(DVD) AV2(DVD) Display for 2 seconds ◈ If you touch an arbitrary area of the OEM screen, it keeps the OEM screen.
- Page 19 OSD(On Screen Display) Control OSD Option -> ScrChg-Audio-Vol Setup for switching from external screen to OEM mode screen automatically when changing audio volume level NAVI NAVI AV1(DVB-T) AV1(DVB-T) AV2(DVD) AV2(DVD) Display for 2 seconds ◈ If you touch an arbitrary area of the OEM screen, it keeps the OEM screen.
- Page 20 OSD(On Screen Display) Control OSD Image NAVI-RGB menu DVD,DVB-T(DMB),NAVI-AV,REAR,FRONT menu First Menu Second Menu Third Menu Action First Menu Second Menu Third Menu Action Brightness Adjust the value of brightness Brightness Adjust the value of brightness Contrast Adjust the value of contrast Contrast Adjust the value of contrast Color-RED...
- Page 21 OSD(On Screen Display) Control OSD Parking First Menu Second Menu Third Menu Description Show OPS OPS Display Not show OPS Show Parking line Line Display Not Show Parking line Parking Warnings Lang Show warning message Horizontal Parking line move Horizontal Vertical Parking line move Vertical Reset...
- Page 22 OSD(On Screen Display) Control OSD Parking – Guide line On / Off Parking line On Parking line Off...
- Page 23 OSD(On Screen Display) Control OSD Setting – Warnings Language Change...
- Page 24 OSD(On Screen Display) Control OSD Parking – Adjust position of parking guide line Possible to adjust the position of parking guide line by Keypad in Horizontal / Vertical menu ※ Pressing this Horizontal / Vertical menu, The OSD screen automatically disappears. Please adjust from the parking line Screen.
- Page 25 OSD(On Screen Display) Control OSD – OSD Menu First Menu Second Menu Third Menu Description value Horizontal OSD menu move (Horizontal) value Vertical OSD menu move (Vertical) OSD menu showing time value Display Time (second) Transparency value OSD menu (Transparency) Language OSD menu language Reset...
- Page 26 OSD(On Screen Display) Control OSD Utility First Menu Second Menu Third Menu Description Factory Reset Execute Reset all Calibration Execute Calibration mode Utility FDS302KRX-171004 Version (when upgrade, check) Last Source : FDS302KRX-171004 Software Version Software Month Software Year Special Version National : CN=CHINA, KR=KOREA, JP=JAPAN, US=United States Hardware Version PIP model : S3=Sync3, PP=PIP, LV=LVDS...
- Page 27 Install Manual 1. Installation Navigation Connection DVD-IR *KD-900 navigation DVBT-IR SYNC Analog RGB BLUE GREEN Resistive Touch 16. GND (Black) 15. GND (Black) 14. Mode (Green) 13. Front-Power (Red) 12. Rear-Power (Red) 11. ACC (Red) 10. N.C 9. N.C KD-900 8.
- Page 28 Install Manual 2. Installation DVB-T Remote Control Connection ① or ② 선택1 DVD IR DVB-T IR ① SYNC BLUE GREEN GEX-909DTV DVB-T-IR 16. GND (Black) 15. GND (Black) 14. Mode (Green) 13. Front-Power (Red) 12. Rear-Power (Red) ② 11. ACC (Red) 선택2 10.
- Page 29 Install Manual 3. Installation DVD Remote Control Connection DVD IR DVB-T IR SYNC BLUE GREEN DVD-IR 16. GND (Black) 15. GND (Black) 14. Mode (Green) 13. Front-Power (Red) 12. Rear-Power (Red) 11. ACC (Red) 10. N.C DHA-S690 9. N.C 8. CAN2-H (Purple) GND (Black) GND (Black) 7.
- Page 30 Install Manual 4. Installation External Reverse(Rear) Camera Connection : OSD Screen selection WIRE REAR-POWER (Red) 16. GND (Black) 15. GND (Black) 14. Mode (Green) REAR-GND (Black) 13. Front-Power (Red) 12. Rear-Power (Red) 11. ACC (Red) 10. N.C 9. N.C 8. CAN2-H (Purple) +12V 7.
- Page 31 Install Manual 5. Installation External Front Camera Connection : OSD Screen selection WIRE 16. GND (Black) FRONT-GND (Black) 15. GND (Black) 14. Mode (Green) 13. Front-Power (Red) FRONT-POWER (Red) 12. Rear-Power (Red) 11. ACC (Red) 10. N.C 9. N.C 8. CAN2-H (Purple) 7.
- Page 32 Install Manual 6. Installation HDMI Connection...
- Page 33 Install Manual 7. Installation LVDS Connection Head Unit(Commander) Monitor Wireless Mirroring Connection Method...
- Page 34 Q & A 1. If Interface has a problem, Please check LED. - ACC on (12v), If Interface does not have a problem; GREEN LED is blinking every 1 sec.. LED is turn on (not blinking), Interface has a problem. LED is turn off every 1 sec, there is no input.
