4 Installation
4.5

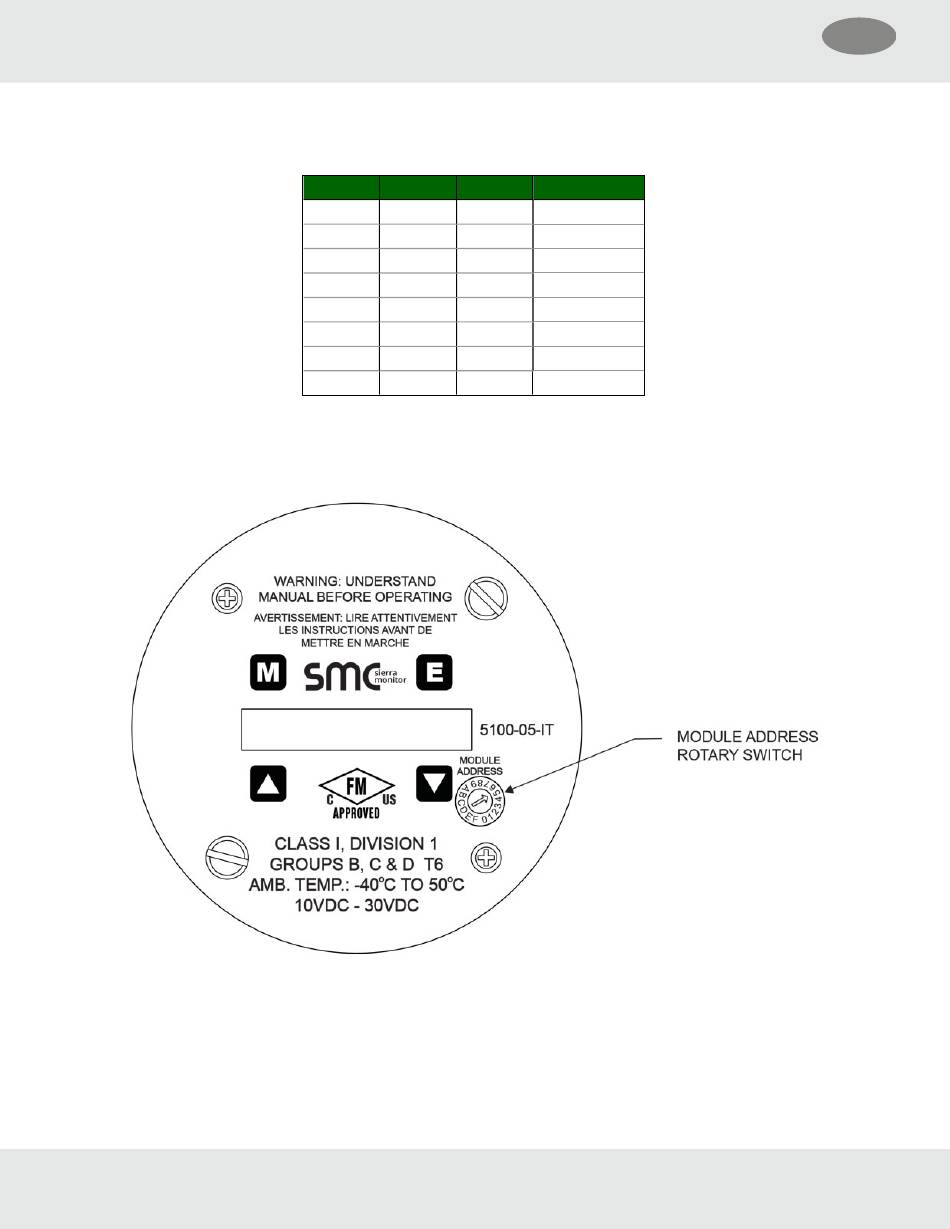

Module Address Switch

For digital interface applications the module address switch (or Modbus node) must be set per the table below.
NOTE: Use selector switch to pick Sentry PSG addresses 1 through 8 only. If using Modbus output sensor
addresses 1-15 are available. Position 0 allows the Modbus Address to be set by software menu, in the range
16-254.
18
Position Address Position
1 Sensor 1
2 Sensor 2 A
3 Sensor 3 B
4 Sensor 4 C
5 Sensor 5 D
6 Sensor 6 E
7 Sensor 7
8 Sensor 8
SMC 5100-XX-IT Toxic Gas Detector Module
Address
9 Sensor 09
Sensor 10
Sensor 11
Sensor 12
Sensor 13
Sensor 14
F Sensor 15
0 Software Menu
