Summary of Contents for Festo PROFINET CPX-AP-A-PN-M12

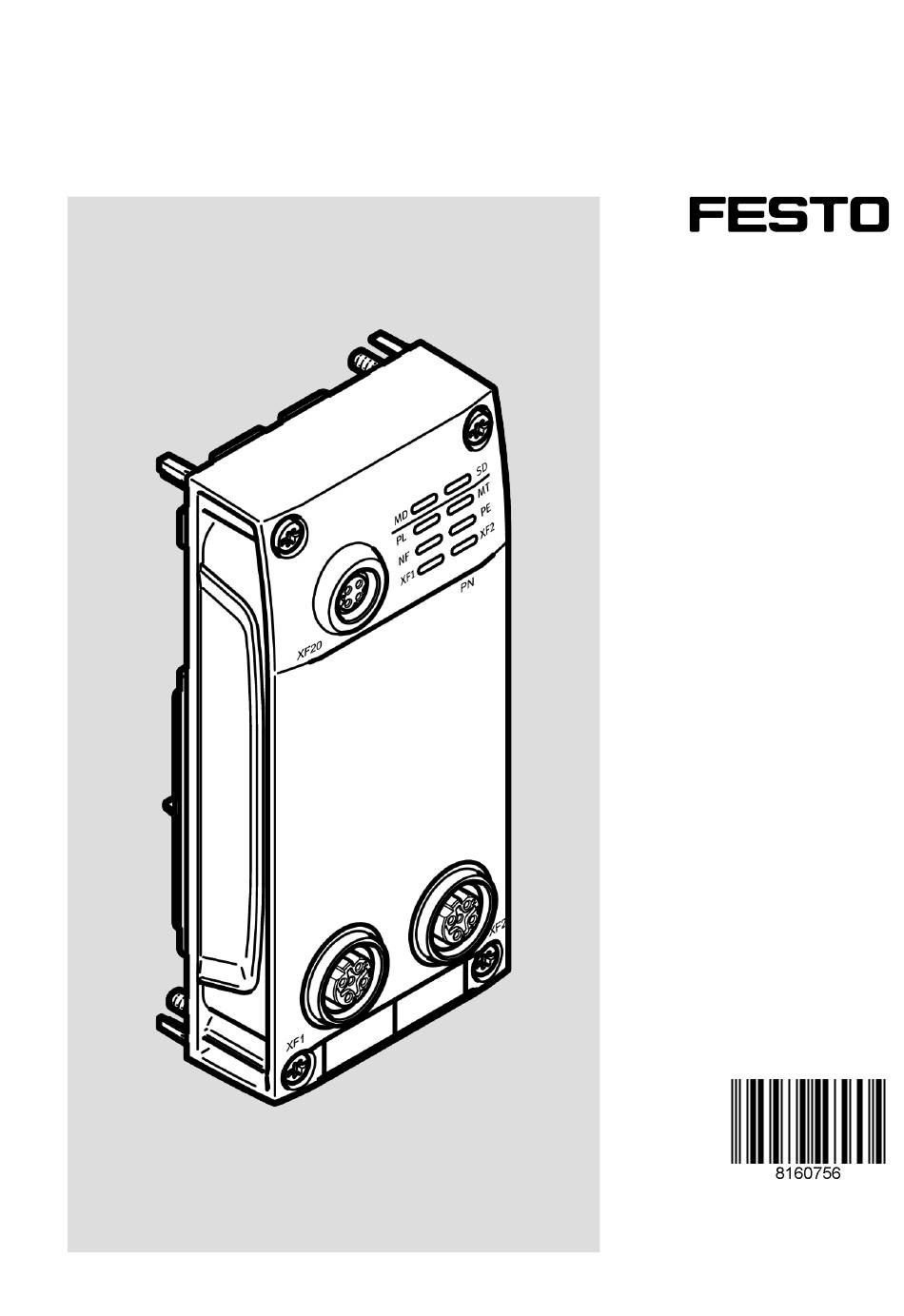

- Page 1 CPX-AP-A-PN-M12 PROFINET interface Operating instruc- tions 8160756 2022-07 [8160758]...
- Page 2 Translation of the original instructions PI PROFIBUS PROFINET is a registered trademark of its respective trademark holder in certain ® countries.
-
Page 3: Table Of Contents
Technical data..............24 Festo — CPX-AP-A-PN-M12 — 2022-07... -
Page 4: About This Document
The product labelling and the Data Matrix Code are printed on the housings of the modules. Scanning the Data Matrix Code with an appropriate device opens the Festo Internet page with documents appropriate for the product. Alternatively, the Product Key (11-digit alphanumeric code on the product labelling) can be entered in the search field è... -
Page 5: Safety
The qualified personnel have skills and experience in dealing with electrical (open-loop) control technology. Additional information – Contact the regional Festo contact if you have technical problems è www.festo.com. – Accessories and spare parts è www.festo.com/catalogue. Festo — CPX-AP-A-PN-M12 — 2022-07... -
Page 6: Product Overview
Fig. 1: Product design 4.1.2 LED displays Meaning Module diagnostics (green, red) Load supply (green, red) Network fault (red) Network connection (green) System diagnostics (green, red) Module diagnostics (yellow) PROFIenergy (green) Network connection (green) Tab. 4: LED displays Festo — CPX-AP-A-PN-M12 — 2022-07... -
Page 7: Connecting Elements
A device description file (GSDML file) is used for project engineering of the PROFINET interface in the higher-order controller software. It contains all the information required for parameterisation of the automation system CPX-AP-A via control software. The device description file is available at the Festo Support Portal è www.festo.com/sp. Festo — CPX-AP-A-PN-M12 — 2022-07... -
Page 8: Mounting
• Switch on the higher-order controller and automation system CPX-AP according to the preset order of the network used. 1. Set up an automation project for the higher-order controller using suitable software. 2. Load the device description file into the software. Festo — CPX-AP-A-PN-M12 — 2022-07... -
Page 9: Parameterisation
è 9 Diagnostics and fault clearance è 1.1 Applicable documents Parameterisation Various parameters are available for reading out information about the modules in an automation system CPX-AP-A and for adapting the modules to the application situation. Festo — CPX-AP-A-PN-M12 — 2022-07... - Page 10 – 2: load voltage monitoring active 20085 Measured value of temperature AP-ASIC [°C] 1 INT16 – 20087 Current measured value of logic supply PS UINT16 – [mV] 20088 Current measured value of load supply PL UINT16 – [mV] Festo — CPX-AP-A-PN-M12 — 2022-07...
-
Page 11: Diagnostics And Fault Clearance
The following table contains the diagnostic messages of the interface. ID hex (dec) Message Description 02 | 01 | 0016 Undervoltage in logic Undervoltage in logic supply (PS) 24 V DC (33619990) supply (PS) 24 V DC – Check power supply. Remedy Festo — CPX-AP-A-PN-M12 — 2022-07... - Page 12 06 | 00 | 010A Mismatch in startup The length of the startup parameter in the device and the (100663562) parameter size AP device description do not match. – Check firmware versions Remedy Festo — CPX-AP-A-PN-M12 — 2022-07...
- Page 13 – Restart AP system. – Check wiring. Diag- Error nostic status 08 | 01 | 0133 AP master process The process data watchdog for the inputs timed out in the (134283571) data input watchdog master timed out Festo — CPX-AP-A-PN-M12 — 2022-07...
- Page 14 Remedy – Restart AP system Diag- Error nostic status 08 | 01 | 01AD System state change The AP device did not change the system state from CON- (134283693) to OPERATION failed FIGURATION to OPERATION. Festo — CPX-AP-A-PN-M12 — 2022-07...
- Page 15 Device forced to com- The device was forced by the master to set the loopback (134283797) munication loopback on the communication port, due to commnuication errors. Communication to subsequent modules is thereby inter- rupted. – Check wiring Remedy Festo — CPX-AP-A-PN-M12 — 2022-07...
- Page 16 0A | 00 | 01A7 Non-volatile memory Non-volatile memory defect (167772583) defect – Restart device Remedy – Contact Festo Service if problem persists Diag- Error nostic status 0B | 00 | 010E General software An error occurred that could not be matched with any...
- Page 17 The AP device description is invalid or missing. (185139496) – Reboot device. Remedy – Check communication cable. – Check firmware version. – On repeating failure contact Festo support. Diag- Error nostic status 0B | 09 | 0129 Invalid startup APDD The startup AP device description is invalid or missing.
- Page 18 – Reboot device. 0B | 09 | 0129 Invalid startup APDD Remedy – Check communication cable. (185139497) – Check firmware version. – On repeating failure contact Festo support. Diag- Error nostic status 0B | 09 | 024F Device inconsistency Different data sources of the device have inconsistencies...
-
Page 19: Led Displays
PS red light Module ramp-up not yet completed. – System communication not yet initial- ised. flashing red 2 Hz Module identification (service function) – flashing green 2 Hz Tab. 9: LED module diagnostics [MD] Festo — CPX-AP-A-PN-M12 — 2022-07... - Page 20 0.5 Hz System diagnostics active – Degree of severity "Error" e.g. sensor supply short circuit in a red light module. Module identification (service function) – fast green flashing 2 Hz Tab. 10: LED system diagnostics [SD] Festo — CPX-AP-A-PN-M12 — 2022-07...
- Page 21 Remedy Maintenance not required. – Maintenance required in at least one Carry out the necessary remedial meas- module in the automation system ures è Instructions for the applicable CPX-AP-A. module. Tab. 12: LED maintenance [MT] Festo — CPX-AP-A-PN-M12 — 2022-07...
- Page 22 Check network connection. Module positioning if both LEDs (XF1 – and XF2) flash synchronously, e.g. for troubleshooting or during configura- flashing green tion. Network connection OK. – green light Tab. 15: LED connection status [XF1], [XF2] Festo — CPX-AP-A-PN-M12 — 2022-07...
-
Page 23: Diagnostics Via Web Server
– Error number 32768 … 65535: ChannelErrType = 2002 with ExtChannelErrType = error number – 32768 The error number 0 is reserved. Information on grouping and displaying the diagnostic messages è Instructions for the automation system CPX-AP-A. Festo — CPX-AP-A-PN-M12 — 2022-07... -
Page 24: Technical Data
By the use of SELV/PELV circuits tion against direct and indirect contact (Safe extra-low voltage/Protected extra-low voltage) in accordance with IEC 60204-1 and IEC 60364-4-41) Electromagnetic compatibility See declaration of conformity è www.festo.com Mounting position Tab. 16: General technical data Festo — CPX-AP-A-PN-M12 — 2022-07... - Page 25 24 V PL against 0 V PL £ 17 Diagnostics message, under- [V DC] voltage in load supply PL ³ 31 Diagnostics message, over- [V DC] voltage in load supply PL Tab. 17: Power supply Festo — CPX-AP-A-PN-M12 — 2022-07...
- Page 26 Category Cat 5 or higher Cable diameter [mm] 6 … 8 Wire cross section 0.14 … 0.75 AWG 22 (required for maximum connection length between network stations) 1) based on the Ethernet protocol IEEE 802.3 Tab. 18: Network-specific data Festo — CPX-AP-A-PN-M12 — 2022-07...
- Page 28 Copyright: Festo SE & Co. KG 73734 Esslingen Ruiter Straße 82 Deutschland Phone: +49 711 347-0 Internet: © 2022 all rights reserved to Festo SE & Co. KG www.festo.com...
