INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9020269
SYNOPSIS:

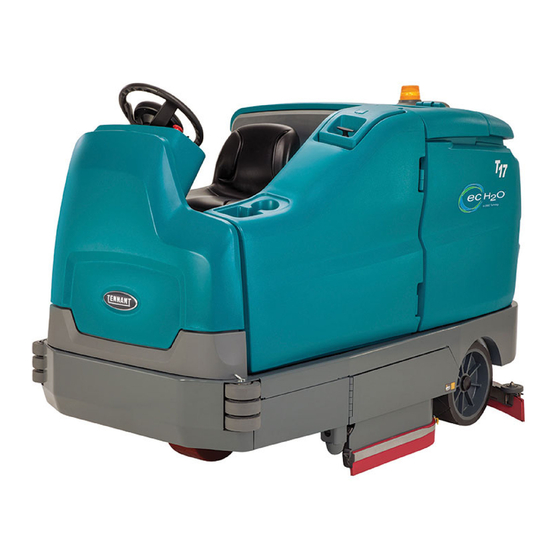

This kit contains the parts needed to replace drive motor on T17 scrubbers.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 2 hours)

PREPARATION:

1. Empty the recovery tank and the solution tank
before jacking up the machine.
2. Park the machine on a clean level surface,
turn off the machine, set the parking brake,
and remove the key.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, set parking brake, and remove key.
3. Disconnect the battery cable from the
machine.
WARNING: Always disconnect battery
cables from machine before working on
electrical components.
4. Chock both rear tires.
IB 9013132 (11- 2015)
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, used machine components
such as batteries and fluids in an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.

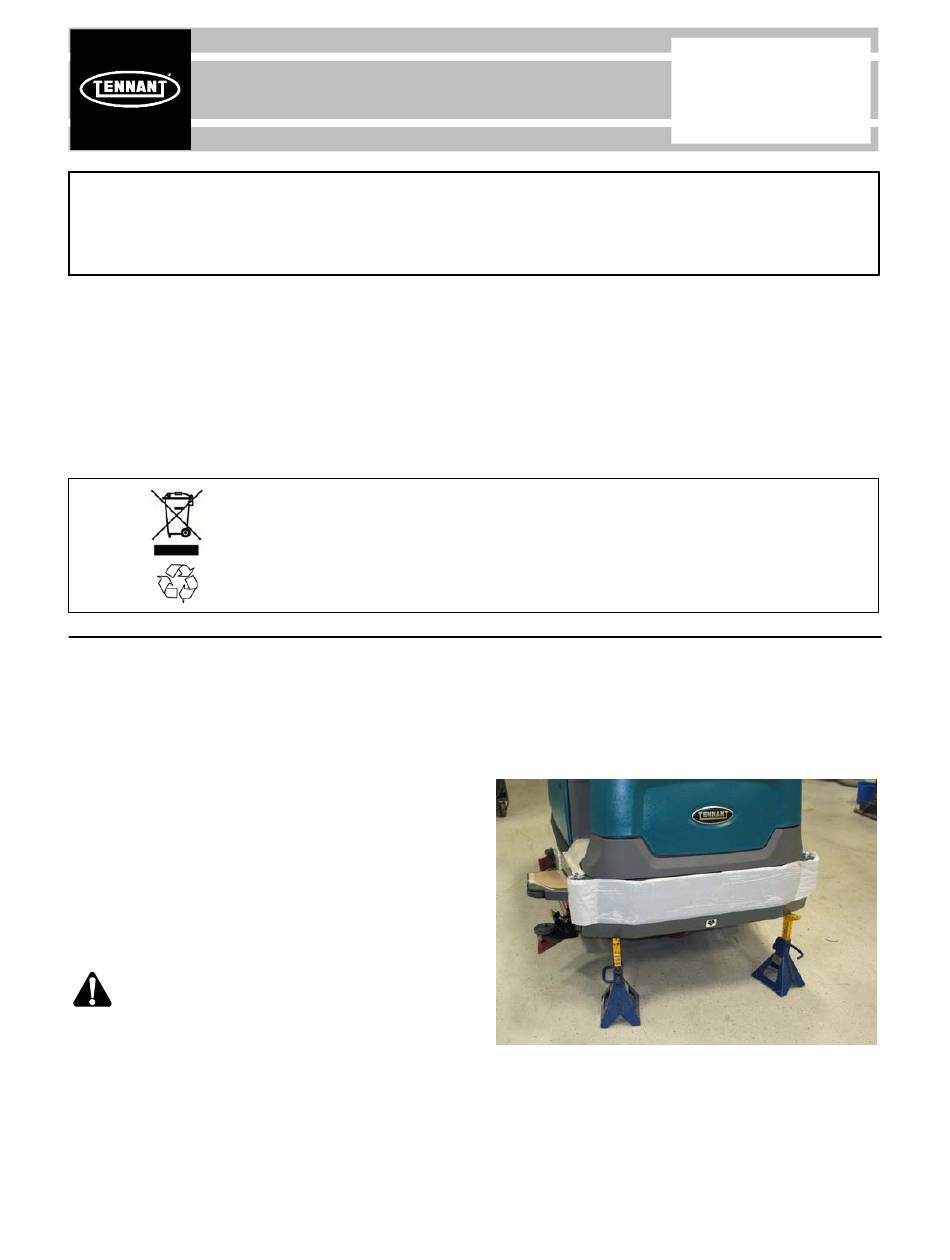

5. Jack up the front end of the machine high
enough to access the front drive motor and
remove the drive motor from under the
machine. Place jack stands under the
machine frame and lower the machine onto
the jack stands. (Fig. 1)
FIG. 1
FOR SAFETY: When servicing machine, block
machine tires before jacking machine up. Use
a hoist or jack that will support the weight of
the machine. Jack machine up at designated
locations only. Support machine with jack
stands.
No. 9013132
Machine: T17
Published: 11- 2015
Rev. 00
1
