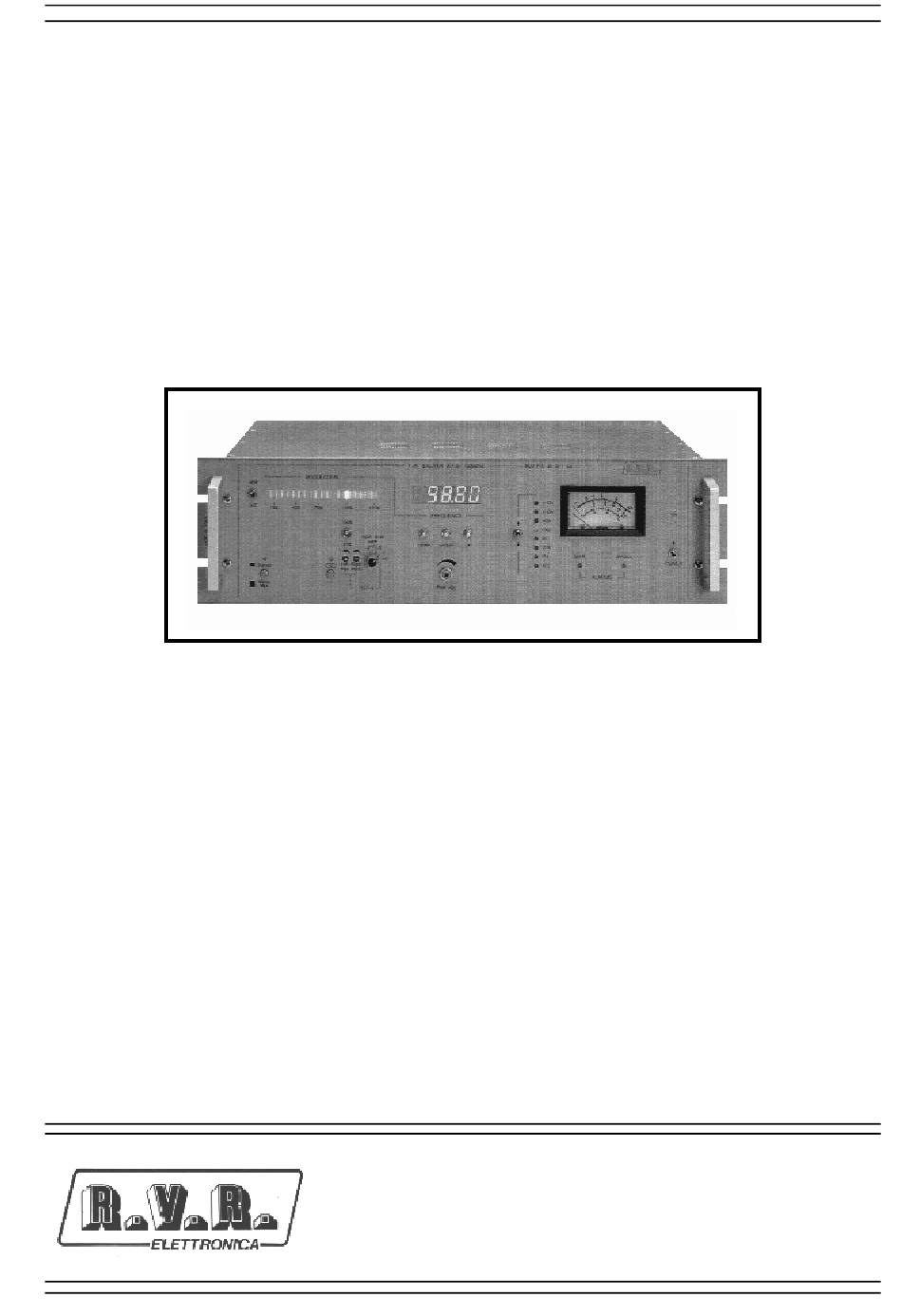

  • Page 1 PTRL-NV/2/S3 PTRL-NV/2/HP/S3 T E C H N I C A L A N D M AI N T E N A N C E M A N U A L MANUALETECNICOEDIMANUTENZIONE M an u f ac t u re d by R. V . R . E le t tr o n i c a - I t a l y...
  • Page 2 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual PTRL-NV/2/S3 & PTRL-NV/2/ HP/S3 Stereo Studio Transmitter Link 1400/2600 MHz Technical and Maintenance Manual Manuale Tecnico e di Manutenzione English Pag. 3 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 2...
  • Page 3 SECTION 3 Installation Procedure Pag. 29 Recommend Test Equipment (Table C) Pag. 33 SECTION 4 Maintenance Pag. 34 SECTION 5 Calibration Procedure of Modules Pag. 37 SECTION 5 Aligment of the Radio Link Pag. 43 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 3...
  • Page 4 5W R.F. Power Amplifier Pag. 106 Con-PA Card Pag. 111 1W R.F. Power Amplifier's Low Pass Filter Pag. 115 Doubler Pag. 119 Inverter Card Pag. 123 Audio Input Card Pag. 127 Stereo Coder Card Pag. 131 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 4...
  • Page 5 Incidental/consequential damages as a result of any defect Nominal non-incidental defects Re-shipment costs or insurance of the unit or replacement units/parts Warranty shall come into force from invoice date and for the period of the manufactures warranty. R.V.R. ELETTRONICA S.r.l. (BO) Pag. 5...
  • Page 6 40138 Bologna - Italy International Phone: +39 - 51 - 6010506 FAX Number: +39 - 51 - 6011104 R.V.R. reserves the right to modify the design and specifications of the equipment in this manual without previous notice. R.V.R. ELETTRONICA S.r.l. (BO) Pag. 6...
  • Page 7 R.V.R. ELETTRONICA s.r.l. shall not be responsible for injury or damage resulting from improper procedures or from the use of improperly trained or inexperienced personnel performing such tasks.
  • Page 8 C a l l f o r m e d i c a l a s s i s t an c e a s so o n a s p os si b le . 2) If victim is responsive. a. Keep them warm. b. Keep them as quiet as possible. c. Loosen their clothing (a reclining position is recommended). R.V.R. ELETTRONICA S.r.l. (BO) Pag. 8...
  • Page 9 Apply clean dry dressing if necessary. Treat victim for shock as required. Arrange transportation to a hospital as quickly as possible. If arms or legs are affected keep them elevated. R.V.R. ELETTRONICA S.r.l. (BO) Pag. 9...

  • Page 10: General Description

    C H A P T E R 1 GENERAL DESCRIPTION 1.1 MECHANICAL DESCRIPTION The PTRL-NV/2/S3 (and PTRL-NV/2/HP/S3) is housed in a 3U, 19" rack- mounting chassis comprising a number of interconnected modules mounted internally on the base of the unit.

  • Page 11: Remote Control (Optional)

    In this equipment an optional serial port (9 pin D-type) is available allowing remote control of operating frequency and output power. 1.5 SPECIFICATIONS Please refer to Table A for the electrical specifications and Table B for the mechanical specifications. R.V.R. ELETTRONICA S.r.l. (BO) Pag. 11...
  • Page 12 MPX input impedance 10 KOhm, 1 unbalanced BNC Total harmonic distortion, MPX < 0.2% S/N ratio, FM stereo better than -70 dB, ± 75KHz deviation at 400 Hz, right and left channels decoded and de-emphasized R.V.R. ELETTRONICA S.r.l. (BO) Pag. 12...
  • Page 13 ± 0.5 dB from 30 Hz to 100 KHz Stereo separation greater than 45 dB Optional inputs for 0 dBm audio level: SCA input impedance 10 KOhm, 3 unbalanced BNCs SCA input level 0 dBm nominal for ± 7.5 KHz R.V.R. ELETTRONICA S.r.l. (BO) Pag. 13...

  • Page 14: Mechanical Specifications

    345 mm (13.7") D 483 mm (19") W Panel dimensions 483 mm (19") W 132.5 mm (5.2") H Ambient operating temp. from -10°C to +50°C Humidity 90% maximum, non-condensing Weight 26.4 Lbs (12 Kg) R.V.R. ELETTRONICA S.r.l. (BO) Pag. 14...

  • Page 15: Electrical Description

    The function may be selected by a control situated on the front panel. In stereo encoder mode, the 19 KHz pilot tone is derived from a quartz crystal reference oscillator. So too is the sampling frequency which R.V.R. ELETTRONICA S.r.l. (BO) Pag. 15...

  • Page 16: Power Amplifier

    PLL. This allows the VCO to lock to the desired operating frequency. Several of the transmitter's R.V.R. ELETTRONICA S.r.l. (BO) Pag. 16...
  • Page 17 This card is mounted to the left side of unit, in a central position. The circuit doubles the frequency of the VCO output at a level of about 7-10dBm, and the output is supplied to the input of the R.F. Power Amplifier. R.V.R. ELETTRONICA S.r.l. (BO) Pag. 17...

  • Page 18: Front Panel Description

    Light indicator indicated which parameter of the exciter is being displayed on the analog meter SWR ALARM If this indicator lights, it means that the exciter shut down to a high VSWR condition on the output R.V.R. ELETTRONICA S.r.l. (BO) Pag. 18...
  • Page 19 Power output will also decrease to zero in this condition METER Analog meter used to monitor the parameters of the exciter such as: +15V +12V Forward Power EXT 24V POWER ON/OFF Power Switch A.C. Power ON Indicator R.V.R. ELETTRONICA S.r.l. (BO) Pag. 19...
  • Page 20 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual FIG.1 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 20...

  • Page 21: Fuse Block

    FCC Version BNC connector isolated, CCIR Version "Cannon XLR" connector balanced input SCA 1 BNC connector, unbalanced SCA 1 input SCA 2 BNC connector, unbalanced SCA 2 input or internally switchable pilot output for R.V.R. ELETTRONICA S.r.l. (BO) Pag. 21...
  • Page 22 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual RDS Coder TELEMETRY TERMINALS 10 pin terminal board for telemetry AUDIO GND 3-10 FWD POWER REF POWER VPA VOLTAGE DC IPA CURRENT SWR ALARM UNLOCK ALARM R.V.R. ELETTRONICA S.r.l. (BO) Pag. 22...
  • Page 23 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual FIG.2 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 23...
  • Page 24 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual TOP VIEW DESCRIPTION (PHOTO ....Power Supply ....R.F. Power Amplifier ....Transformer ....Anameter Card ....Audio Input Card ....Main Card ....C.P.U..... Modmeter Card R.V.R. ELETTRONICA S.r.l. (BO) Pag. 24...
  • Page 25 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual PHOTO 1 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 25...
  • Page 26 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual BOTTOM VIEW DESCRIPTION (PHOTO 2) ....Audio Input Card ....Stereo Coder Card ....Power Supply ....R.F. Power Amplifier ....C.P.U..... Anameter Card R.V.R. ELETTRONICA S.r.l. (BO) Pag. 26...
  • Page 27 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual BOTTOM VIEW (PHOTO 2) R.V.R. ELETTRONICA S.r.l. (BO) Pag. 27...
  • Page 28 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual FIG.3 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 28...

  • Page 29: Installation

    CHAPTER 3 INSTALLATION 3.1 INTRODUCTION This chapter contains the information required to install the PTRL-NV/2/S3 and PTRL-NV/2/HP/S3 transmitter and carry out preliminary checks. 3.2 UNPACKING Remove the unit from its packing and, before anything else, ensure that the unit has not suffered any damage during transit and that all front and rear panel controls are operational.
  • Page 30 Furthermore, when the limit of the operating frequency band is reached, the displayed frequency will jump to the other limit and carry on changing in the direction corresponding to the button being pushed. Exemple: Band 1750-1800MHz: R.V.R. ELETTRONICA S.r.l. (BO) Pag. 30...
  • Page 31 Set the control (4 Fig.1) to 10% and inject a 400Hz tone of -30dBm (-20 dBm for the american version) and repeat the proceeding operation. The procedure should be followed first for the MONO input and then for the STEREO input. R.V.R. ELETTRONICA S.r.l. (BO) Pag. 31...

  • Page 32: Recommended Test Equipment

    Hewlett Packard Max Avg Pwr 30W Mod. 8498A Variable Attenuator Hewlett Packard Attenuator 110dB Mod. 8496B Max RF PWR 1W CW Variable Attenuator Hewlett Packar Attenuator 11dB Mod. 8494B Max RF PWR 1W CW R.V.R. ELETTRONICA S.r.l. (BO) Pag. 32...

  • Page 33: Maintenance

    Disconnect connectors CN1, CN2, CN3, CN4, CN5, CN6 and CN7. Undo the nuts holding the card in place. Remove the Main card with great care. 4.4 MODMETER CARD REPLACEMENT Open the top cover of the unit. R.V.R. ELETTRONICA S.r.l. (BO) Pag. 33...
  • Page 34 Power Adjust connector. Unscrew the nuts holding the card to the meter. Remove the card with great care. 4.7 POWER SUPPLY REPLACEMENT Open the top cover of the unit. R.V.R. ELETTRONICA S.r.l. (BO) Pag. 34...
  • Page 35 Disconnect the CN1 connector of the R.F. Power Amplifier, disconnect the connector CN2 of the Low Pass Filter amd the connector CN1 of the CON-PA card. Unscrew the screw fixing the R.F. Power Amplifier to the base of the unit. R.V.R. ELETTRONICA S.r.l. (BO) Pag. 35...
  • Page 36 Disconnect the connectors CN1 and CN2 of the R.F. Power Amplifier and the connector CN1 of the CON-PA card. Unscrew the screw fixing the R.F. Power Amplifier to the base of the unit. Remove the R.F. Power Amplifier. R.V.R. ELETTRONICA S.r.l. (BO) Pag. 36...
  • Page 37 The only adjustment required after replacement of the power supply are those detailed in 5.1 (Calibration of the R.F. Power Amplifier). It is sufficient to follow steps 1 to 7 of this procedure after the power supply has been replaced. R.V.R. ELETTRONICA S.r.l. (BO) Pag. 37...
  • Page 38 (see SETUP 2 / Fig.5): Connect an audio frequency generator to the MONO or STEREO inputs. Connect a 30dB attenuator between the R.F. Ouput Connector and FAM Modualtion Analyzer. R.V.R. ELETTRONICA S.r.l. (BO) Pag. 38...
  • Page 39 Connect a 30dB attenuator between the R.F. Ouput amd Power Meter (show SETUP1 / Fig.4) Adjust the output power for 1W for 1W version, 2W for 2W version or 5W for 5W version. R.V.R. ELETTRONICA S.r.l. (BO) Pag. 39...
  • Page 40 The highter frequency should correspond to the highter voltage and vice versa. If the voltages in step 2. cannot be verified ie. the PLL is not locked, the soldered joint, connecting the SL strip-line to ground, R.V.R. ELETTRONICA S.r.l. (BO) Pag. 40...
  • Page 41 L, R. Connect the RF output of PTRL-NV/S3 to a suitable load (50 Ohm-20W). Connect a -30 dB coupler to the RF input of F.A.M. (or other Modulation Analyzer type). SETUP 3 / FIG. 6 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 41...
  • Page 42 50 dB at 400 Hz. Take the reading on the other channel. If the separation between the two channels differs more than 3 dB, you can balance it adjusting P4 on the coder board. R.V.R. ELETTRONICA S.r.l. (BO) Pag. 42...
  • Page 43 S E C T I O N 6 ALIGNMENT OF THE RADIO LINK 6.1 INTRODUCTION This chapter details the alignment procedure for the PTRL-NV/2/S3 (and PTRL-NV/2/HP/S3) transmitter and the RXRL-NV/2 receiver. 6.2 FREQUENCY ALIGNMENT The operating frequency of the complete radio link (TX + RX) is set using a frequency meter to measure the frequency output by the transmitter and the frequency after the second conversion of the receiver.
  • Page 44 Both mono and stereo measurements should be taken having configured the unit according to SETUP B1 and B2 and carrying out the following procedure: Connect the instruments as shown in SETUP B1 (Fig.9) to make MONO measurement. R.V.R. ELETTRONICA S.r.l. (BO) Pag. 44...
  • Page 45 Adjust the signal generator output for a level of 1mV (the carrier and deviation will remain constant). Use the modulation analyzer to make the S/N measurement and check that the figure is better than 60 dB for the RXRL-NV. R.V.R. ELETTRONICA S.r.l. (BO) Pag. 45...

  • Page 46: Stereo Separation

    CASE B - Should the new frequency fall outside the range of receiver's R.F. Power Amplifier Stage (and relative receiver's Front-End/ Mixer). CASE A Should the new frequency fall within the range of receiver's R.F. Power R.V.R. ELETTRONICA S.r.l. (BO) Pag. 46...
  • Page 47 Adjust the signal generator for a signal level of -10 dBm (0dBm for american versions) at the MONO and STEREO inputs. Configure the modulation analyzer to rear deviation. Check that the deviation reading for the PTRL-NV/2/S3 (and PTRL-NV/2/HP/S3) is 100KHz and if not, adjust trimmer R8 (inside the VCO) to obtain it.
  • Page 48 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual Check that the distortion figure is better than 0.05% with low-pass and high-pass filters of 20 KHz and 30 Hz respectively, for both MONO and STEREO inputs. R.V.R. ELETTRONICA S.r.l. (BO) Pag. 48...
  • Page 49 CIRCUIT DIAGRAMS, LAYOUTS AND BILLS OF MATERIAL This section contains circuit diagrams, layouts and bills of material of the modules which composing the equipment. For more information about each module see as reference Section 2. R.V.R. ELETTRONICA S.r.l. (BO) Pag. 49...
  • Page 50 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual MAIN CARD "PLL Section" Circuit Diagram "PLL Section" Bill of Materials "AF Section" Circuit Diagram "AF Section" Bill of Materials Main Card Components Layout R.V.R. ELETTRONICA S.r.l. (BO) Pag. 50...
  • Page 51 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 51...
  • Page 52 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 52...
  • Page 53 CKM1,5BJ600C 22pF CERAMIC CAPACITOR NP0 CKM220BJ600C C68,C69 T30pF TRIMMER CAPACITOR CVC300BK600 C71,C72, CERAMIC CAPACITOR CKM102BK600P C82,C83 10nF CERAMIC CAPACITOR CKM103BK600P C70,C101 47nF CERAMIC CAPACITOR CKM473BK600P C73,C81, 0.1uF CERAMIC CAPACITOR CKM104BK600P C96,C98 ELECTROLYTIC CAPACITOR CEA105AM6302 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 53...
  • Page 54 LED4N27 IS03,IS05, IS07,IS08 7805K POS. STABILIZER 1.5A CIL7805K Q17,Q18 BC237 NPN TRANSISTOR TRNBC237 Q20,Q21 BC557 PNP TRANSISTOR TRNBC557 U6,U7 TL082 DOUBLE OP. AMP. CILTL082 MB501 DUAL MOD. PRESCALER CIDMB501 MB87006 INTEGRATED DIVIDER PLL CIDMB87006 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 54...
  • Page 55 TRIMM.REG.VERT. 10mm RVTD10VK0047 C9,C12 10pF CERAMIC CAPACITOR NP0 CKM100BJ600C C15,C16, 470pF CERAMIC CAPACITOR CKM471BK600P C7,C8, 1nFP POLIESTER CAPACITOR CPE102BK161 C10,C11 10nFP POLIESTER CAPACITOR CPE103BJ101 C99,C100 47nF CERAMIC CAPACITOR CKM473BK600P C1,C4 0.1uF CERAMIC CAPACITOR CKM104BK600P R.V.R. ELETTRONICA S.r.l. (BO) Pag. 55...
  • Page 56 26 P CONN CONN. M 2*13 P 2.54 CNTMCSFC26P CONN. SMB CRIMP. RG188 CNTSMBFCVD RL2V12V RELAY 2 VIE 12V RLDLFHA00212 BC237 NPN TRANSISTOR TRNBC237 BC557 PNP TRANSISTOR TRNBC557 U1,U2 TL074 QUAD OP. AMP. CILTL074 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 56...
  • Page 57 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 57...
  • Page 58 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual V.C.O. CARD Circuit Diagram Bill of Materials Layouts R.V.R. ELETTRONICA S.r.l. (BO) Pag. 58...
  • Page 59 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 59...
  • Page 60 POLIESTER CAPACITOR CPE102BK161 0.1uF CERAMIC CAPACITOR CKM104BK600P 2.2uFT TANTALIUM CAPACITOR CET225AM350 10uF ELECTROLYTIC CAPACITOR CEA106AM350 C12,C13, 47uF ELECTROLYTIC CAPACITOR CEA476BM630 470uF ELECTROLYTIC CAPACITOR CEA477BM350 0u22CH CHIP RF CHOKE L1,L5,L6, RF CHOKE IMP02U2A L7,L8, L9,L10 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 60...
  • Page 61 CONN. SMB A STAMPATO CNTSMBMCSD BB505B VARICAP DIODE DIVBB505 BCY59 NPN TRANSISTOR TRNBCY59 TIP120 NPN DARLINGTON TRNTIP120 J310 FET TRANSISTOR TRNJ310 HY1,HY2 MAR4 HYBRID AMP MAR4 MIBMAR4 N.C. NOT CONNECTED LIN1,LIN2, STRIP LINE STRIP LINE LINE3,LIN4 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 61...
  • Page 62 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 62...
  • Page 63 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual C.P.U. CARD Block Diagram Circuit Diagram Bill of Materials Layout R.V.R. ELETTRONICA S.r.l. (BO) Pag. 63...
  • Page 64 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 64...
  • Page 65 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 65...
  • Page 66 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 66...
  • Page 67 TTL QUAD OR CID74LS32 Z80-CPU CIDZ80CPU Z80-PIO PARALLEL I/O PORT CIDZ80PIO 8251 SERIAL I/O PORT CID8251 6264 RAM MEMORY 8KBYTE CID6264 2764 EPROM MEMORY 8KBYTE CID2764 H6060168PI STANDALONE WATCHDOG CIDH606016 ZOC8 ZOCC. INTEGRATO 8 PIN ZIN08 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 67...
  • Page 68 ___________________________________________________________________________________ ZC2,ZC3, ZOC14 ZOCCOLO INTEGR. 14 PIN ZIN14 ZC4,ZC5,ZC6 ZC7,ZC8 ZOC16 ZOCCOLO INTEGR. 16 PIN ZIN16 ZC9,ZC10, ZOC28 ZOCCOLO INTEGR. 28 PIN ZIN28 ZC11 ZC12,ZC13 ZOC40 ZOCCOLO INTEGR. 40 PIN ZIN40 N.C. NOT CONNECTED R.V.R. ELETTRONICA S.r.l. (BO) Pag. 68...
  • Page 69 TTL LATCH CID74LS374 M9306 EEPROM 256BIT CIDM9306 ZC14 ZOC8 ZOCCOLO INTEGR. 8 PIN ZIN08 ZC15 ZOC20 ZOCCOLO INTEGR. 20 PIN ZIN20 ZC16,ZC17 ZOC24 ZOCCOLO INTEGR. 24 PIN ZIN24 ZC18,ZC19 ZOC28 ZOCCOLO INTEGR. 28 PIN ZIN28 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 69...
  • Page 70 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 70...
  • Page 71 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 71...
  • Page 72 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 72...
  • Page 73 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual MODMETER CARD Circuit Diagram Bill of Materials Layout R.V.R. ELETTRONICA S.r.l. (BO) Pag. 73...
  • Page 74 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 74...
  • Page 75 C1,C3,C6 CERAMIC CAPACITOR NP0 CKM5,6BJ600C C2,C10 33pF CERAMIC CAPACITOR NP0 CKM330BJ600C C18,C19, 39pF CERAMIC CAPACITOR NP0 CKM390BJ600C C20,C21 22nF CERAMIC CAPACITOR CKM223BK600P C13,C17 0.1uF CERAMIC CAPACITOR CKM104BK600P C4,C5,C9, 10uF ELECTROLYTIC CAPACITOR CEA106AM350 C11,C12, C14,C15,C16 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 75...
  • Page 76 HLMP2820 4 GREEN LED DIODE LEDHLMP2820 BC237 NPN TRANSISTOR TRNBC237 BCY59 NPN TRANSISTOR TRNBCY59 TL082 DOUBLE OP. AMP. CILTL082 TL074 QUAD OP. AMP. CILTL074 LM555 TIMER CIL555 U4,U5 LM3914 BAR DOT LED DRIVER CILLM3914 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 76...
  • Page 77 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 77...
  • Page 78 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual ANAMETER CARD Anameter Card 1 Circuit Diagram Anameter Card 1 Bill of Materials Anameter Card 1 Layout Anameter Card 2 Circuit Diagram Anameter Card 2 Bill of Materials Anameter Card 2 Layout R.V.R. ELETTRONICA S.r.l. (BO) Pag. 78...
  • Page 79 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 79...
  • Page 80 RVTCERVK0010 R15,R16, HC10K TRIM.REG.ORIZZ. CERMET RVTCEROK0010 R17,R18, R19,R20, R21,R22 10pF CERAMIC CAPACITOR NP0 CKM100BJ600C C1,C2 CERAMIC CAPACITOR CKM102BK600P C7,C8,C9, CERAMIC CAPACITOR CKM472BK600P C10,C11 C19,C20, 0.1uF CERAMIC CAPACITOR CKM104BK600P C21,C22 C3,C15, 10uF ELECTROLYTIC CAPACITOR CEA106AM350 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 80...
  • Page 81 79L05 NEG. STABILIZER 100mA CIL79L05 BC557 PNP TRANSISTOR TRNBC557 TL082 DOUBLE OP. AMP. CILTL082 4051 ANALOG MULTIPLEXER CID4051 7442 TTL BCD DECODER CID7442 74LS132 TTL QUAD NAND TRIGGER CID74LS132 74HC193 CMOS BIN COUNTER CID74HC193s R.V.R. ELETTRONICA S.r.l. (BO) Pag. 81...
  • Page 82 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 82...
  • Page 83 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 83...
  • Page 84 CONN. M 2*13 P 2.54 CNTMCSFC26P 1V 2P DEVIATORE 1V 2P DEV1V1103CS 2V 2P 0C DEVIATORE 2V 2P 0C DEV2V1M01M03 D3,D4,D5, LED-G5 GREEN LED DIODE LEDVE05 D6,D7,D8, D9,D10,D14, D15,D16,D17 Z12V ZENER DIODE 12V 0.4W DIZ12V0W4 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 84...
  • Page 85 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 85...

  • Page 86: Power Supply

    Power Supply Card 1 Circuit Diagram Power Supply Card 1 Bill of Materials Power Supply Card 1 Component Layout Power Supply Card 2 Circuit Diagram Power Supply Card 2 Bill of Materials Power Supply Card 2 Component Layout R.V.R. ELETTRONICA S.r.l. (BO) Pag. 86...
  • Page 87 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 87...
  • Page 88 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 88...
  • Page 89 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 89...
  • Page 90 RESISTOR 1/4W 5% RSC1/4JK0100 RESISTOR 1/4W 5% RSC1/4JM0001 R51,R52, 2M2 1% RESISTOR 1/4W 1% RSM1/4FM02,2 R53,R54 R3,R8 HC5K TRIM.REG.ORIZZ. CERMET RVTCEROK0005 47pF CERAMIC CAPACITOR NP0 CKM470BJ600C C16,C19, 470pF CERAMIC CAPACITOR CKM471BK600P C23,C25, C29,C35,C43 CERAMIC CAPACITOR CKM102BK600P R.V.R. ELETTRONICA S.r.l. (BO) Pag. 90...
  • Page 91 34 P CONN CONN. M 2*17 P 2.54 CNTMCSFC34P D17,D18, 1N4148 SILICON DIODE DIS1N4148 D19,D20,D21 D3,D5,D6, 1N4003 SILICON DIODE 200V DIS1N4003 D7,D8,D9, D10,D11, D12,D15,D16 Z18V ZENER DIODE 18V 0.4W DIZ18V0W4 7805 POS. STABILIZER 1A CIL7805P R.V.R. ELETTRONICA S.r.l. (BO) Pag. 91...
  • Page 92 Bill of Materials Pag. 3 Item Quantity Reference Part Description Part Order Code ___________________________________________________________________________________ 7915 NEG. STABILIZER 1A CIL7915P LM723 VAR. STABILIZER 100mA CILLM723 Q2,Q3 BC237 NPN TRANSISTOR TRNBC237 U6,U7,U9 LM358N DOUBLE OP. AMP. CILLM358N R.V.R. ELETTRONICA S.r.l. (BO) Pag. 92...
  • Page 93 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 93...
  • Page 94 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 94...
  • Page 95 100uF ELECTROLYTIC CAPACITOR CEA107BM350 26 P CONN CONN. M 2*13 P 2.54 CNTMCSFC26P D1,D2, 1N4003 SILICON DIODE 200V DIS1N4003 D13,D14 7812K POS. STABILIZER 1.5A CIL7812K 7815K POS. STABILIZER 1.5A CIL7815K MJ3001 POWER TRANSISTOR TRNMJ3001 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 95...
  • Page 96 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 96...

  • Page 97: R.f. Power Amplifier

    PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual 1W R.F. POWER AMPLIFIER Circuit Diagram Bill of Materials Layout R.V.R. ELETTRONICA S.r.l. (BO) Pag. 97...
  • Page 98 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 98...
  • Page 99 CERAMIC THROUGH CAPAC. CDP102XK500 C17,C24, C28,C29, C30,C31, 0.1µF CERAMIC CAPACITOR CKM104BK600P C20,C25 10µF ELECTROLYTIC CAPACITOR CEA106AM350 L1,L2,L3 L14RVR 1 SP DIA 4 L243RVR0.25 24S D3 RAME SMAL 0.25 BFS24002524 L5,L7 L25RVR 2 SP DIA 5 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 99...
  • Page 100 SMA TELAIO CONN. SMA A TELAIO CNTSMAFPFL CN4,CN5,CN6 BA481 HOT CARRIER DIODE DHCBA481 BFQ34 NPN RF TRANSISTOR TRNBFQ34 BFQ68 NPN RF TRANSISTOR TRNBFQ68 Q1,Q2 BFG65 NPN RF TRANSISTOR TRNBFG65 BFG96 NPN RF TRANSISTOR TRNBFG96 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 100...
  • Page 101 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 101...
  • Page 102 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual 2W R.F. POWER AMPLIFIER Circuit Diagram Bill of Materials Layout R.V.R. ELETTRONICA S.r.l. (BO) Pag. 102...
  • Page 103 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 103...
  • Page 104 LINK FILO ARG. 1mm CAVARG1000 L3,L4 BANDRM3.5 BANDELLA RAME DI 3.5mm BNC TELAIO CONN. BNC A TELAIO CNTBNCFPV N CONNECTOR CONN. N A TELAIO CNTNFPFL 1N4148 SILICON DIODE DIS1N4148 BFQ136 NPN RF TRANSISTOR TRNBFQ136 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 104...
  • Page 105 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 105...
  • Page 106 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual 5W R.F. POWER AMPLIFIER Circuit Diagram Bill of Materials Layout R.V.R. ELETTRONICA S.r.l. (BO) Pag. 106...
  • Page 107 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 107...
  • Page 108 D13,D14 BAT83 HOT CARRIER DIODE DHCBAT83 Z3V3CH ZENER DIODE 3.3V 0.4W DIZ3V30W4C D1,D7,D8, Z4V7CH ZEN. DIOD. 4.7V 0.4W CH DIZ4V70W4C Z13V ZENER DIODE 13V 0.4W DIZ13V0W4 U1,U3 7660SCAB +5V TO -5V VOLT. CONV. ICL7660SCAB R.V.R. ELETTRONICA S.r.l. (BO) Pag. 108...
  • Page 109 Part Order Code __________________________________________________________________________________________________ U2,U4 78L05 POS. STABILIZER 100mA CIL78L05 Q1,Q4 BC847 CHIP NPN TRANSISTOR TRNBC847 Q2,Q3 TIP120 NPN DARLINGTON TRNTIP120 MGF0904 POWER GASFET MGF0904 TRNMGF0904 MGF0905 POWER GASFET MGF0905 TRNMGF0905 MGF0906 POWER GASFET MGF0906 TRNMGF0906 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 109...
  • Page 110 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 110...
  • Page 111 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual CON-PA CARD Circuit Diagram Bill of Materials Layout R.V.R. ELETTRONICA S.r.l. (BO) Pag. 111...
  • Page 112 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 112...
  • Page 113 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual CON-PA CARD Bill Of Materials Page Item Quantity Reference Part Description Part Order Code __________________________________________________________________________________________________ 34 P CONN CONN. M 2*17 P 2.54 CNTMCSFC34P R.V.R. ELETTRONICA S.r.l. (BO) Pag. 113...
  • Page 114 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 114...
  • Page 115 1 W R . F . P O W E R A M P L I F I E R ' A L O W PA S S F I L T E R Circuit Diagram Bill of Materials Layout R.V.R. ELETTRONICA S.r.l. (BO) Pag. 115...
  • Page 116 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 116...
  • Page 117 Pag. 1 Item Quantity Reference Part Description Part Order Code __________________________________________________________________________________________________ C1,C3 T3p5F TRIMMER CAPACITOR CVC3,50CK600 T10pF TRIMMER CAPACITOR CVC100CK600 L1,L2 BANDRM3.5 BANDELLA RAME DI 3.5mm CN1,CN2 SMA TELAIO CONN. SMA A TELAIO CNTSMAFPFL R.V.R. ELETTRONICA S.r.l. (BO) Pag. 117...
  • Page 118 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 118...
  • Page 119 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual DOUBLER Circuit Diagram Bill of Materials Layout R.V.R. ELETTRONICA S.r.l. (BO) Pag. 119...
  • Page 120 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 120...
  • Page 121 L4,L5 RSM1,RSM2, RIS2G 2GHz LINE RSM3,RSM4, RSM5 CN1,CN2 SMAF CONN. SMA F TELAIO CNTSMAF Q1,Q2 BFR96 NPN RF TRANSISTOR TRNBFR96 MAR6 HYBRID AMP MAR6 MIBMAR6 330CH CHIP RESISTOR RCC1/4JH0330F R11,R12 47CH CHIP RESISTOR RCC1/4JH0047F R.V.R. ELETTRONICA S.r.l. (BO) Pag. 121...
  • Page 122 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 122...
  • Page 123 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual INVERTER CARD Circuit Diagram Bill of Materials Layout R.V.R. ELETTRONICA S.r.l. (BO) Pag. 123...
  • Page 124 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 124...
  • Page 125 DIS1N4148 1N4003 SILICON DIODE 200V DIS1N4003 BY255 SILICON DIODE 1000V 3A DISBY255 Z9V1 ZENER DIODE 9.1V 0.4W DIZ9V10W4 INV1 2CCR2415SX DC/DC CONV.24Vin 15Vout 2CCR2415SX TIP120 NPN DARLINGTON TRNTIP120 ALIM/1/24 CS CONV. 24/-15 RX-PT PCBALIM/1/24 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 125...
  • Page 126 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 126...
  • Page 127 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual AUDIO INPUT CARD Circuit Diagram Bill of Materials Layout R.V.R. ELETTRONICA S.r.l. (BO) Pag. 127...
  • Page 128 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 128...
  • Page 129 CONN. M 2*17 P 2.54 CNTMCSFC34P BNC1,BNC2 BNC IS.CS. CONN. BNC A STAMP. IS. CNTBNCFCSIS JP1,JP2, WIRE COLLEGAMENTO A FILO FILO JP3,JP4, JP5,JP6 H1,H2,H3, WIRE JUMPER PONTICELLO A FILO WIREJUMPER H4,H5,H6, H7,H8,H9, R1,R2 N.C. NOT CONNECTED R.V.R. ELETTRONICA S.r.l. (BO) Pag. 129...
  • Page 130 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 130...
  • Page 131 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual STEREO CODER CARD Circuit Diagram Bill of Materials Layout R.V.R. ELETTRONICA S.r.l. (BO) Pag. 131...
  • Page 132 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 132...
  • Page 133 RESISTOR 1/4W 1% RSM1/4FK9,09 R8,R24, 10K0 1% RESISTOR 1/4W 1% RSC1/4FK10,0 R33,R34, R41,R48, R92,R94,R96 RESISTOR 1/4W 5% RSC1/4JK0010 12K7 1% RESISTOR 1/4W 1% RSM1/4FK12,7 R1,R2,R7, 14K7 1% RESISTOR 1/4W 1% RSM1/4FK14,7 R17,R18,R23 RESISTOR 1/4W 5% RSC1/4JK0015 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 133...
  • Page 134 TRIMM.MULT.REG. VERT. RVTMULVK0005 T8pF TRIMMER CAPACITOR CVC080CK600 CERAMIC CAPACITOR NP0 CKM8,2BJ600C 27pF CERAMIC CAPACITOR NP0 CKM270BJ600C C13,C21, 47pF CERAMIC CAPACITOR NP0 CKM470BJ600C C36,C37 68pF CERAMIC CAPACITOR NP0 CKM680BJ600C 100pFP 1% POLIESTER CAPACITOR 1% CPE101BF63 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 134...
  • Page 135 QRZ9,728HC18 SW2V6P COMMUTAT. 2VIE 6POS FE COMR2V6PCS SW2,SW6 SWSPDT-4 COMMUTATORE 4VIE 2POS COMR4V2PCS LD1,LD5 LED-G5 GREEN LED DIODE LEDVE05 Q2,Q3,Q4 BC557 PNP TRANSISTOR TRNBC557 MPF4393 JFET SWITCH. N-CHANNEL TRNMPF4393 IC18,IC19 LM393 DOUBLE COMPARATOR CILLM393 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 135...
  • Page 136 IC5,IC6, LF356 JPFET IN. OP. AMPLIFIER CILLF356 IC17 IC8,IC11 4015 SHIFT REGISTER CID4015 IC12,IC13, 4053 TRIPLE 2 CH ANAL. MULT. CID4053 IC14,IC20 4060 CMOS BIN DIVIDER CID4060 R102,R103, WIRE COLLEGAMENTO A FILO FILO R104 R.V.R. ELETTRONICA S.r.l. (BO) Pag. 136...
  • Page 137 PTRLNV/2/S3 and PTRL-NV/2/HP/S3 - Technical and Maintenance Manual R.V.R. ELETTRONICA S.r.l. (BO) Pag. 137...
  • Page 138 © Copyright 1994 First Edition - April ’97 Created By D’Alessio D. & Morotti M. R.V.R.ElettronicaS.r.l.(Bo) ViadelFonditore2/2c - 40138 - Bologna (Italy) Telephone:+39-51-6010506 Fax:+39-51-6011104 Printed and bound in Italy. All rights reserved. No part of this manual may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying, recording, or by any information storage and retrieval system, without permission in writing from the publisher.
  • Page 139 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 APPENDIX Description RVR Code Vers. Pages Power Supply PSSW-PTNV C.P.U. section CPU-NV Stereo coder card CSSDC30A0003 Appendix Rev. 0.2 - 12/09/02...
  • Page 140 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 Pagina lasciata intenzionalmente in bianco Rev. 0.2 - 12/09/02 Appendix...
  • Page 141 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 Appendice Tecnica Rev. 0.1 - 15/05/02 PSSW-PTNV - 1 / 6...
  • Page 142 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 2 / 6 - PSSW-PTNV Rev. 0.1 - 15/05/02 Technical Appendix...
  • Page 143 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 POWER SUPPLY PTX30 PTX30UHT PTRLNV Bill Of Materials Page Item Q.ty Reference Part ___________________________________________________ C1,C12 CT1/35 4.7UF C3,C4 CM10NF C5,C6,C13,C16,C18,C22, CM.1UF C29,C30,C31,C32,C33,C34, C35,C36,C37,C38,C39,C50, C56,C58 C7,C8,C9,C10,C11,C24,C25, 1000/50 C14,C27,C40 CD1KPF C15,C17,C19,C21,C48,C49 220/25 CP.47UF C23,C43,C44 CM100PF C28,C54,C55 EKR470/25 CP33KPF CD.1UF...
  • Page 144 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 F1,F2,F3,F4,F5,F7,F8 DSS-310 L2,F9,F13,F14,F16 WK200 F10,F11,F12 BL02 4N26 JP3,JP8,JP9 STRIP2 KRA6 JUMPER CON34A CON26A L1,L3 T1804 220UH Q1,Q2 BC237 BC488 IRFZ44A R3,R4,R15,R16,R21,R39, R5,R6,R9,R10,R12,R18,R20, 10K R22,R26,R31,R32,R47,R57, R7,R54,R55 100K R8,R65 560R 330R R17,R19,R23,R28,R45 R24,R33,R34 4 / 6 - PSSW-PTNV Rev. 0.1 - 15/05/02...
  • Page 145 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 R30,R43 R35,R36 R37,R63 1K32 100R 560K MIA22UH R1/5W R50,R61 10R/1W 2K62 R62,R67 820R 12K7 87W20K 82R/2W TR1,TR3 HC5K LM7812 OP07 LM7805 UA78S40DC U5,U9 LM358 IR2127 LT1076CT UC3823 180nF Appendice Tecnica Rev. 0.1 - 15/05/02 PSSW-PTNV - 5 / 6...
  • Page 146 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 Pagina lasciata intenzionalmente in bianco This page was intentionally left blank 6 / 6 - PSSW-PTNV Rev. 0.1 - 15/05/02 Technical Appendix...
  • Page 147 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 Appendice Tecnica Rev. 0.1 - 12/09/02 CPU-NV - 1 / 10...
  • Page 148 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 2 / 10 - CPU-NV Rev. 0.1 - 12/09/02 Technical Appendix...
  • Page 149 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 Appendice Tecnica Rev. 0.1 - 12/09/02 CPU-NV - 3 / 10...
  • Page 150 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 CPU NEW VERSION Bill Of Materials Page Item Quantity Reference Part _________________________________________________________ 47UF/16 CT1UF/16 C3,C4,C11,C12,C13,C14, CM100PF C5,C6,C9,C16,C17,C18,C19, CM.1UF C20,C21,C22 CM1KPF CP.33UF CM4700PF DZ1,DZ2 5V6-0.5W DSS-310-223 STRIP11M JP2,JP4,JP5 STRIP2M STRIP8M J1,J3 CON10AP CON16AP TQ2-5V NEW-SIL109-10K RP2,RP3 NEW-SIL214-100R R1,R2...
  • Page 151 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 Appendice Tecnica Rev. 0.1 - 12/09/02 CPU-NV - 5 / 10...
  • Page 152 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 6 / 10 - CPU-NV Rev. 0.1 - 12/09/02 Technical Appendix...
  • Page 153 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 DISPLAY SECTION Bill Of Materials Page1 Item Q.ty Reference Part ____________________________________________________________________________________________ C1,C2,C3,C4,C5,C6,C13, CM.1uF C14,C15,C16,C17,C18,C19, C20,C21 C7,C8,C9,C10 CT1/16 C11,C12 CM100PF DZ1,DZ2,DZ3,DZ4 15V-0.5W D1,D2,D3,D4,D5,D6 7303 H2,H1 STRIP2M STRIP11M J3,J4,J5,J6,J7 JUMPER R1,R2 100R R3,R4,R5,R6,R7,R8,R9,R10, 680R R11,R12,R13,R14,R15,R16, R17,R18,R19,R20,R21,R22, R23,R24,R25,R26,R27,R28, R29,R30,R31,R32,R33,R34, R35,R36,R37,R38,R39,R40,...
  • Page 154 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 Versione precedente, solo per riferimento Former version, for reference only 8 / 10 - CPU-NV Rev. 0.1 - 12/09/02 Technical Appendix...
  • Page 155 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 Versione precedente, solo per riferimento Former version, for reference only Appendice Tecnica Rev. 0.1 - 12/09/02 CPU-NV - 9 / 10...
  • Page 156 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 DISPLAY CPU NEW VERSION Bill Of Materials Page Item Quantity Reference Part _________________________________________________________ C1,C2,C3,C4,C5,C6,C15, CM.1UF C7,C8 CP22NF C9,C10,C11,C12 CT1/16 C13,C14 CM100PF DZ7,DZ8,DZ9,DZ10 15V-0.5W D1,D2,D3,D4,D5,D6 7303 STRIP11F STRIP2F RP1,RP2,RP3,RP4 NEW-SIL214-150R NEW-SIL214-1K NEW-SIL214-47K R1,R2 100R S1,S2,S3 U1,U2 MC14499 40106...
  • Page 157 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 Technical Appendix Rev. 0.1 - 06/09/02 CSSDC30A003 - 1 / 6...
  • Page 158 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 2 / 6 - CSSDC30A003 Rev. 0.1 - 06/09/02 Technical Appendix...
  • Page 159 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 Technical Appendix Rev. 0.1 - 06/09/02 CSSDC30A003 - 3 / 6...
  • Page 160 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 4 / 6 - CSSDC30A003 Rev. 0.1 - 06/09/02 Technical Appendix...
  • Page 161 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 SLSDC30A002 Bill Of Materials Page1 ItemQuantity Reference Part _______________________________________________________________________________________________ COD1 IRV30CT C1,C25,C26,C27,C45,C46, 10uF C2,C5,C10,C11,C12,C13, 0.1uF C20,C21,C23,C28,C29,C32, C37,C38,C43,C44,C49,C52 C3,C4,C48,C54 47uF C6,C7,C8,C9,C31,C53 100uF C17,C14 C18,C15 C19,C16 100pF C22,C24,C36 2.2uF 220uF C33,C34,C35 10nF C39,C40 47pF CV40pF CV20pF C50,C51 22pF D1,D5...
  • Page 162 PTRL-NV/2/S3 / PTRL-NV/2/HP/S3 R18,R25,R58 14K0 R27,R20 7K15 R29,R22 2K49 R30,R23 1K78 R35P,R36 82K5 R45,R43 22K1 R46,R44 680H0 R47,R49,R81 470K0 R54,R55,R115 8K20 R56,R57,R116 39K0 R67,R68,R69 49K9 124K0 R76,R95,R96 47K0 R78,R79,R80 22K0 4K42 R98,R100,R112 2K20 R101 3K30 R102,R109 100K0 R103 56K0 R104...

This manual is also suitable for:

Ptrl-nv/2/hp/s3

Table of Contents
