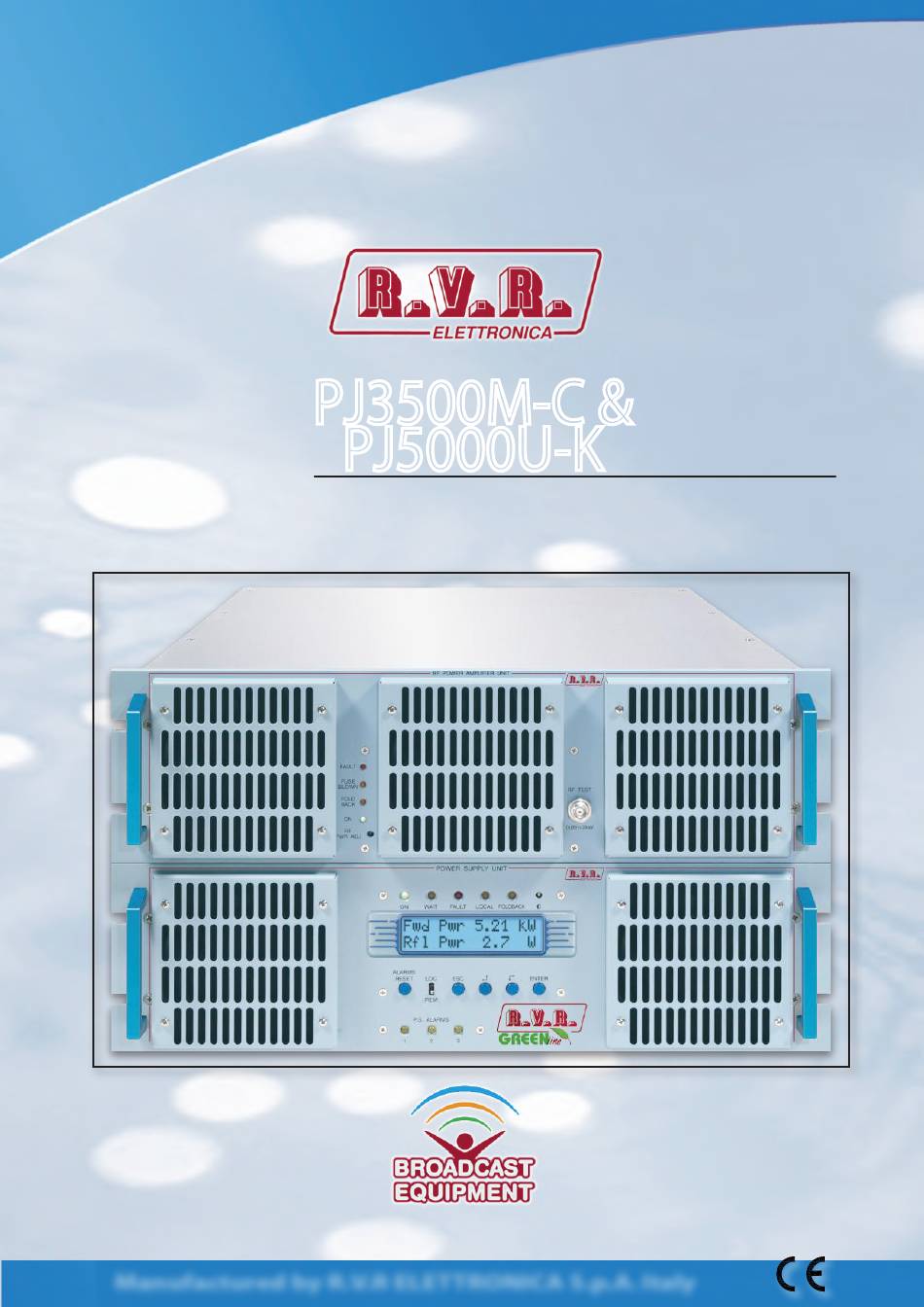

  • Page 1 PJ3500M-C & PJ5000U-K USER MANUAL VOLUME1 Manufactured by R.V.R ELETTRONICA S.p.A. Italy...
  • Page 2 Declaration of Conformity Hereby, R.V.R. Elettronica SpA, declares that this FM transmitter is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
  • Page 3 PJ3500M-C & PJ5000U-K WARNING The following information is needed in order to perform the change of output power. The non-respect of this content may cause damage to the equipment or to the people. Menus and images are for illustration purposes only and may differ from rea- lity.
  • Page 4 PJ3500M-C & PJ5000U-K WARNING The following information is needed in order to perform the change of output power. The non-respect of this content may cause damage to the equipment or to the people. Menus and images are for illustration purposes only and may differ from rea- lity.
  • Page 5 PJ3500M-C & PJ5000U-K ECLARATION OF ONFORMITY We, the undersigned, Manufacturer’s Name: R.V.R. Elettronica SpA Manufacturer’s Address: Via del Fonditore 2/2c Zona Ind. Roveri 40138 Bologna Italy Certify and declare under our sole responsibility that the product: Product Description: FM Amplifier for VHF audio broadcasting...
  • Page 6 PJ3500M-C & PJ5000U-K ECLARATION OF ONFORMITY We, the undersigned, Manufacturer’s Name: R.V.R. Elettronica SpA Manufacturer’s Address: Via del Fonditore 2/2c Zona Ind. Roveri 40138 Bologna Italy Certify and declare under our sole responsibility that the product: Product Description: FM Amplifier for VHF audio broadcasting...
  • Page 7 PJ3500M-C & PJ5000U-K Technical Specification PJ3500M-C PJ5000U-K U.M. Parameters Conditions GENERALS Frequency range 87.5 ÷ 108 87.5 ÷ 108 Rated output power 3500 5000 Spurious & harmonic suppression <75 (80 typical) <75 (80 typical) Ambient working temperature °C 0 to + 50 (operational -10)

  • Page 8: Table Of Contents

    PJ3500M-C & PJ5000U-K Table of Contents Preliminary Instructions Warranty First Aid Treatment of electrical shocks Treatment of electrical Burns General Description Unpacking Features PS Module Frontal Panel PS module Rear Panel PS Connector Description RF Module Frontal Panel RF module Rear Panel...

  • Page 9: Preliminary Instructions

    2. Warranty La R.V.R. Elettronica S.p.A. warrants this product to be free R.V.R. Elettronica S.p.A. shall not be liable for injury to from defects in workmanship and its proper operation subject persons or damage to property resulting from improper use to the limitations set forth in the supplied Terms and Conditions.

  • Page 10: First Aid

    PJ3500M-C & PJ5000U-K • Two rescuers: one rescue breath after each 5 Units returned without a return authorisation may compressions. be rejected and sent back to the sender. • Do not stop chest compressions while giving Be sure to include a detailed report mentioning all artificial breathing.

  • Page 11: General Description

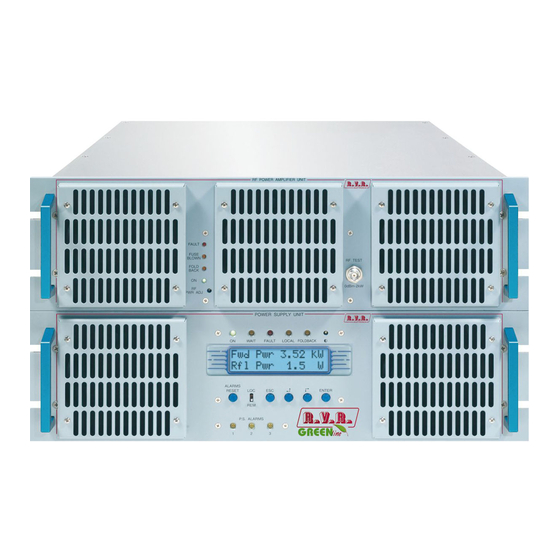

    4. General Description The PJ3500M-C & PJ5000U-K are an radio broadcasting amplifier manufactured by R.V.R. Elettronica SpA featuring adjustable RF power output up to 3500 or 5000 W under 50 Ohm standard load and less than 70 W drive power requirement. The PJ3500M-C & PJ5000U-K is designed to being contained into a 19” rack box of 6HE.

  • Page 12: Features

    (+5% and -50%) referred to the nominal power of the equipment: for example from 1750W to 3675W in case of PJ3500M-C, or from 2500W to 5250W in case of PJ5000U-K; outside these limits the equipment is able to work properly but can not guarantee an efficiency of 70%.

  • Page 13: Ps Module Frontal Panel

    RCT/PS12 PJ5000U-K PJ3500M-C Figure 4-2: theory of operation 4.3 PS Module Frontal Panel 4.3.1 Frontal Panel description of PJ3500M-C & PJ5000U-K [1] AIR FLOW Grill for the ventilation flow passage [2] ON Green LED indicating the amplifier is switched on...

  • Page 14: Ps Module Rear Panel

    Button used to accept a parameter’s value or to enter into a menu 4.4 PS module Rear Panel 4.4.1 Rear Panel description of PJ3500M-C & PJ5000U-K [1] MAINS FUSE Protection fuses of the power supplies 1,2 and 3 [2] MAINS CONNECTOR...

  • Page 15: Ps Connector Description

    PJ3500M-C & PJ5000U-K 4.5 PS Connector Description 4.5.1 Telemetry Type: Female DB25 Internal SWR 4.3V x F.S. RF power amplifier voltage 3,9V x 50V Reflected Power 4.3V x F.S. Interlock Set 4 “On” command Set 1 WAIT Alarm reset Interlock Temperature 3.9V x 100°...
  • Page 16 PJ3500M-C & PJ5000U-K 4.5.3 I C Connector Type: Female DB9 SDA Serial Data SCL Serial Clock GND GND 4.5.4 Com Bus Type: Male DB9 485+ 485- ON OFF C INP PWR ST BY PWR REG User Manual / 34 Rev. 1.0 - 05/04/13...
  • Page 17 PJ3500M-C & PJ5000U-K 4.5.5 Interconnection PS-RF Type: DB37 female GND, Internally connected with 12/14/15/23/25/26/28/31/33 V TOT R PWR TEMP PS OFF PS REG PWR REG ON OFF CLIX RESET AL GND, Internally connected with 1/14/15/23/25/26/28/31/33 485+ GND, Internally connected with 1/12/15/23/25/26/28/31/33...

  • Page 18: Rf Module Frontal Panel

    PJ3500M-C & PJ5000U-K 4. RF Module Frontal Panel 4.6.1 Frontal Panel description of PJ3500M-C & PJ5000U-K [1] AIR FLOW Grill for the ventilation flow passage [2] FAULT Red LED that indicates a fault that cannot be automatically reverted [3] FUSE BLOWN...

  • Page 19: Rf Module Rear Panel

    PJ3500M-C & PJ5000U-K 4.7 RF module Rear Panel 4.7.1 Rear Panel description of PJ3500M-C & PJ5000U-K [1] RF OUT RF output connector (7/8” EIA flange) [2] PLUG 1 Plug 1 for the supply of 50V incoming from module PS [3] PLUG 2...

  • Page 20: Rf Connector Description

    PJ3500M-C & PJ5000U-K 4.8 RF Connector Description 4.7.2 Interconnection PS-RF Type: DB37 female GND, Internally connected with 12/14/15/23/25/26/28/31/33 V TOT R PWR TEMP PS OFF PS REG PWR REG ON OFF CLIX RESET AL GND, Internally connected with 1/14/15/23/25/26/28/31/33 485+...

  • Page 21: Quick Guide For Installation And Use

    PJ3500M-C & PJ5000U-K 5. Quick guide for installation and use This section provides a step-by-step description of equipment installation and configuration procedure. Follow these procedures closely upon first power-on and each time any change is made to general configuration, such as when a new transmission station is added or the equipment is replaced.
  • Page 22 PJ3500M-C & PJ5000U-K @230V @230V @400V single phase three phase three phase (1x) F6,3T tipo (1x) F6,3T tipo (1x) F6,3T tipo AUX OUT FUSE 5x20 5x20 5x20 (chap. 6.2 – position [9]) (1x) F6,3T tipo (1x) F6,3T tipo (1x) F6,3T tipo...
  • Page 23 PJ3500M-C & PJ5000U-K • Power supply connection by means of cable coming out of the PS module ending with the ILME CXM 4/2 type of socket (DC Output). Only for PJ5000U- K there are two outgoing cables, from PS module, to connect.
  • Page 24 PJ3500M-C & PJ5000U-K Connect the RF output to the antenna cable or to a dummy load capable of dissipating the power generated by the amplifier. An ILME model CXF4/2 multipole socket is supplied with the amplifier to power the machine. The socket must be connected to the multipole cable that will be wired to the mains switchboard.

  • Page 25: Operation

    5000 watts for PJ5000U-K model or max. 3500 watts for PJ3500M-C model (keep in mind that due to the measurement digitalization effect it might not be possible to obtain a reading of exactly 5 kW or 3.5 kW but a lightly higher or lower value which...

  • Page 26: Software

    PJ3500M-C & PJ5000U-K As a rule, the machine does not need to be manned to work. If any alarm conditions occur, they will be managed automatically by the protection system or notified to the user by means of LEDs on the panel and messages on the display.
  • Page 27 PJ3500M-C & PJ5000U-K Press the ESC key to view the selection screenful from which to access all the menus: To access one of the submenus select its name (which is underlined by a blinking cursor) using the RIGHT or LEFT keys and then press the ENTER key.
  • Page 28 PJ3500M-C & PJ5000U-K • Forward Power (Fwd Pwr) • Reflected Power (Rfl Pwr) • SWR (Standing Wave Ratio) • Input Power (Inp Pwr) • Internal SWR (Int SWR) Depending on the machine’s configuration a few measurements might be disabled. The figure below shows the complete aspect of this screen (only two lines can be seen at a time, use the UP and DOWN keys to scroll through it): 5.3.3 Power Amplifier Menu (P.A.)
  • Page 29 In this example the alarm thresholds are as follows: • PwrGd1 4000 W (80% x 5000 W x mod. PJ5000U-K) 2800 W (80% x 3500 W x mod. PJ3500M-C) (50% x 5000 W x mod. PJ5000U-K) • PwtGd2 2500 W (50% x 3500 W x mod. PJ3500M-C) 1750 W • RflWar...
  • Page 30 PJ3500M-C & PJ5000U-K It consists of a certain number of lines each of which contains the name of the variable controlled by the protection system and the type of intervention carried out by the system. Said intervention may be as follows: X - (Y), Wait, or Dis. (Disabled).

  • Page 31: Protection System

    PJ3500M-C & PJ5000U-K In the analog display mode a small triangle indicates the reflected power level set in the Alarm Threshold Setting Menu (RflWar), whereas the bar at the bottom shows the instant reflected power level. This type of display might be useful when a device to be tuned is connected to the amplifier’s output such as a cavity.
  • Page 32 PJ3500M-C & PJ5000U-K • If the equipment is off, waiting for the cycle time to be reached, or if it is definitively off in FAULT state, press the ALARMS RESET button to immediately turn the amplifier ON and reset the alarm counters.

  • Page 33: Identification And Access To The Modules

    PJ3500M-C & PJ5000U-K 6. Identification and Access to the Modules The PJ3500M-C & PJ5000U-K is made up of various modules linked to each other through connectors so as to make maintenance and any required module replacement easier. .1 Upper view of PS section The figure below shows the upper view of the machine with the various components pointed out.

  • Page 34: Top View Of Rf Section

    PJ3500M-C & PJ5000U-K .2 Top View of RF section The figure below shows the upper view of the machine with the various components pointed out. figure 6.2 [1] Low-pass Filter Board [2] Amplifier Modules [3] Bias Boards and CPU board...

  • Page 35: Working Principles

    PJ3500M-C & PJ5000U-K 7. Working Principles 7.1 Power Supply Change To use the amplifier with different types of power supply you should connect the mains power supply socket as outlined in chapter 5. Also modify the connections inside the varistors board box as explained below.
  • Page 36 PJ3500M-C & PJ5000U-K • PIN4 of the main connector is internally connected to PIN3 by Ø 6mm wire. • PIN5 is directly wired to ground. 7.1.2 Three-Phase Wiring For the three-phase, the configuration of the external power supply plug must have the following characteristics: •...
  • Page 37 PJ3500M-C & PJ5000U-K • Make the JP3 connection, on the Rectifier card, between PIN 1 and 2 to select 230 Volts, or between PIN 2 and 3 for 115 Volts. Connection for the selection of 115 or 230 Volts •...

  • Page 38: Ps Section

    PJ3500M-C & PJ5000U-K Connection for the selection of 115V or 230V three fase with neutral wire Following is a brief description of the different module functions; all diagrams and board layout diagrams are included in the “Technical Schedule” Vol.2. 7.2 PS Section 7.2.1 Surge Protection...

  • Page 39: Rf Section

    7 .3.1 RF Power Amplifier The RF power amplifying section consists in 8 (mod. PJ5000U-K) or 6 (mod. PJ3500M-C) power modules coupled by a Wilkinson splitter and combiner and implemented in strip-line technology. The RF modules, the splitter and the combiner are housed inside the top part of the equipment.
  • Page 40 PJ3500M-C & PJ5000U-K The splitter is used to divide input power from PWR Input Measure card and to supply a part of it to every RF module. The combiner is used to combine output power from every RF module so as to have total power amplifier.
  • Page 41 PJ3500M-C & PJ5000U-K 7.3.5 Directional Coupler The task of these two cards that seem identical is to supply the power measurement. They are installed on the input RF connector on the inside of the machine. One card supplies the amplifier’s forward power whereas the other one supplies the reflected power.

  • Page 42: Low-Drive Power" Option (/Ld)

    PJ3500M-C & PJ5000U-K 8. “Low-Drive Power” Option (/LD) The figure shown the top view of RF section of the equipment with LD option. The board comes described in the continuation of this chapter. Figure 8-1: “Low-Drive power” Board 8.1 “Low-Drive power” Board The “Low-Drive power”...
  • Page 43 ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
