R.V.R. Elettronica HC4 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HC4
User Manual
LCD version
Manufactured by
Italy

Advertisement

Table of Contents
loading

Related Manuals for R.V.R. Elettronica HC4

Summary of Contents for R.V.R. Elettronica HC4

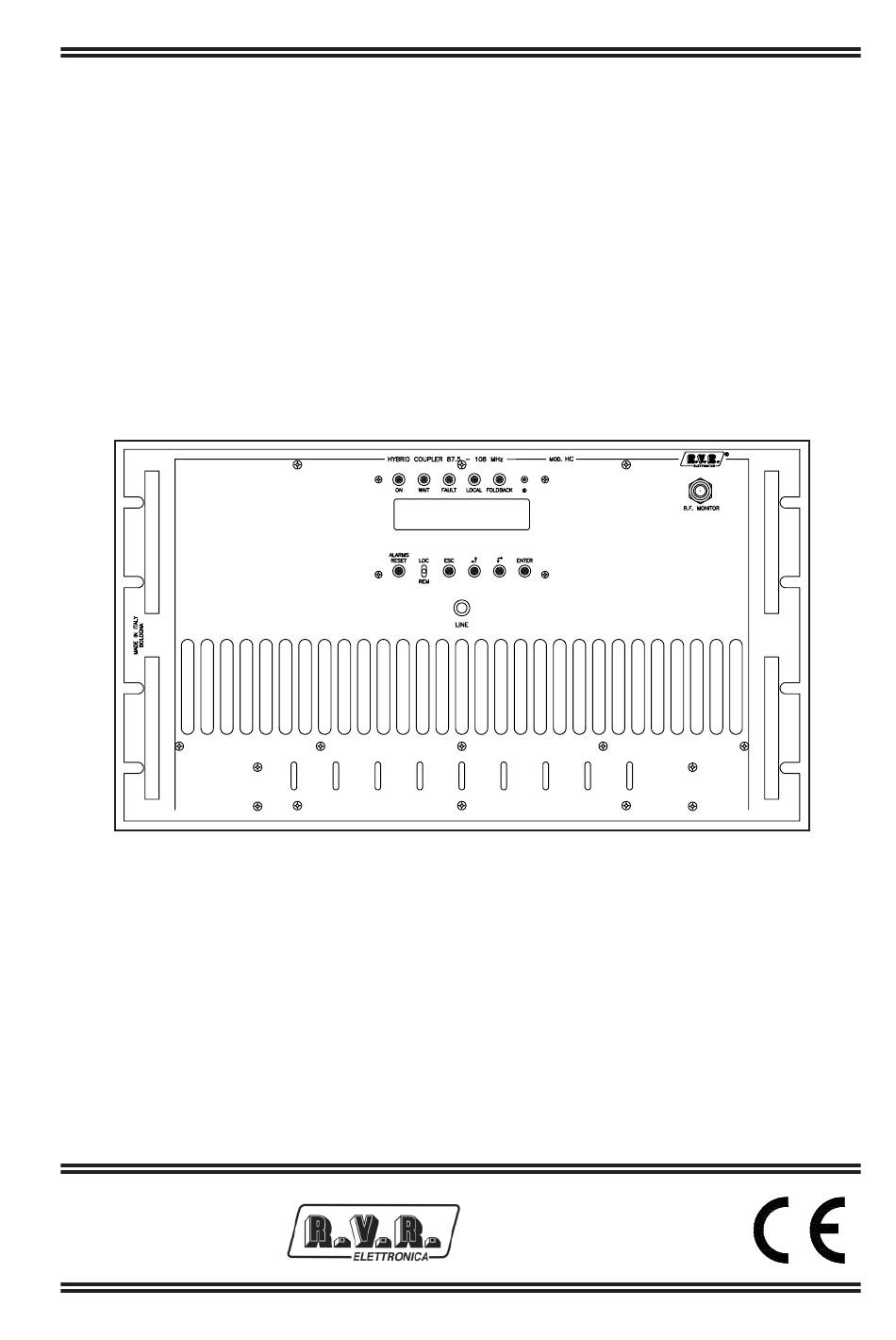

  • Page 1 User Manual LCD version Manufactured by Italy...
  • Page 2 01/04/2002 Revision History Version Date Reason Editor 01/04/2002 New version J. Berti HC4 - User Manual Version 1.0 © Copyright 2002 R.V.R. Elettronica SpA Via del Fonditore 2/2c - 40138 - Bologna (Italia) Telefono: +39 051 6010506 Fax: +39 051 6011104 Email: info@rvr.it...

  • Page 3: Table Of Contents

    Table of Content 1. Preliminary instructions 2. Warranty 3. First Aid 3.1 Treatment of electrical shocks 3.2 Treatment of electrical Burns 4. General Desciption 5. Installation and use 5.1 Preparation 5.2 Operation 5.3 Software 6. Controls, Indicators and Connectors 6.1 Front Panel 6.2 Rear Panel 6.3 Connectors Description 7.
  • Page 4 This page was intentionally left blank Rev. 1.0L - 01/04/02 User Manual...

  • Page 5: Preliminary Instructions

    In this case can be requested to user to take the necessary measures. R.V.R. Elettronica SpA reserves the right to modify the design and/or the technical specifications of the product and this manual without notice. User Manual Rev.
  • Page 6 This page was intentionally left blank 2 / 34 Rev. 1.0L - 01/04/02 User Manual...

  • Page 7: Warranty

    2. Warranty Any product of R.V.R. Elettronica is covered by a 12 (twelve) month warranty. For components like tubes for power amplifiers, the original manufacturer’s warranty applies. R.V.R. extends to the original end-user purchaser all original manufacturers warranties which are transferable and all claims are to be made directly to R.V.R.
  • Page 8 Replacement and warranty parts may be order from the following address. Be sure to include the equipment model and serial number as well as part description and part number. R.V.R. Elettronica SpA Via del Fonditore, 2/2c 40138 BOLOGNA ITALY Tel.

  • Page 9: First Aid

    3. First Aid The personnel employed in the installation, use and maintenance of the device, shall be familiar with theory and practice of first aid. 3.1 Treatment of electrical shocks 3.1.1 If victim is not responsive follow the A-B-C's of basic life support •...

  • Page 10: Treatment Of Electrical Burns

    3.1.2 If victim is responsive Keep them warm • • Keep them as quiet as possible • Loosen their clothing (a reclining position is recommended) • Call for medical help as soon as possible 3.2 Treatment of electrical Burns 3.2.1 Extensive burned and broken skin •...

  • Page 11: General Desciption

    RF amplified signal to be forwarded to the antenna output. The HC4 is produced in the version for four transmitters of 1 kW max output power everyone (total 4 kW).
  • Page 12 In this way, it is possible to interact (locally or remotely) with the device even in absence of mains supply. The HC4 can be connected to the exciter of the transmitter using a “interlock” cable, so that it is possible for it to deactivate RF power emission in case of misfunctioning of the transmitting system.

  • Page 13: Installation And Use

    RF amplifiers. In the following description, we will in general refer to these external devices. As soon as the HC4 is supplied, verify that the ON LED is lit. The LCD display shows a presentation screen, and after a few seconds it will pass to the default screen, showing the values of the forward and reflected power..

  • Page 14: Software

    Otherwise, the user will only be allowed to read the parameters, but not to change any of them. The management of the HC4 is performed by a generic software used in different classes of equipment produced by R.V.R. Elettronica SpA, like the HC combiners or the RF amplifiers PJ500M-C and PJ1000M.
  • Page 15 Switch ON ~ 5 sec Main Screen Selection Menu ENTER Function Menu ENTER Power Menu ENTER P.A. Menu ENTER Threshold Menu ENTER Alarms Menu ENTER Miscellaneous Menu ENTER Version Menu Figure 5.1 After a few seconds, the main screen will be displayed, reporting the values od Forward power and Reflected power: The management software will remain indefinitely in this default screen, until the user pushes the ESC button.
  • Page 16 From this menu, the user can “switch” ON and OFF the hybrid coupler. The result of this command is that when the HC4 is put in OFF mode, the inner conductor of the “Alarm” connector is shorted to ground, so that the exciter is put in stand-by mode (this will happen only if provided with an interlock connector, and if correctly connected with the hybrid coupler).
  • Page 17 5.3.3 Power Amplifier Menu (P.A.) This multi-line scrollable menu reports to the user some internal measurement of the device: • Voltage (VPA) - Not active Current (IPA) - Not active • • Efficiency - Not active • Temperature • Mains voltage (Mains - percentage variation with respect to the nominal voltage) The complete aspect of the screen is the following figure (please note that only two lines at a time are visible, use the UP and DOWN buttons to scroll): Please note that the first three lines of this screen are not active since they are not...
  • Page 18 (Reflected Warning). The thresholds are expressed as percentage of full-scale value of the relevant quantity. The full scakle values for the HC4 are the following: Forward power 4000W •...
  • Page 19 The function of this menu is essentially a help for the technician to identify the causes of possible malfunctions of the transmitter. 5.3.6 Various menu Two operations can be performed using this menu: Setup the address of the I C serial bus type connection •...
  • Page 20 Foldback The foldback circuit controls the level of a dc voltage that is available on the dedicated BNC connector (F.BACK) on the rear of the HC4. The foldback voltage remains approximately constant until one of the amounts that are connected to the foldback doesn’t surpass its nominal value (full scale).
  • Page 21 If any reason makes it impossible to reach a new stable point, the protection system of the HC4 will react with its Shut off/Restart procedure. 5.3.8.2 Shut off/Restart...
  • Page 22 This page was intentionally left blank 18 / 34 Rev. 1.0L - 01/04/02 User Manual...

  • Page 23: Controls, Indicators And Connectors

    6. Controls, Indicators and Connectors This chapter describes the front and rear panels of the HC4, with a brief indication of all the different components. 6.1 Front Panel [1] DISPLAY LCD Display. [2] ON Green LED, lit when the amplifier is switched on.

  • Page 24: Rear Panel

    6.2 Rear Panel [1] INTERLOCK/ALARMS BNC connectors to inhibit an exteral device, as an exciter. In case of fault, the inner connector is shorted to ground. [2] R.F. MONITOR BNC RF monitor output. The output level is -60 dB below the power output in the band 87.5-108 MHz.

  • Page 25: Connectors Description

    Dig Out OC Active when the coupler is “ON” Notes: • To give a command to the HC4 (ON, OFF, Reset), bind the relative pin to ground for approx 500 ms. • OC output (Open Collector) are “Active” when conducing.
  • Page 26 6.3.3 I C Connector Type: DB9 Female - Used for I C networking Serial Data Serial Clock 22 / 34 Rev. 1.0L - 01/04/02 User Manual...

  • Page 27: Technical Specifications

    7. Technical Specifications 7.1 Dimensional and Environmental Specifications Cabinet Dimensions 454 mm x 265 mm x 615 mm Panel Dimensions 483 mm x 132.5 mm Weight Approx. 30 Kg -10 °C ÷ 50 °C Operating Temperature Range Umidity 90% Maximum, whithout condensation 7.2 Electrical Specifications A.C.
  • Page 28 This page was intentionally left blank 24 / 34 Rev. 1.0L - 01/04/02 User Manual...

  • Page 29: Electrical Description

    8. Electrical description HC4 is composed of different modules wired between them with connectors, allowing for easy servicing or module substitution. RF output to Amp 1 RF input from exciter RF output RF Splitter to Amp 4 Telemetry, RS232, Display, Keys Interlock ...

  • Page 30: Modules Identificarion (Bottom View)

    8.2 Modules Identificarion (bottom view) 2 3 4 Unbal Power card Transformer Remote Card Voltage Changer Temperature Sensor [10] Blowers 26 / 34 Rev. 1.0L - 01/04/02 User Manual...

  • Page 31: Theory Of Operation

    9. Theory of Operation The figure shows the block diagrams of HC4. The blocks are described in the following chapter: 9.1 Power supply This equipment has only a transformer with different outputs. The used outputs are: 0-18V for the supply of the remote card and 0-11,5V for the CPU section. The rectifiers and the stabilizers are in the two cited cards.

  • Page 32: Remote Card

    The hybrid coupler is factory-adjusted so that the transmitter it is included in will work satisfyingly works over the whole FM band. Cases may happen, that it is necessary to perform the RF adjustment of the HC4, for example if the RF interconnection cables with the amplifiers have been sustituted with other of slightly different characteristics or length, or if it is desirable to optimize the transmitter’s performances on a certain frequency.
  • Page 33 and at minimum power. On the coupler, set the display for the visualization of forward power. Set the variable capacitor in their middle position. Gradually increase the exciter power until the overall output power of the transmitter reaches around the 80% of its nominal power. Adjust the variable capacitors (1) and (2) (Figure 9.1) related to the first amplifier, to maximize the forward power measured in the coupler Figure 9.1...
  • Page 34 This page was intentionally left blank 30 / 34 Rev. 1.0L - 01/04/02 User Manual...

  • Page 35: Maintenance Procedures

    MAINTENANCE LEVEL 1 10.3 Routine Maintenance The only regular maintenance needed by HC4, is the periodic substitution of the blowers, and the cleaning of dust filters and any dust accumulated inside the amplifier. The time between overhauling of the blowers depends upon several environmental factors, temperature, humidity, dust pollution etc.
  • Page 36 10.4.2 Unbal Power Card Replacement • Open the top and bottom covers of the unit. • Unsolder the wires connecting the unbal power card to the other devices. • Unsolder the coaxial cable that connecting the unbal power card to the power coupler.

  • Page 37: Calibration Procedures

    NOTE: This section describe the adjustment of the CPU group, in case of a substitution if it is breakdown. • After changing the assembly, connect the amplifier as shown in the figure below. • Switch ON the HC4. Temperature reading adjustment • Measure the temperature of the cooling fin with a thermometer. •...
  • Page 38 Trimmer TR7 adjustment • The trimmer TR7 must be turned completely counter-clockwise, to protect the input channel to the CPU. FOLBACK intervention adjustment • Be sure that the exciter is not operative. • Measure the voltage on the PIN1 of JP7 on the power supply card with a multimeter, than rotate the trimmer TR9 to obtain a voltage of 0V.

  • Page 39: Appendix

    Questa parte del manuale contiene i dettagli tecnici riguardanti la costruzione delle singole schede componenti l’HC4. L’appendice è composta dalle seguenti sezioni: This part of the manual contains the technical details about the different boards of the HC4.
  • Page 40 Pagina lasciata intenzionalmente in bianco This page intentionally left blank 2 / 2 1.2L - 07/10/02 User Manual Technical Appendix...
  • Page 41 Appendice Tecnica Rev. 1.1 - 31/05/02 WIRING DIAGRAMS - 1 / 2...
  • Page 42 Pagina lasciata intenzionalmente in bianco This page was intentionally left blank 2 / 2 - WIRING DIAGRAMS Rev. 1.1 - 31/05/02 Technical Appendix...
  • Page 43 Appendice Tecnica Rev. 1.0 - 01/04/02 CSSPL-INCH4 - 1 / 4...
  • Page 44 2 / 4 - CSSPL-INHC4 Rev. 1.0 - 01/04/02 Technical Appendix...
  • Page 45 HYBRID POWER SPLITTER Bill Of Materials Page 1 Item Q.ity Reference Part DESCRIPTION PART ORDER CDE ________________________________________________________________________________________________ R2,R3,R4,R5 50 KDI RES. DI TERM. (KDI) RDT250H0050 RESISTOR 1/4W 5% RSC1/4JH0100 3P3HQ CERAMIC CAPACITOR HQ CSM3,3xk351 C4,C8,C10,C14,C16,C20, T10/80PF TRIMMER CAPACITOR C22,C26 C5,C6,C11,C12,C17,C18, 15PFHQ CERAMIC CAPACITOR HQ CSM150XK351...
  • Page 46 Pagina lasciata intenzionalmente in bianco This page was intentionally left blank 4 / 4 - CSSPL-INHC4 Rev. 1.0 - 01/04/02 Technical Appendix...
  • Page 47 Appendice Tecnica Rev. 1.0 - 01/04/02 CSSMB1HC5 - 1 / 4...
  • Page 48 2 / 4 - CSSMB1HC5 Rev. 1.0 - 01/04/02 Technical Appendix...
  • Page 49 CMB1HC5 Bill Of Materials Page 1 Item Q.ty Reference Part DESCRIPTION PART ORDER CDE __________________________________________________________________________________________________ R1,R2 RESISTOR 1/4W 5% RSC1/4JH0047 C1,C2 22PF CERAMIC CAPACITOR NP0 CKM220BJ600C CV1,CV2,CV3,CV4 RG303 COAX CABLE RG303 CAVRG303V CN7,CN8 BNC TELAIO CONN. BNC A TELAIO CNTBNCFPV CN2,CN3,CN4,CN5 FLANGE 7/16"...
  • Page 50 Pagina lasciata intenzionalmente in bianco This page was intentionally left blank 4 / 4 - CSSMB1HC5 Rev. 1.0 - 01/04/02 Technical Appendix...
  • Page 51 Appendice Tecnica Rev. 1.0 - 01/04/02 CSPWR-MTRHC5 - 1 / 4...
  • Page 52 2 / 4 - CSPWR-MTRHC5 Rev. 1.0 - 01/04/02 Technical Appendix...
  • Page 53 POWER METER CARD Bill Of Materials Page 1 Item Q.ty Reference Part DESCRIPTION PART ORDER CDE ____________________________________________________________________________________________ 47KCH CHIP RESISTOR RCC1/4JK0047 TC200CH TRIM. REG. VERT. CERMET SMD 33PF CERAMIC CAPACITOR NP0 CKM330BJ600C C2,C3,C4 1NFCH CERAMIC CHIP CAPACITOR CCC102AJ500 BAT83 HOT CARRIER DIODE DHCBAT83 Appendice Tecnica Rev.
  • Page 54 Pagina lasciata intenzionalmente in bianco This page was intentionally left blank 4 / 4 - CSPWR-MTRHC5 Rev. 1.0 - 01/04/02 Technical Appendix...
  • Page 55 Appendice Tecnica Rev. 1.2 - 07/10/02 CSPROTF - 1 / 10...
  • Page 56 TR1 - (Ch.1) Forward power measurement adjust TR2 - (Ch.2) Reflected power measurement adjust TR3 - (Ch.3) Input power measurement adjust TR4 - (Ch.4) VPA measurement adjust TR5 - (Ch.5) IPA measurement adjust TR6 - (Ch.6) Temperature measurement adjust TR7 - (Ch.7) Internal SWR measurement adjust TR8 - (Ch.8) Mains voltage measurement adjust TR9 - Foldback voltage offset adjust TR10 - Foldback trip point adjust...
  • Page 57 Appendice Tecnica Rev. 1.2 - 07/10/02 CSPROTF - 3 / 10...
  • Page 58 CPU Analog Section Bill Of Materials Item Q.ty Reference Part _______________________________________________________________________________ C1,C25,C31, CM.1UF C33,C34,C51, C53,C54,C55, C60,C61,C62,C63 C2,C24 100/25 C3,C4,C5,C6,CD4K7PF C7,C8,C10, C11,C12,C13, C14,C15,C16, C17,C18,C19, C20,C21,C22, C23,C52,C57 C26,C27 CT10/25 CD4KPF C29,C30 CP10KPF C32,C42,C43,CP.22UF C44,C45,C46, C47,C48 C35,C39,C41,CM100PF C36,C37,C38,CT1/16 CD4K7KPF 1000/35 CT1/25 CP1OKPF DZ1,DZ2 5V6/1 6V8-0.5 D1,D2,D4,D221N4004...
  • Page 59 CPU Analog Section Bill Of Materials Item Q.ty Reference Part _______________________________________________________________________________ CON20AP FLAT 40P ZFH-12V PD1,PD2,PD3,LUNENO RP1,RP2 R1,R3,R4,R25, 33K R33,R37,R41, R45,R49,R53, R57,R60 R6,R8,R22 R10,R11, R13,R14,R15, R18,R31,R35,470R R39,R42,R43, R47,R51,R55 R19,R20 R26,R27 100R R28,R29 R34,R50 100K R38,R54 330R R46,R58 RXE020 237R TR1,TR2,TR3,87X-20K TR4,TR5,TR6, TR7,TR8,TR9, TR10...
  • Page 60 6 / 10 - CSPROTF Rev. 1.2 - 07/10/02 Technical Appendix...
  • Page 61 Appendice Tecnica Rev. 1.2 - 07/10/02 CSPROTF - 7 / 10...
  • Page 62 8 / 10 - CSPROTF Rev. 1.2 - 07/10/02 Technical Appendix...
  • Page 63 Scheda CPU Bill Of Materials November 1999 Item Q.ty Reference Part _______________________________________________________________________________ C1,C2,C3, CM.1UF C4,C5,C6, C7,C8,C35, C38,C39,C40,C43 C10,C13,C34 CT1/16 C11,C12,C15,CP.22UF C16,C17,C18, C28,C29,C30, C31,C32,C33,C44 C20,C21,C22,CP.1UF C23,C24,C25, C26,C27 C36,C41,C42 CD1KPF CP.33UF DL1,DL5 DL2,DL3 BAT84 LM336-5.0V 11DQ06 JP1,JP3,JP5 JUMP2 STRIP 14 JP4,JP6,JP7,JUMPER3 JP10 JUMPER STRIP 2 FLAT 40P...
  • Page 64 68HC11F1 MB3773 27C256 74HC594 74HC139 74HC165 PCF8584 U8,U11,U12 40106 U9,U10 ULN2004A LM317 CST-8MHZ 10 / 10 - CSPROTF Rev. 1.2 - 07/10/02 Technical Appendix...
  • Page 65 Appendice Tecnica Rev. 1.0 - 01/04/02 CSPWRSENHC5 - 1 / 4...
  • Page 66 2 / 4 - CSPWRSENHC5 Rev. 1.0 - 01/04/02 Technical Appendix...
  • Page 67 CSPWRSENHC5 Bill Of Materials Page1 Item Q.ty Reference Part Description _________________________________________________________________________________ C2,C1 Cond. chip 0805 C3,C4,C11,C12,C17,C20 Cond. chip 0805 D1,D2,D3,R4,R5,C5,R6,C6, N.C. C7,C8,C9,R11,R13,R14,C14, R15,C15,C16 C13,R16 0.1u Cond. chip HQ Cond. chip tant. 2800 Diode smd CN04PS RA,RB 100H 800W Res. KDI 800W R1,R3,R9 Res.
  • Page 68 Pagina lasciata intenzionalmente in bianco This page was intentionally left blank 4 / 4 - CSPWRSENHC5 Rev. 1.0 - 01/04/02 Technical Appendix...
  • Page 69 Appendice Tecnica Rev. 1.0 - 01/04/02 SLREMOTEHC - 1 / 4...
  • Page 70 2 / 4 - SLREMOTEHC Rev. 1.0 - 01/04/02 Technical Appendix...
  • Page 71 Remote Card Bill Of Materials/Lista Componenti Page Item Q.ty Reference Part Description Part Order Code ________________________________________________________________________________________________ RESISTOR 1/4W 5% RSC1/4JK01,8 4K7 1% RESISTOR 1/4W 1% RSM1/4FK04,7 10K 1% RESISTOR 1/4W 1% RSM1/4FK0010 47K 1% RESISTOR 1/4W 1% RSM1/4FK0047 470K RESISTOR 1/4W 5% RSC1/4JK0470 C3,C4,C5 100nF...
  • Page 72 Pagina lasciata intenzionalmente in bianco This page was intentionally left blank 4 / 4 - SLREMOTEHC Rev. 1.0 - 01/04/02 Technical Appendix...
