Mitchell/Euro Base for Gladiator Camera Doorway Dolly
(GLDR-MB)
A s s e m b l y M a n u a l

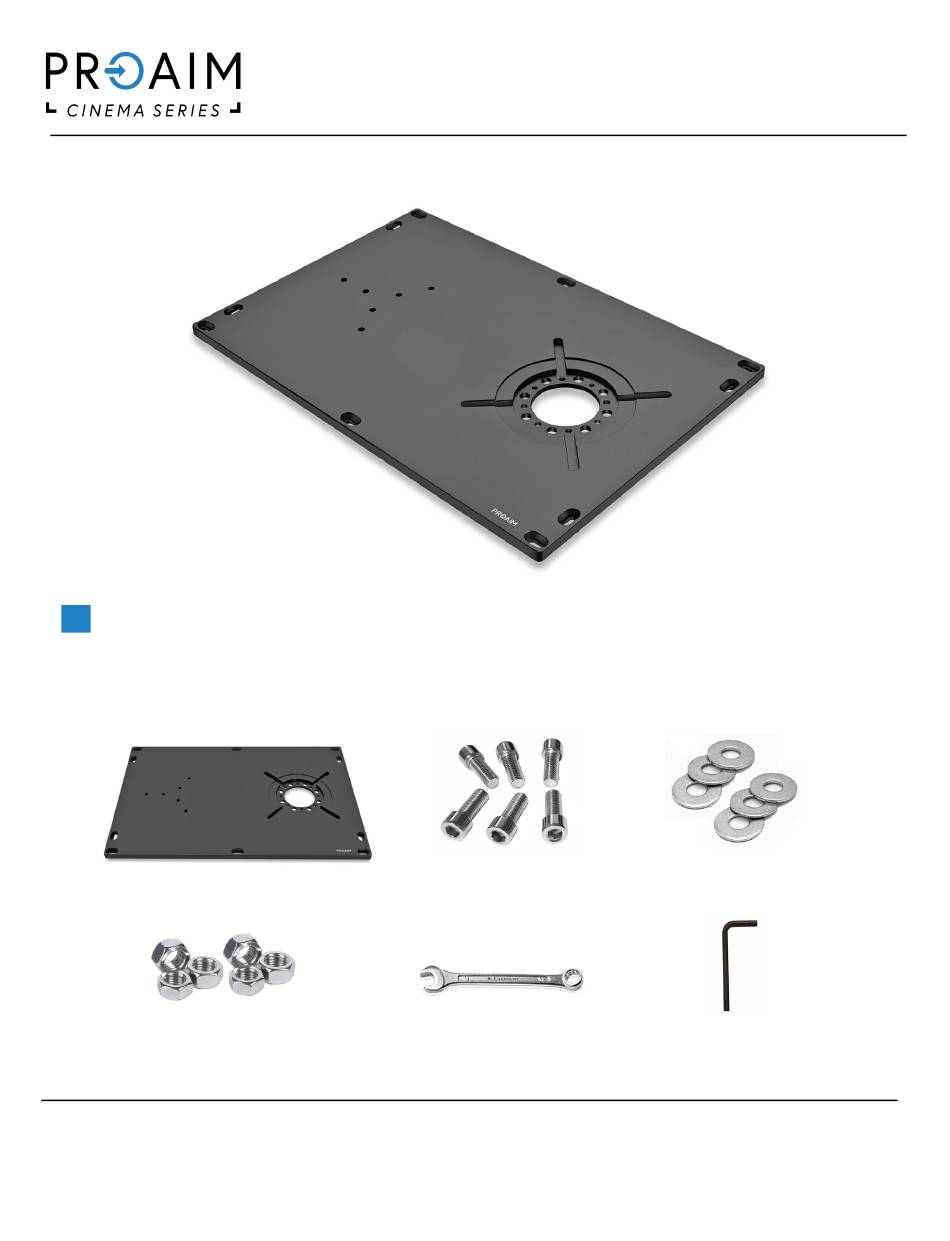

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
6 x Allen Bolts
6 x Washers
Mitchell/Euro Base
(Size: 8x20mm)
(Size: 8x16x1.5mm)
6 x Nuts
1 x Spanner
L-Type Allen Key
(Size: 8mm)
(Size: 13mm)
(Size: 6mm)
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PROAIM CINEMA Series
Summary of Contents for PROAIM CINEMA Series
- Page 1 Mitchell/Euro Base for Gladiator Camera Doorway Dolly (GLDR-MB) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 Mitchell/Euro Base Setup Mitchell/Euro Base Mounting • Slide the Mitchell/Euro base onto the Gladiator dolly (Not Included). • Align the base holes with the corresponding holes on the dolly. • Insert the 8x20mm Allen bolt into the aligned hole, as shown in the image. •...
- Page 3 • Secure the assembly by attaching the castle ring from the bottom and tightening it firmly. • The Scaffold Pole is now properly mounted. Airwave V15 Camera Vibration Isolator Arm Mounting • Loosen the knobs and open the clamps on the Airwave Isolator Arm (Not Included).
- Page 4 • Tighten the bolts securely using a 6mm Allen key. • The Euro Mount Adapter is now securely attached. Feature: Equipped with a built-in Mitchell mount and Euro mounting threads, this base offers easy attachment to both Mitchell-based and Euro-compatible equipment - a perfect choice for versatile, high-performance setups.
- Page 5 YOUR PROAIM MITCHELL/EURO BASE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
