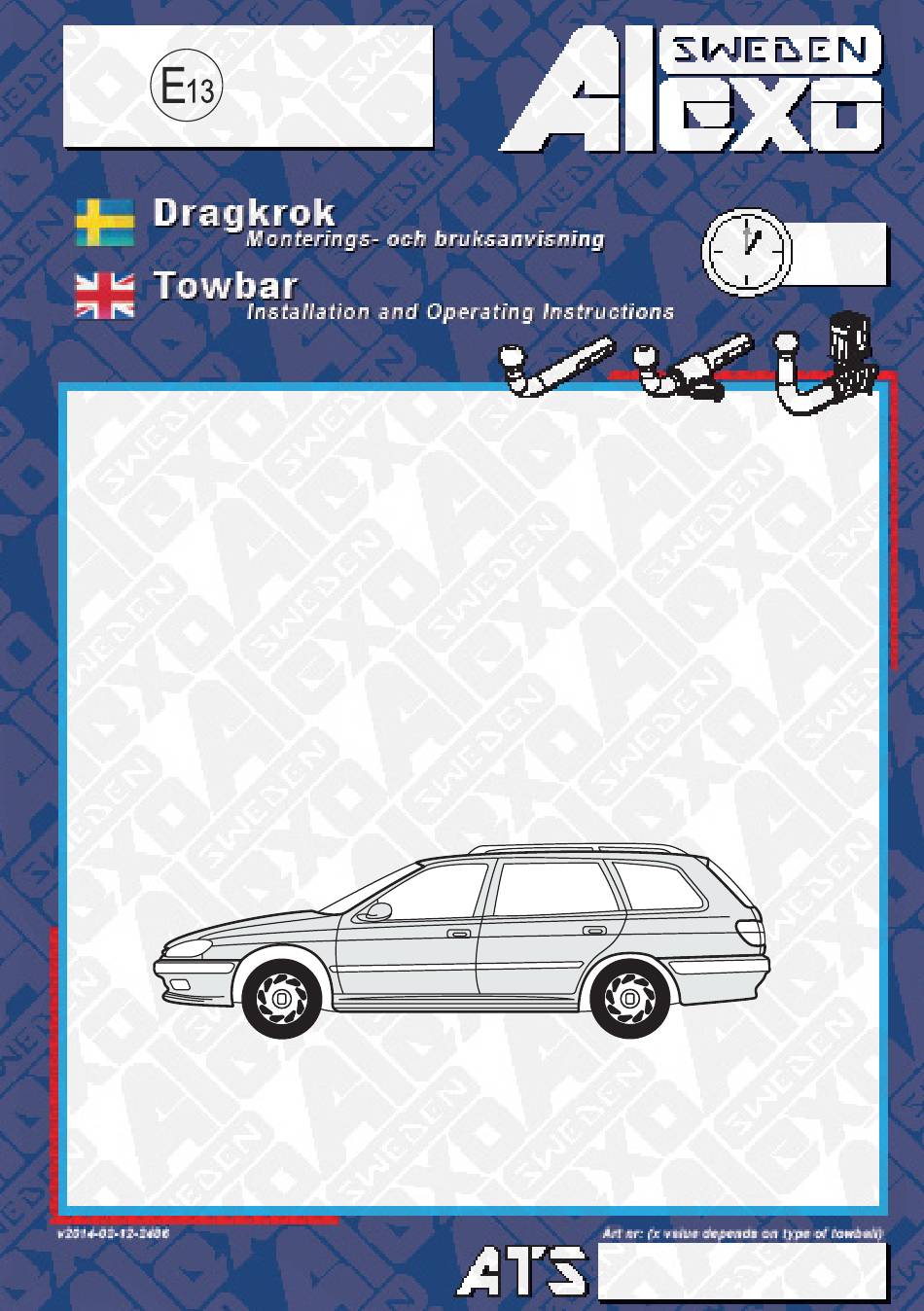

- Page 1 00-0678 120’ Peugeot 406 Break 1996»2004 647-1800...
- Page 2 rev. 2014-04-04 DC...
- Page 3 The 5-year guarantee ensures the continuing functionality of the towbar during this time period. It is however required to have yearly checkups (free of charge at ATS reseller) in order for the guarantee to be valid. Each checkup must be documented below.
- Page 4 647-1800 Included Material Inkluderat material Elementos de unión de la bola Fixing items of the coupling head 2x M10 Delar för dragkrokens fäste Elementid i unione della sfera Befestigungselemented er Kugel 1x 10 x 65 (8.8) 1x 10 x 70 (8.8) Elementos ques e aportan Provided items Medföljande delar...
- Page 5 Towbar installation diagram Dragkrok installationsdiagram...
-
Page 6: Fitting Instructions
647-1800 Fitting instructions 1. Introduce the four caged nuts provided on the chassis holes that match with points “1”. 2. Mount manually brackets “A” to points “1” using M10x40 bolts, flat washers and 10 mm. spring washers. 3. Place towbar between brackets “A” and mount points “2” using M12x30 bolts, flat washers and 12 mm. - Page 8 647-1800 Removal of type 1 towball Demontering av typ 1 drag Fitting of type 1 towball Montering av typ 1 drag...
- Page 9 Removal of type 2 towball Demontering av typ 2 drag Fitting of type 2 towball Montering av typ 2 drag...
- Page 10 647-1800 Maintenance of detachable towballs Underhåll av demonterbara dragkrokar...
- Page 11 © Copyright Alexo ATS This catalogue and all information within it belongs to Alexo ATS, any use of the material other than as an instruction manual is strictly forbidden and will be reported. All kinds of reproduction and /or usage of material from this catalogue is not permitted.
- Page 12 T= 1500 kg D= 8,34 kN S= 80 kg...
