fantastic furniture Pod Bedside Manual

1 drawer
Hide thumbs

Advertisement

Quick Links

Download this manual

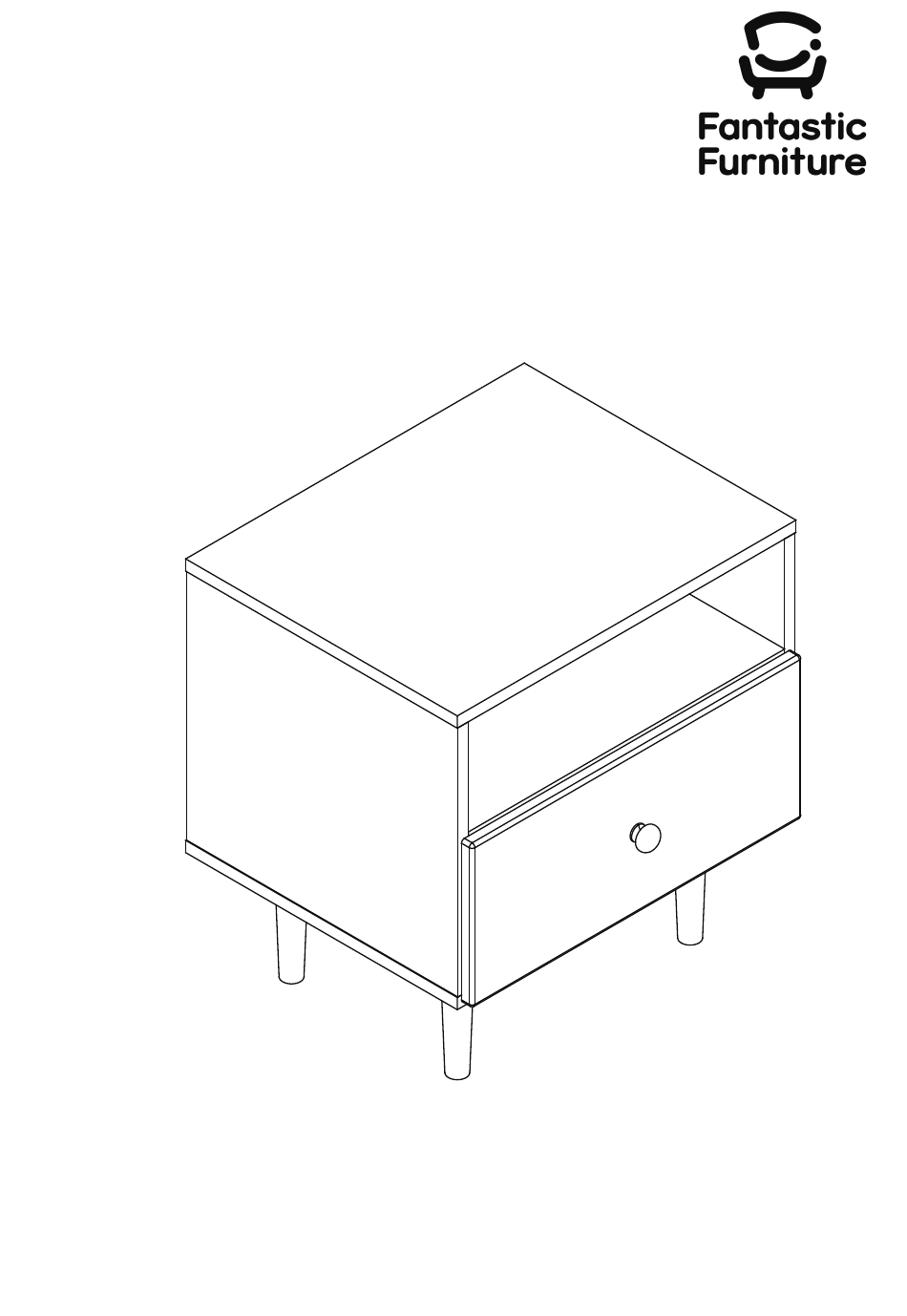

Version 1.0
Pod
Bedside 1 Drawer
fantasticfurniture.com.au

Advertisement

loading

Related Manuals for fantastic furniture Pod Bedside

Summary of Contents for fantastic furniture Pod Bedside

  • Page 1 Version 1.0 Bedside 1 Drawer fantasticfurniture.com.au...
  • Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 2 fantasticfurniture.com.au...

  • Page 3: Assembly Checklist

    Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly.

  • Page 4: What You Need

    What you need to assemble the product Top Panel (P1) Back Panel DO NOT USE Right Side (P5) Panel (P4) Other tools you need: Phillips head screwdriver; Shelf Panel Hammer (P6) Left Side Panel (P3) Bottom Panel (P2) Parts list Top Panel (P1);...
  • Page 5 Step 1 You will need 4 x Cam Bolts Phillips Head (H3) Screwdriver (P1) Attach 4 x Cam Bolts (H3) to Top Panel (P1) by tightening with the Phillips Head Screwdriver. Step 2 You will need 6 x Small 1 x CL Runner Screws (H5) Track (H6) (P4)
  • Page 6 Step 3 You will need Phillips Head 4 x Cam Bolts Screwdriver (H3) (P4) (P3) Attach 4 x Cam Bolts (H3) to Left & Right Side Panels (P3 & P4) by tightening with the Phillips Head Screwdriver. Step 4 (P3) You will need 4 x Dowels 4 x Cam Nuts...
  • Page 7 Step 5 (P3) You will need 4 x Dowels 4 x Cam Nuts (H1) (H4) (P4) Phillips Head Screwdriver (P1) Insert 4 x Dowels (H1) into Top Panel (P1). Insert 4 x Cam Nuts (H4) into Left & Right Side Panels (P3 &...
  • Page 8 Step 7 You will need (P2) 4 x Dowels 4 x Long (H1) Screws (H2) (P3) Phillips Head Screwdriver Insert 4 x Dowels (H1) into Left & Right Side (P4) Panels (P3 & P4). Attach Bottom Panel (P2) to Left & Right Side Panels (P3 &...
  • Page 9 Step 9 You will need 4 x Cam Bolts Phillips Head (H3) Screwdriver (P8) Attach 4 x Cam Bolts (H3) to Drawer Front Panel (P8) by tightening with the Phillips Head Screwdriver. Step 10 (P10) You will need 4 x Long Phillips Head Screws (H2) Screwdriver...
  • Page 10 Step 12 (P8) You will need 4 x Cam Nuts Phillips Head (H4) Screwdriver This is how a cam nut works..(P10) (P11) The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
  • Page 11 Step 14 You will need 1 x Handle 1 x Handle Screw (H11) (H10) Phillips Head Screwdriver (P8) Attach 1 x Handle (H10) to Drawer Front (P8) with 1 x Handle Screw (H11) by tightening with the Phillips Head Screwdriver. Step 15 Insert the assembled drawer into the corresponding compartment as shown.

  • Page 12: Job Complete

    Step 16 You will need 4 x Wedges 4 x Wedge (H15) Screws (H16) (P5) Phillips Head Screwdriver Secure Back Panel (P5) in place with 4 x Wedges (H15) using 4 x Wedge Screws (H16) by tightening with the Phillips Head Screwdriver. wall Step 17 You will need...
