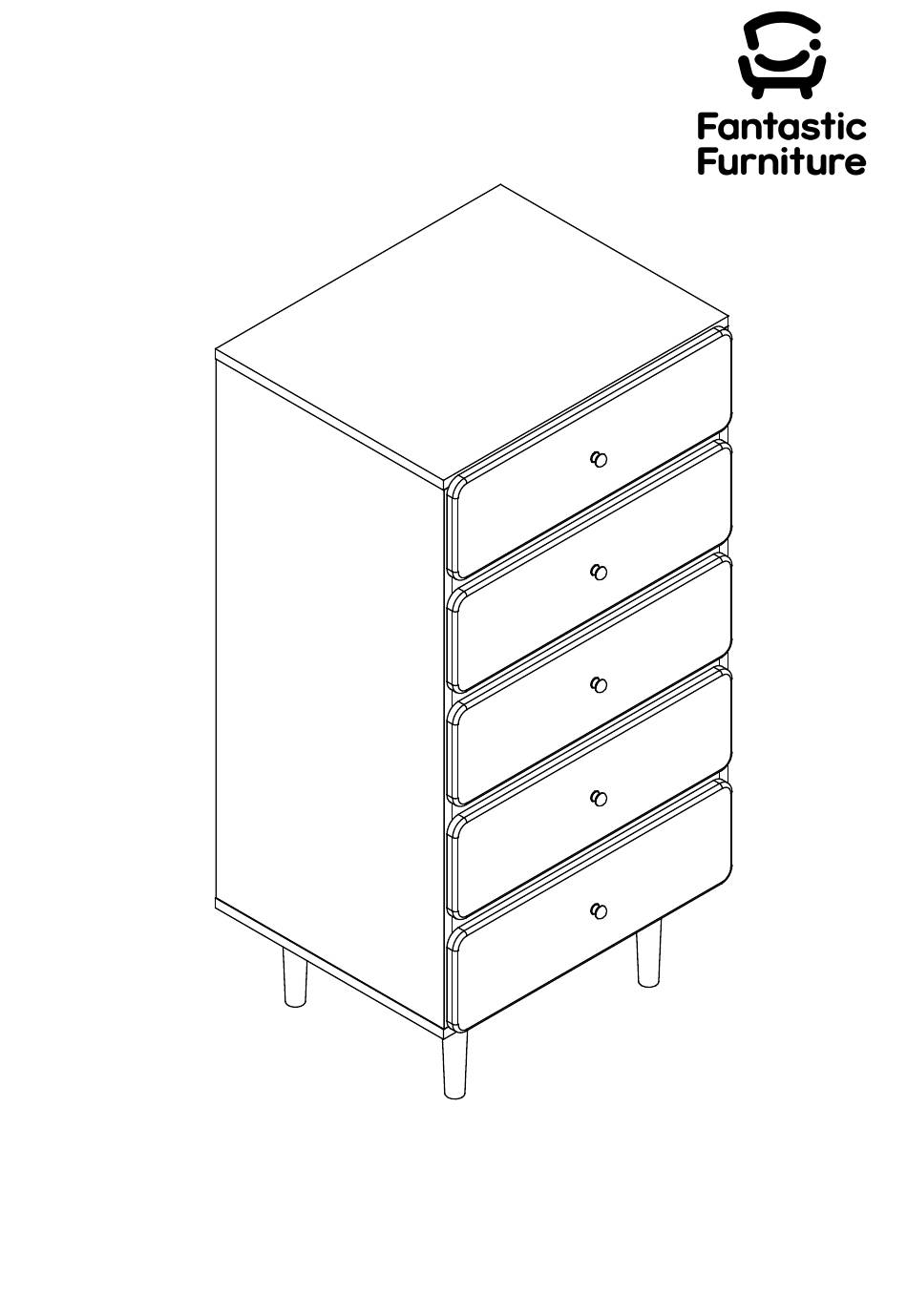

- Page 1 Version 1.0 Tallboy 5 Drw fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 2...
-
Page 3: Assembly Checklist
Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly. -
Page 4: What You Need
What you need Top Panel (P1) to assemble the product Right Side Rail Panel (P6) Back Panel (P4) (P5) Rail DO NOT USE (P7) Other tools you need: Phillips head screwdriver; Rail Rail (P6) (P8) Back Panel Rail Left Side (P5) (P7) Panel... - Page 5 Step 1 You will need 4 x Cam Bolts Phillips Head (H3) Screwdriver (P1) Attach 4 x Cam Bolts (H3) to Top Panel (P1) by tightening with the Phillips Head Screwdriver. Step 2 You will need 30 x Small 5 x CL Runner Screws (H5) Tracks (H6) 5 x CR Runner...
- Page 6 Step 3 You will need Phillips Head 8 x Cam Bolts Screwdriver (H3) (P3) (P4) Attach 8 x Cam Bolts (H3) to Left & Right Side Panel (P3 & P4) by tightening with the Phillips Head Screwdriver. Step 4 (P8) (P6) You will need (P7)
- Page 7 Step 5 You will need (P4) 6 x Dowels 4 x Cam Nuts (H1) (H4) Phillips Head (P6) Screwdriver (P8) (P7) (P6) (P7) Insert 4 x Cam Nuts (H4) into Rails (P8 & P6 x 2 ). Insert 6 x Dowels (H1) into Rails (P6 x 2 &...
- Page 8 Step 7 You will need (P2) 4 x Dowels 4 x Long (H1) Screws (H2) (P3) Phillips Head Screwdriver (P4) Insert 4 x Dowels (H1) into Left & Right Side Panel (P3 & P4). Attach Bottom Panel (P2) to Left & Right Side Panel (P3 & P4) with 4 x Long Screws (H2) by tightening with the Phillips Head Screwdriver.
- Page 9 (P5) Step 9 (P4) (P3) Gently stand the unit upright. Slide Back Panels (P5) into the grooves of Left & Right Side Panel (P3 & P4). Step 10 (P1) You will need 4 x Dowels 4 x Cam Nuts (P4) (H1) (H4) (P3)
- Page 10 Step 11 You will need 20 x Cam Bolts Phillips Head (H3) Screwdriver (P10) Attach 20 x Cam Bolts (H3) to Drawer Front (P10 x 5) by tightening with the Phillips Head Screwdriver. Step 12 You will need (P11) 20 x Cam Nuts Phillips Head (H4) Screwdriver...
- Page 11 Step 13 (P13) (P11) (P12) Slide the Drawer Bases (P13 x 5) into the grooves of Left & Right Drawer Sides (P11 x 5 & P12 x 5) as shown. Step 14 You will need (P14) 20 x Long Phillips Head Screws (H2) Screwdriver (P11)
- Page 12 Step 15 (P12) You will need 5 x DL 5 x DR Runners (H8) Runners (H9) (P11) Phillips Head 20 x Small Screwdriver Screws (H5) Attach 5 x DL Runners (H8) to the bottom of Left Drawer Side (P11 x 5) and 5 x DR Runner (H9) to the bottom of Right Drawer Side (P12 x 5) with 20 x Small Screws (H5) by tightening with the Phillips Head Screwdriver.
- Page 13 Step 17 Insert the assembled drawers into the corresponding compartments as shown. Ensure the drawers slide easily along the rails. Step 18 You will need (P1) 8 x Wedges 8 x Wedge (H15) Screws (H16) (P5) Phillips Head Screwdriver (P5) Secure Back Panels (P5 x 2) in place with 8 x Wedges (H15) using 8 x Wedge Screws (H16) by tightening with the Phillips Head Screwdriver.
-
Page 14: Job Complete
Step 19 wall You will need Screw 2 x Washers Phillips Head (H17) Screwdriver Screw and Wall Plug are not provided. Please use appropriate fixtures for your wall. Seek advice from a qualified trades person on how to attach this safety strap to your specific wall.
