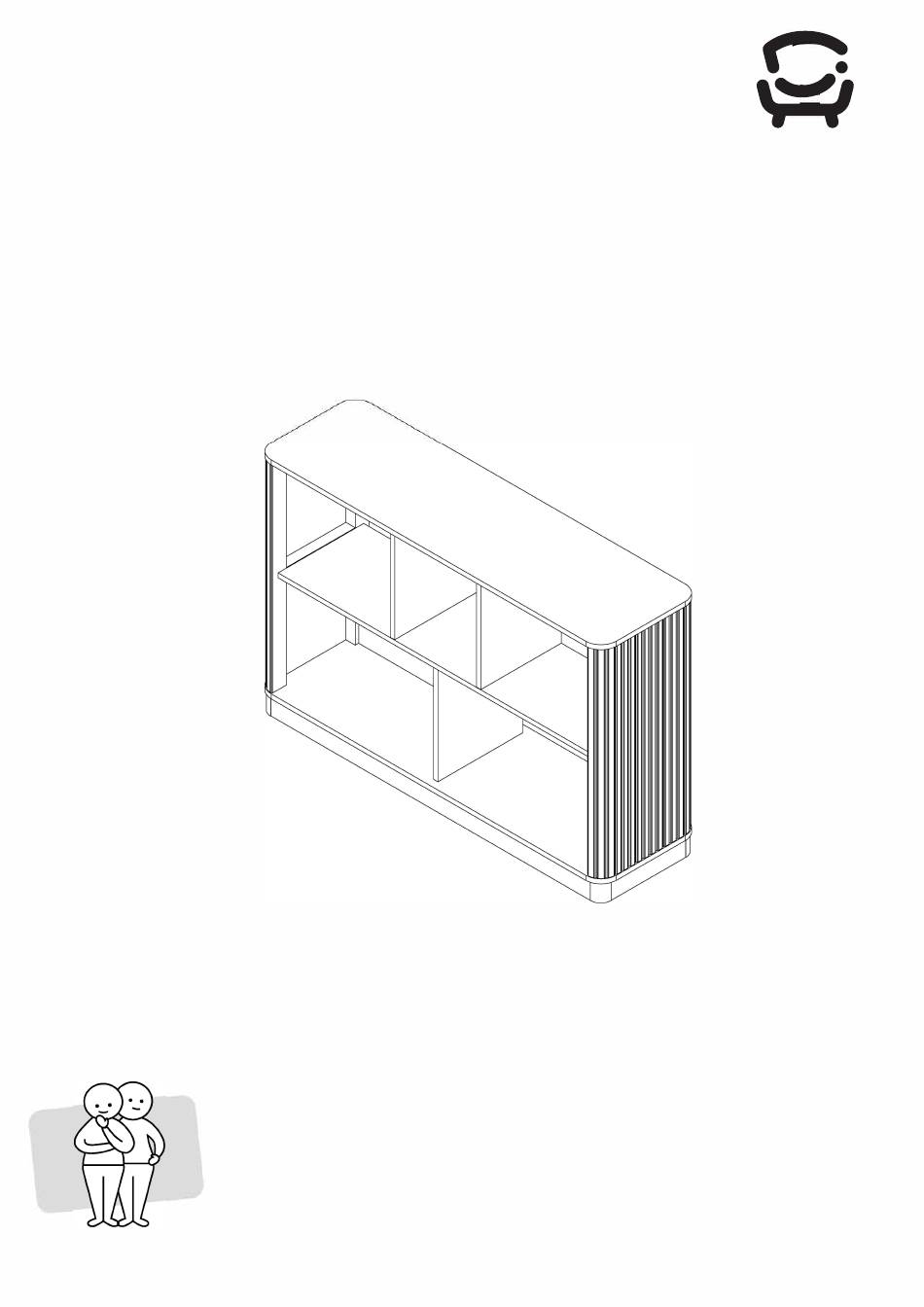

- Page 1 Fantastic Furniture Version 1.0 Two People Piera Bookcase Lowline www.fantasticfurniture.com.au Required CA3346F061 0J00-01...
- Page 2 Secure Reduce the risk of furniture tip-over accidents WARNING: ENSURE THE WALL BRACKET IS ATTACHED TO AVOID SERIOUS INJURY OR DEATH. To avoid any serious or fatal injury, a wall bracket has been provided with this product to prevent toppling. We strongly recommend that this product is permanently fixed to the wall or other suitable surface.
- Page 3 We're thrilled you've chosen Fantastic Furniture to help create a home you'll love Fantastic Furniture Love it? Share it! Fantastic buy! Share how it looks at home for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture -" Fantastic Furniture www.fantasticfurniture.com.au...
-
Page 4: Assembly Checklist
Assembly Checklist Read through the instructions Make sure you have all the required tools. carefully before you begin. Never use power tools unless instructed. Identify and lay out all of the Unless instructed, do not fully tighten components before you begin assembly. screws until the item is fully assembled. -
Page 5: What You Need
What You Need Parts List Carton 1: 2 x Side Panels (P1) to assemble the product Top Panel (P2) Bottom Panel (P3) Shelf Panel (P4) 3 x Divider Panels (P5) Top Back Panel (P6) Bottom Back Panel (P7) DO NOT USE 2 x Side Rail Panels (PB) 2 x Rail Panels (P9) Other Tools You Need... -
Page 6: Hardware Pack
Hardware Pack � � 33 x 10 x Washers Large Small Large Medium (H 3 ) Dowels Dowels Screws Screws (H4) (HS) (H2) (H1) (JD===> � � � 1 x Allen 24 x 24 x Key (H10) Wall Foot Bracke Glides Bolts Nuts... - Page 7 Step1 You will need � 8 x Small Dowels (H4) Q� � Dowels (H5) ,�, Insert 8 x small dowels (H4) into the top back panel (P6) and bottom back panel (P7). � Insert 33 x large dowels (H5) into the 2 x side panels (P1), shelf panel (P4), 3 x divider Fantastic panels (P5), 2 x side rail panels (PB) and 2 x rail panels (P9).
- Page 8 Step2 You will need � � �H6 24 x Cam Bolts (H6) � @ Phillips Head Screwdriver � � � H6 � � � ,�, Secure 24 x cam bolts (H6) into the 2 x side panels (P1), top panel (P2), bottom �...
- Page 9 Cl o Step3 You will need � Large Screws (H2) (� Allen Key (H10) Two People Note: Make sure these two holes at right position Required Secure the 2 x divider panels (P5) to the shelf panel (P4) with 4 x screws (H2), tightening with the allen key (H10).
- Page 10 Steps This is how a cam nut works ... You will need � 4 x Cam Nuts (H7) The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut �@ so it tightens over the bolt.
- Page 11 Step6 You will need 6 x Large Screws (H2) Allen Key (H10) Two People Required ,�, Attach bottom back panel (P7) to shelf panel (P4). � Secure the bottom panel (P3) to the 2 x side panels (P1), bottom back panel (P7) and with Fantastic screws (H2), tightening with the allen key (H10).
- Page 12 Step7 This is how a cam nut works ... You will need � 4 x Cam Nuts (H7) The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut �@ so it tightens over the bolt.
- Page 13 Steps This is how a cam nut works ... You will need 6 x Cam Nuts (H7) The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt. Phillips Head Screwdriver Two People...
- Page 14 Step9 You will need 6 x Foot Glides (HS) Hammer ,�, � Secure 6 x foot glides (H8) on the bottom of 2 x side rail panels (PB) Fantastic and 2 x rail panels (P9) using a hammer as shown. Furniture www.fantasticfurniture.com.au Page14...
- Page 15 Step 10 ,�, � Fantastic Attach top back panel (P6) by aligning holes and slotting it into shelf panel (P4). Furniture Page15 www.fantasticfurniture.com.au...
- Page 16 Step 11 This is how a cam nut works ... You will need � 8 x Cam Nuts (H7) The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut �@ so it tightens over the bolt.
- Page 17 Step 12 You will need ► � 1 x Wall 1 x Medium Screw Bracket (H1) (H9) i� �@ 1 x Washer Phillips Head Screwdriver (H3) 9/ <·· · l�j <tf;,� H3� ,�, � Secure wall bracket (H9) to the back bottom of top panel (P2) using washer (H3) and screw Fantastic (H1), tightening with a phillips head screwdriver.
- Page 18 Step 13 You will need Wall �J 1 x Washer (H3) Screws and wall plugs are not provided, �@ please use appropriate fixtures for your wall. Phillips Head Screwdriver Two People Required ,�, � With assistance, move the robe to its final position. Seek advice from a qualified Fantastic tradesperson on how attach this to your specific wall.
-
Page 19: Job Complete
Step 14 Job Complete! In the interest of our environment please dispose of all packaging thoughtfully. ,�, � Fantastic Furniture www.fantasticfurniture.com.au Page19...
