Summary of Contents for fantastic furniture PARIS

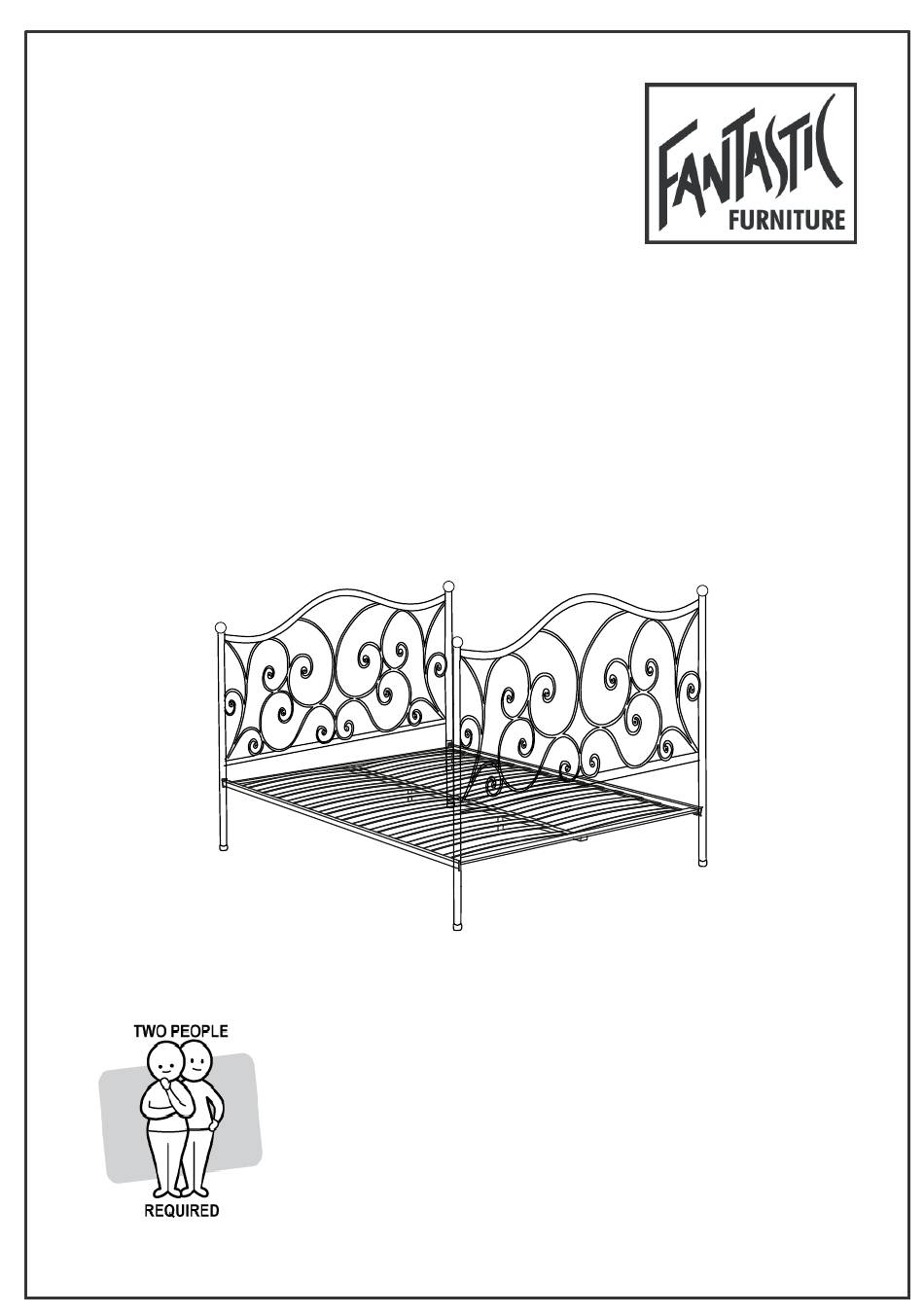

  • Page 1 14/04/2015 Version 1.0 PARIS BED DOUBLE www.fantasticfurniture.com.au...
  • Page 2 Enjoy Your purchase from Australia’s Best Value Furniture Store www.fantasticfurniture.com.au PAGE 2...
  • Page 3: Assembly Checklist

    Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten screws Identify and lay out all of the components until the item is fully assembled. before you begin assembly.
  • Page 4: What You Need

    What you need to assemble the product ALLEN KEY Other tools you need Flat head screwdriver; Phillips head screwdriver; Mallet Parts list Box 1: HEAD BOARD(P1); FOOT BOARD(P2); 2 X SUPPORT LEG(P6) Box 2: 2 X SIDE RAIL(P3); CENTER RAIL(P5); 2 X SUPPORT RAIL(P4);...
  • Page 5 14/04/2015 Step 1 You will need 8 x SCREW M6X25MM (H3) ALLEN KEY P2/P1 Attach the Side Rail (P3) to the Headboard (P1) and the Footboard (P2) by using 8 x Screws (H3), don’t fully tighten screws until step 4. Step 2 You will need 4 x SCREW...
  • Page 6 14/04/2015 Step 3 2 x SCREW M6X25MM(H3) 2x ADJUSTABLE FOOTS (H1) Attach Adjustable foot (H9) to Support Leg (P6). Attach 2 Support Leg (P6) to Center Rail (P5) by using 2 x screws (H1). Step 4 You will need 2 x JCN NUT M6X20MM(H2) 2 x SCREW M6X25MM(H3)
  • Page 7 14/04/2015 Step 5 You will need 13 x CENTER SLAT STOPPER(H5) 26 x SIDE SLAT STOPPER(H6) Push the 2 side Slat Stopper (H6) firmly onto 2 Spring Slats (P 7), and then push a Center Slat Stopper (H5) firmly together. Place the slat into the side rails (P3) and Center Rail (P5) in position, then push down on the center of the slat to flatten out the slat, make sure the plastic prong lines up with the hole and then push firmly.
  • Page 8: Job Complete

    14/04/2015 You will need Step 6 4 x FINIAL (H7) 4 x BOLTS (H8) Short end face bottom P1/P2 ALLEN KEY Attach 4 x Bolts (H8) to Headboard (P1) and Footboard (P2) post using Allen Key as per shown. Then attach 4 x Finials (H7) to Bolts. Job Complete! In the interest of our environment please dispose of all packaging thoughtfully...
