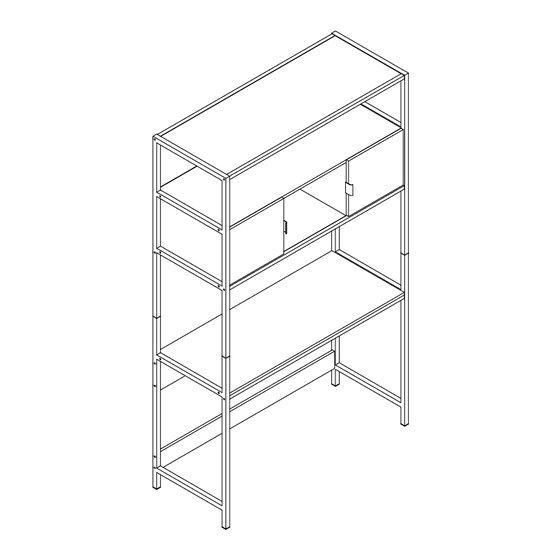

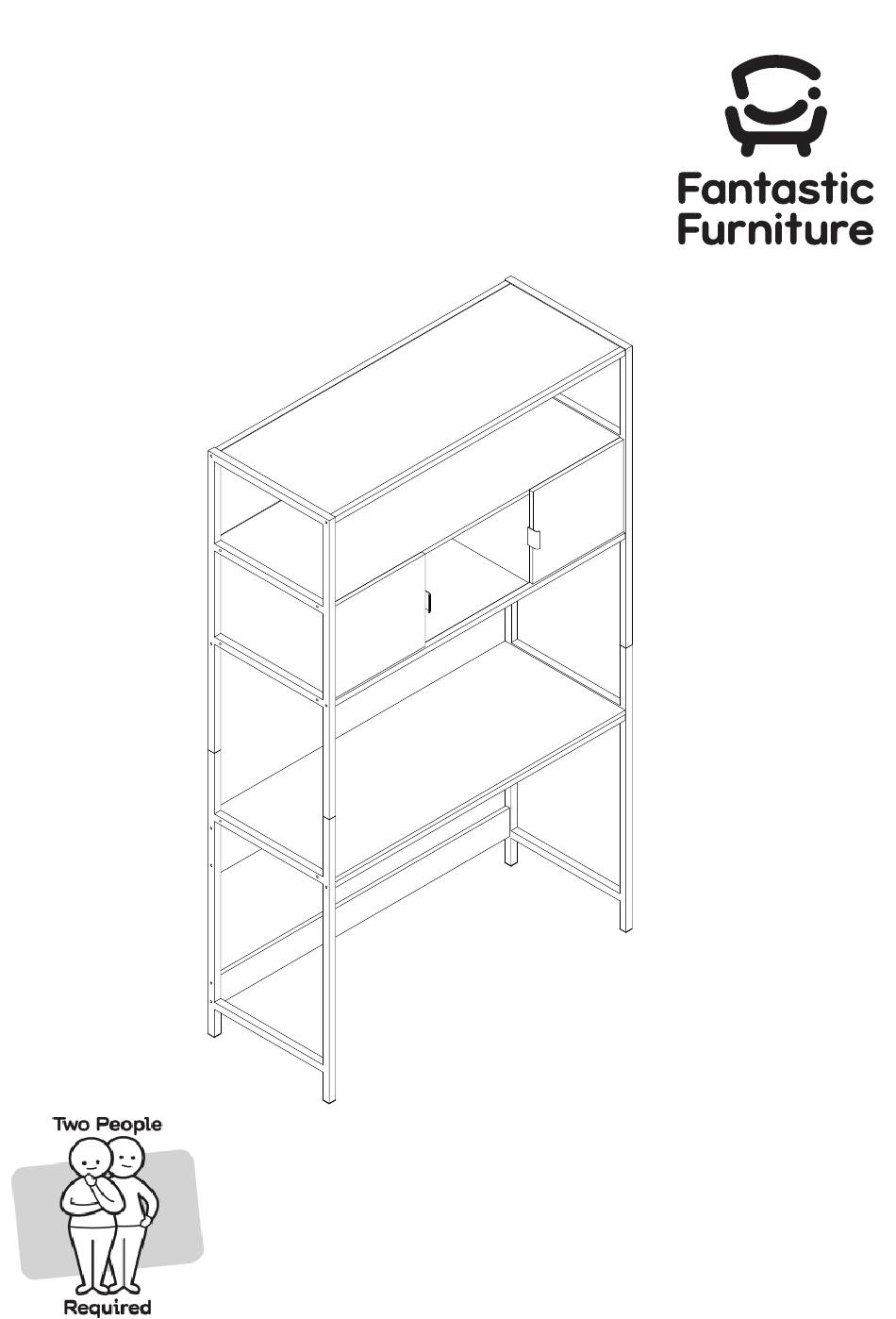

- Page 1 Version 1.0 Pasadena Bookcase Desk Oak fantasticfurniture.com.au...
- Page 2 Secure it! Reduce the risk of furniture tip-over accidents WARNING: ENSURE THE WALL STRAP IS ATTACHED TO AVOID SERIOUS INJURY OR DEATH. To avoid any serious or fatal injury, a wall strap has been provided with this product to prevent toppling. We strongly recommend that this product is permanently fixed to the wall or other suitable surface.
- Page 3 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 3...
-
Page 4: Assembly Checklist
Assembly Checklist Read through the instructions Make sure you have all the required tools. Never use power tools unless instructed. carefully before you begin. Unless instructed, do not fully tighten Identify and lay out all of the components before you begin assembly. screw s until the item is fully assembled. -
Page 5: What You Need
What You Need to assemble the product Other tools you need Back Panel Top Panel Phillips Head Screwdriver;Hammer. Top Side Frame (P10) (P3) (P1) Right Side Panel (P9) Top Side Frame Box 1: (P1) 2 x Top Side Frames (P1) Right Middle Panel Cabinet Top Panel (P8) - Page 6 Step 1 You will need (H3) (H3) (H12) (H3) (H12) (H12) (H3) Allen Key Phillips Head ewdriver (H17) (H3) (H12) (H12) (H12) Countersink face up Attach 1 x Steel Bar (P12) to the Cabinet Bottom Panel (P5) with 4 x Screws (H12), tightening with the Phillips Head Screwdriver.
- Page 7 Step 3 You will need (P9) (H6) 8 x Cam Nuts (H8) (H6) (P8) (H6) (P7) Phillips Head (H6) Screwdriver (H8) (P4) (H6) (P6) (H6) (H8) (H8) (H8) This side has raw edge (H8) Insert 8 x Dowels (H8) into the Cabinet Top Panel (P4). Insert 8 x Cam Nuts (H6) into Panels ( P6,P7,P8 &...
- Page 8 Step 5 You will need Countersink face up (H12) (H12) (H12) 4 x Screws (H12) (H7) (P12) (H7) (H7) Phillips Head (P14) (H12) Screwdriver (H7) (H7) (H7) Attach 1 x Steel Bar (P12) to the Desk Panel (P14) with 4 x Screws (H12), by tightening with the Phillips Head Screwdriver.
- Page 9 Step 7 (H17) You will need (H3) Allen Key 8 x Screws (H3) (H17) (H3) (H3) Attach the Top Side Frame (P1) to the Lower Side Frame (P2) with 4 x Screws (H3), tightening with Allen Key (H17). Repeat from remaining frame. Step 8 Raw edge face up You will need...
- Page 10 Step 9 You will need 2 x Screws 1 x Screws (H1) (H2) 2 x Screws 2 x Nuts (H4) (H5) (H5) (H5) (H1) (H4) (H1) Opening of nut Allen Key face incoming (H5) screw (H17) (H4) Insert 2 x Nuts (H5) into (H2) (P2) (H4)
- Page 11 Step 11 (H14) You will need (P10) (H14) 20 x Nails (P5) (P4) (H14) (H14) (P10) (P10) (H14) (H14) (P5) (P9) Attach the Back Panel (P10) to Panels (P4, P5, P6 & P9) with 20 x Nails (H14) using a Hammer. Step 12 You will need 4 x Screws...
- Page 12 Step 13 You will need 4 x Hinges (H13) (H9) Phillips Head Screwdriver (P11) Attach the 4 x Hinges (H9) to the 2 x Doors (P11) with 8 x Screws (H13), by tightening with the Phillips Head Screwdriver. Step 14 (P9) You will need (P11)
- Page 13 Step 15 Hinge Adjustment Options Front-to-back by Lateral adjustment Vertical adjustment via slackening the by screw adjustment mounting plate (via slots or, hinge-arm if in two pieces,by screws) mounting screw Step 16 You will need 2 x Washers (H16) (H16) Seek advice from a qualified trades person on how to attach this safety strap to...
-
Page 14: Job Complete
Job Complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 14...
