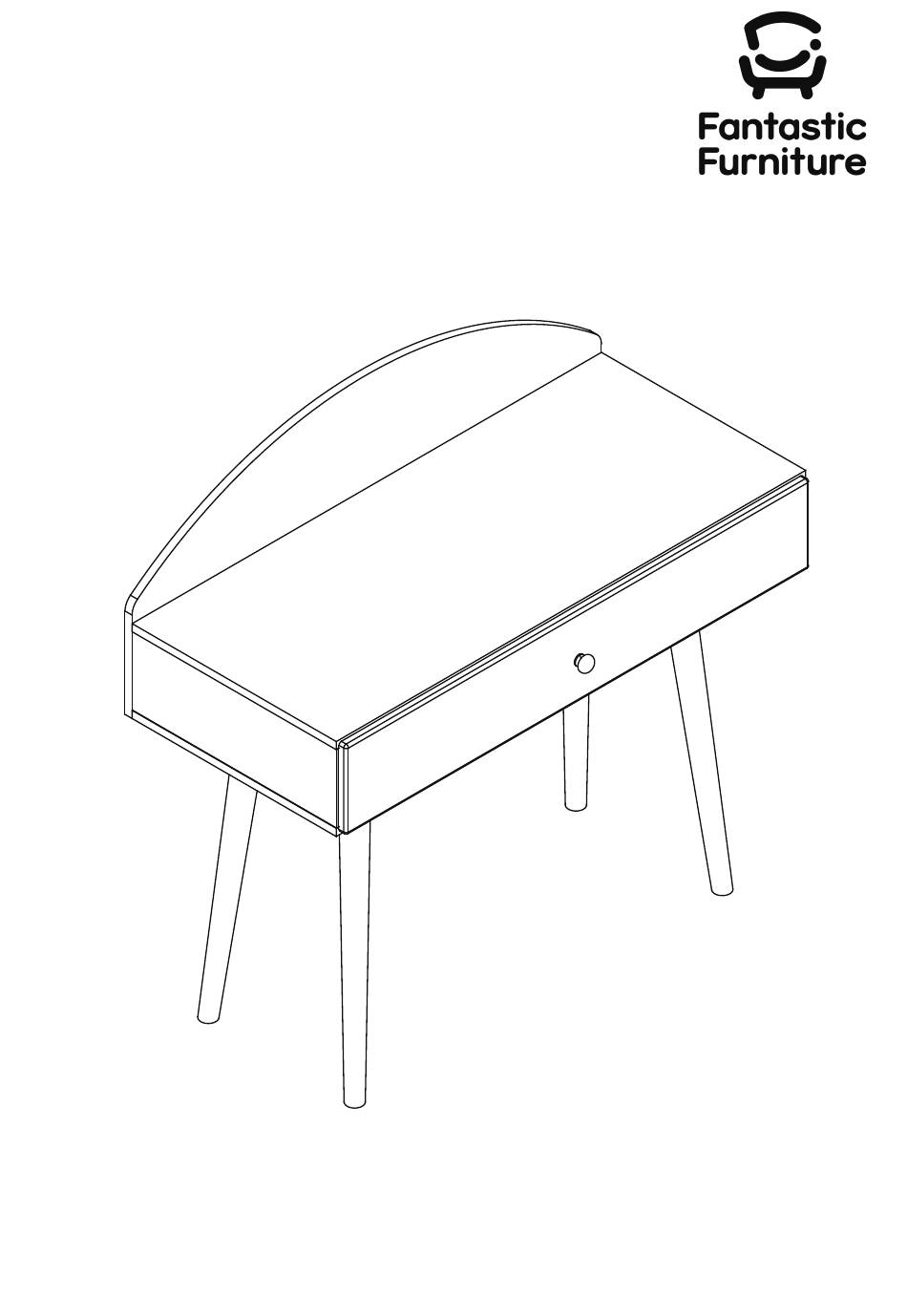

- Page 1 Version 1.0 Desk 1 Drawer fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 2 fantasticfurniture.com.au...
-
Page 3: Assembly Checklist
Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly. -
Page 4: What You Need
Back Panel What you need (P5) to assemble the product Right Side Panel Top Panel (P4) (P1) DO NOT USE Rail (P6) Other tools you need: Phillips head screwdriver; Left Side Panel (P3) (P7) Bottom Panel Parts list (P2) Top Panel (P1); Bottom Panel (P2): Left Side Panel (P3);... - Page 5 Step 1 You will need 4 x Cam Bolts 3 x Long (H3) Bolts (H13) (P1) (P6) 1 x Allen Key Phillips head (H16) screwdriver (P6) (P1) Attach 4 x Cam Bolts (H3) to Top Panel (P1) by tightening with the Phillips Head Screwdriver. Attach Rail (P6) to Top Panel (P1) with 3 x Long Bolts (H13) by tightening with the Allen Key (H16).
- Page 6 Step 3 (P3) You will need 4 x Dowels 4 x Cam Nuts (H1) (H4) (P4) Phillips Head Screwdriver This is how a cam nut works..(P1) The head of the cam bolt goes into the open mouth of the cam nut.
- Page 7 (P7) Step 5 (P7) You will need (P7) 16 x Short 1 x Allen Key Bolts (H12) (H14) (P7) (P2) Attach 4 x legs (P7) to Bottom Panel (P2) with 16 x Short Bolts (H12) by tightening with the Allen Key (H14). Step 6 You will need 5 x Cam Bolts...
- Page 8 Step 7 You will need (P10) 5 x Long Phillips Head Screws (H2) Screwdriver (P13) (P9) (P12) Attach Drawer Back (P12) and Support Rail (P13) to Left & Right Drawer Side (P9 & P10) with 5 x Long Screws (H2) by tightening with the Phillips Head Screwdriver. Step 8 (P10) (P11)
- Page 9 Step 9 (P8) You will need (P10) (P13) 5 x Cam Nuts Phillips head (H4) screwdriver (P11) This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so (P9) it tightens over the...
- Page 10 Step 11 You will need 1 x Handle 1 x Handle Screw (H11) (H10) Phillips head screwdriver (P8) Attach 1 x Handle (H10) to Drawer Front (P8) with 1 x Handle Screw (H11) by tightening with the Phillips Head Screwdriver. Step 12 Insert the assembled drawer into the corresponding compartment as shown.
- Page 11 Step 13 You will need (P1) 4 x Dowels 6 x Long (H1) Screws (H2) (P5) (P2) Phillips Head Screwdriver Insert 4 x Dowels (H1) into Top & Bottom Panels (P1 & P2). Attach Back Panel (P5) to Top & Bottom Panels (P1 & P2) with 6 x Long Screws (H2) by tightening with the Phillips Head Screwdriver.
-
Page 12: Job Complete
Job Complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 13...
