Summary of Contents for Perfect Aire 5PAC6000

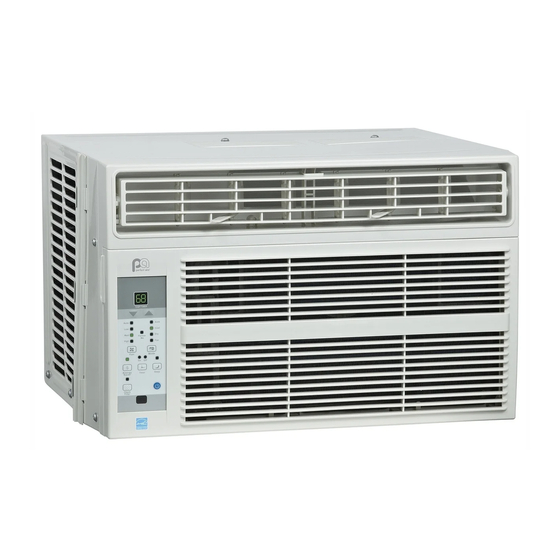

- Page 1 WINDOW AIR CONDITIONER USER MANUAL FOR MODEL: 5PAC6000 5PAC8000 Before using your air conditioner, please read this manual carefully and keep it for future reference, along with your receipt.
- Page 2 CONSUMER PRODUCT INFORMATION For your own records, please attach a copy of your sales receipt to this manual and complete the following: Model Number: _____________________________________ Serial Number: _______________________________________ Purchase Date: ____________________________________ Store Purchased: _____________________________________ Installation Date: ___________________________________ Installation Co.: _______________________________________ Installer Name: _____________________________________ Installer Phone No.: ___________________________________...
-
Page 3: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ..............1 IMPORTANT SAFETY INSTRUCTIONS ...........3 INSTALLATION INSTRUCTIONS .............4 NORMAL SOUNDS ................9 AIR CONDITIONER FEATURES ............9 CARE AND CLEANING ..............12 TROUBLESHOOTING ...............13 This manual provides the information needed for proper use and mainte- nance of this air conditioner. Basic preventative care can help extend the life of this unit. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS READ SAFETY PRECAUTIONS BEFORE INSTALLATION To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. THIS SYMBOL INDICATES THAT IGNORING INSTRUCTIONS MAY CAUSE DEATH OR SERIOUS INJURY. THIS SYMBOL INDICATES THAT IGNORING INSTRUCTIONS MAY CAUSE MODERATE INJURY TO YOUR PERSON, OR DAMAGE TO YOUR UNIT OR OTHER PROPERTY. - Page 5 CAUTIONS When removing air filter, DO NOT touch metal parts of Doing so may cause an injury. the unit. DO NOT clean with water. Water may enter the unit and degrade the insulation, causing an electric shock. Ensure proper ventilation, especially in rooms with a Failure to do so may result in an oxygen shortage. ...
-
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS NOTE : WARNING FOR YOUR SAFETY: Do not store or use gasoline or other flammable The power supply cord with this air vapors and liquids in the vicinity of this or any other appliances. conditioner contains a current detection device designed to reduce the risk of fire. Please refer to the section WARNING - PREVENT ACCIDENTS “Operation of Current Device” (below) for details. In the event that the power To reduce the risk of fire, electrical shock, or injury to persons when using supply cord is damaged, it cannot be your air conditioner, follow basic precautions, including the following: repaired. -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN CAUTION Read these instructions completely and carefully. DO NOT, under any circumstances, cut or remove the IMPORTANT- Save these instructions. third (ground) prong from the power cord. DO NOT change the plug on the power cord of the IMPORTANT- Observe all governing codes air conditioner. - Page 8 STEP 1: C. Align the hole in the top rail with those in the top of the unit as shown in Fig. B. PREPARE THE WINDOW FIG. B Lower sash must open sufficiently to allow a clear vertical opening of 13 inches (330 mm). Side louvers and the rear of the AC must have clear air space to allow enough airflow through the condenser for heat removal.
- Page 9 C. Once the panel has been installed on the side of B. Extend the side panels out against the window the cabinet, make sure it sits securely inside the frame (Fig. 6). frame channel by making slight adjustments. Slide the top and bottom ends of the frame into the top FIG. 6 and bottom rails of the cabinet. (Fig. 3) Top Rail Window Frame FIG.
- Page 10 C. To secure lower sash in place, attach right angle sash STEP 6.2: Mark a line on one of the provided insulation lock with 3/4″ (19 mm) or 1/2″ (12.7 mm) screw as panels, matching the measured width in Step 6.1; Cut shown (Fig. 9). the insulation panel along the line (Fig. 12). FIG. 9 FIG. 12 D. Cut window sash seal foam and insert it in the space between the upper and lower sashes (Fig.
- Page 11 STEP 7: IF AC IS BLOCKED BY A STORM WINDOW INSTALL WEATHER STRIPPING In order to minimize air leaks between the room air Add wood as shown in Fig.15, or remove storm conditioner and the window opening, install weather window before air conditioner is installed. stripping into any gaps as you see necessary by If storm window frame must remain, be sure the trimming the weather stripping to the desired length, drain holes or slots are not caulked or painted shut.
-
Page 12: Normal Sounds
NORMAL SOUNDS HIGH PITCHED CHATTER High efficiency compressors VIBRATION may have a high pitched chatter Unit may vibrate and make during the cooling cycle. noise because of poor wall or window construction or incorrect SOUND OF RUSHING AIR installation. This DOES NOT At the front of the unit, indicate a defective unit. the sound of rushing air being moved by the fan may be heard. - Page 13 SLEEP FEATURE: TO SELECT THE OPERATING MODE: Press SLEEP button to initiate the SLEEP To choose operating mode, press the MODE mode. In this mode, the selected temperature will button. Each time you press the button, a mode is increase by 2°F (1°C) 30 minutes after the mode is selected in a sequence that goes from AUTO, COOL, selected.
- Page 14 DISPLAY: AIR DIRECTIONAL LOUVERS: Shows the set temperature in °F or °C and the Auto- Use the 4-way directional louvers to direct the air flow timer settings. While on FAN only mode, it shows the up or down and left or right throughout the room as room temperature. needed. Pivot horizontal louvers until the desired up/ down direction is obtained.
-
Page 15: Care And Cleaning
CARE AND CLEANING CAUTION Clean air conditioner occasionally to keep it looking and operating like new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. AIR FILTER CLEANING The air filter should be cleaned at least every two weeks or as necessary. Trapped particles in the filter can build up and cause an accumulation of frost on the cooling coils. ● Open the front panel. ● Grasp the filter by the center and pull up and out. ● Wash the filter using liquid dish-washing detergent and warm water. Rinse filter thoroughly. ● Gently shake excess water from the filter. Be sure the filter is thoroughly dry before replacing. -
Page 16: Troubleshooting
TROUBLESHOOTING BEFORE CALLING FOR SERVICE, PLEASE REVIEW THE CHART BELOW ISSUE POSSIBLE CAUSES • Be sure unit is not too large or too small for the area of the room. • Verify that all doors, windows, curtains and any other openings are closed. Verify nothing is obstructing the front grille of unit, such as curtains, etc. • Allow enough time for room to cool, especially if outside temp is very high. • Check that the filter is not dirty and louvers are open all the way and blowing in the desired direction. AIR CONDITIONER NOT • Check that unit is set to COOL mode and that temperature is down enough (but COOLING ROOM, OR NOT BLOWING not too low). - Page 19 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details.
- Page 20 Distributed by: Perfect Aire, LLC 5401 Dansher Road Countryside, IL 60525 844-4PA-AIRE | 844-472-2473 www.perfectaire.us PA/User_5PAC6000_5PAC8000/10242019 Specification and performance data is subject to change without notice. Printed in China...
